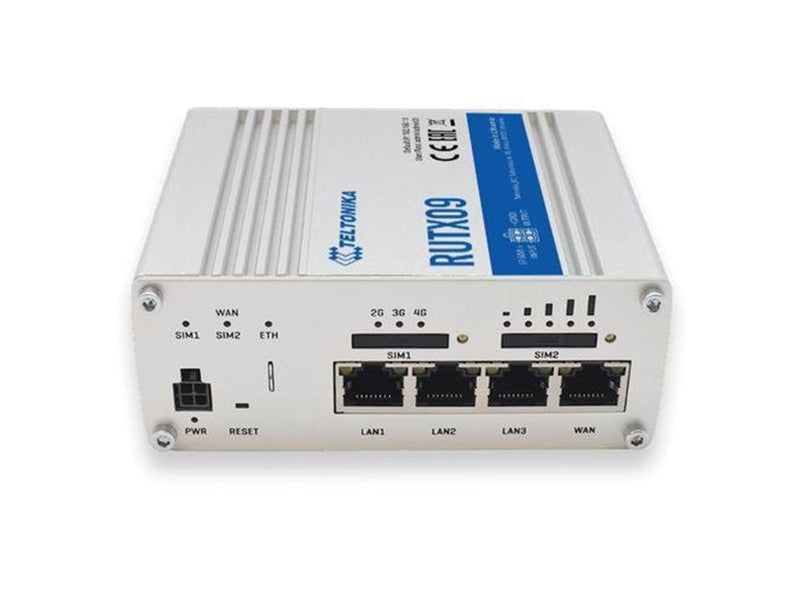

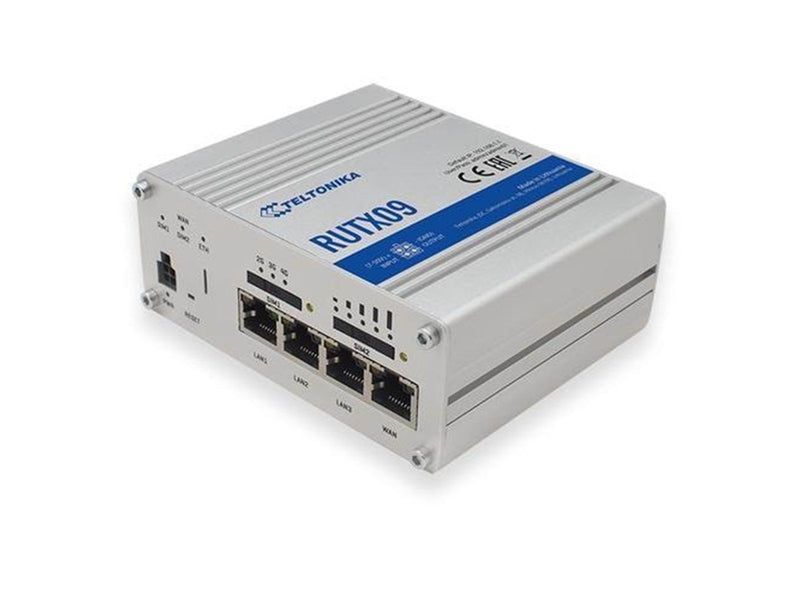

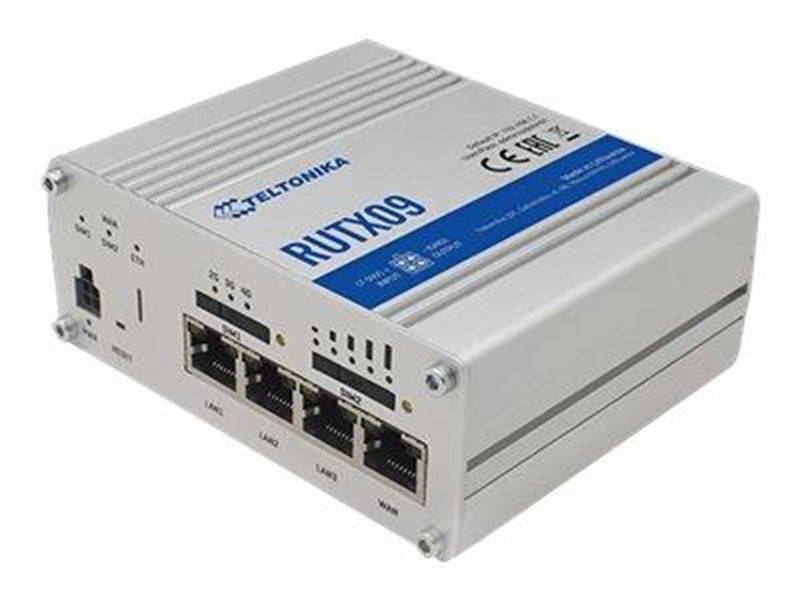

Teltonika RUTX09 - router - WWAN - DIN rail mountable - Router
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Teltonika |
| Waren-Nr.: | 3085777 |
| Modell: | RUTX09000000 |
| EAN: | 4779027312460 |
| Produktbeschreibung: | Teltonika RUTX09 - Router - WWAN - an DIN-Schiene montierbar |
| Gerätetyp: | Router - drahtloses Mobilfunkmodem - 4-Port-Switch (integriert) |
| Gehäusetyp: | An DIN-Schiene montierbar |
| Zellprotokoll: | LTE |
| WAN-Ports Anz.: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, SMTP, DHCP |
| Remoteverwaltungsprotokoll: | SNMP 2, SNMP, SNMP 3, HTTP, SSH, TR-069, JSON-RPC, Modbus, MQTT |
| Leistungsmerkmale: | NAT Support, VPN-Support, VLAN-Unterstützung, Auto-Uplink (Auto MDI/MDI-X), IGMP Snooping, Inhaltsfilterung, DiffServ-Unterstützung, MAC-Adressenfilter, IPv6-Unterstützung, FOTA, Teltonika RMS |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Stromversorgung: | DC 9 - 50 V |
| Abmessungen (Breite x Tiefe x Höhe): | 11.5 cm x 9.5 cm x 4.4 cm |
| Gewicht: | 465 g |
| Allgemein | |
| Gerätetyp: | Router - 4-Port-Switch (integriert) |
| Gehäusetyp: | An DIN-Schiene montierbar |
| Anschlusstechnik: | Kabelgebunden |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, SMTP, DHCP |
| Remoteverwaltungsprotokoll: | SNMP 2, SNMP, SNMP 3, HTTP, SSH, TR-069, JSON-RPC, Modbus, MQTT |
| Authentifizierungsmethode: | X.509-Zertifikate, Secure Shell v.2 (SSH2) |
| Leistungsmerkmale: | NAT Support, VPN-Support, VLAN-Unterstützung, Auto-Uplink (Auto MDI/MDI-X), IGMP Snooping, Inhaltsfilterung, DiffServ-Unterstützung, MAC-Adressenfilter, IPv6-Unterstützung, FOTA, Teltonika RMS |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Prozessor: | 1 x ARM Cortex-A7 717 MHz |
| RAM: | 256 MB DDR3 SDRAM |
| Flash-Speicher: | 256 MB |
| Statusanzeiger: | Stromversorgung, Signalstärke, SIM-Status, Mobilnetztyp |
| Kommunikationsformen | |
| Typ: | Drahtloses Mobilfunkmodem |
| Zellprotokoll: | LTE |
| Max. Datenübertragungsrate: | 300 Mbps |
| Erweiterung/Konnektivität | |
| Schnittstellen: | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Antenne: 2 x SMA Antenne: 1 x GPS-Anschluss |
| Erweiterungssteckplätze: | 2 (gesamt)/ 2 (frei) x SIM |
| Antenne | |
| Antenne: | Extern abnehmbar |
| Antennenzahl: | 3 |
| Stromversorgung | |
| Erforderliche Netzspannung: | DC 9 - 50 V |
| Leistungsaufnahme im Betrieb: | 11 Watt |
| Software / Systemanforderungen | |
| Bereitgestelltes Betriebssystem: | RutOS |
| Maße und Gewicht | |
| Breite: | 11.5 cm |
| Tiefe: | 9.5 cm |
| Höhe: | 4.4 cm |
| Gewicht: | 465 g |
