Shelly Pro Dimmer 2PM
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

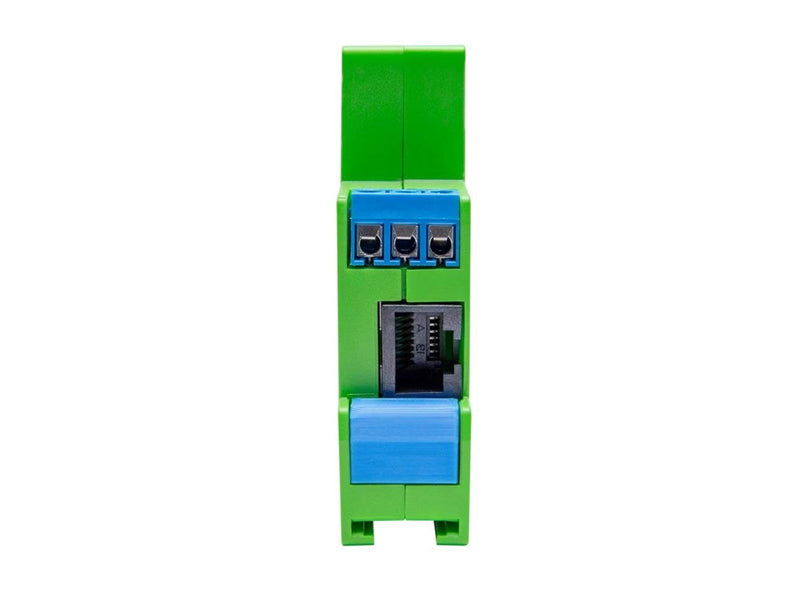

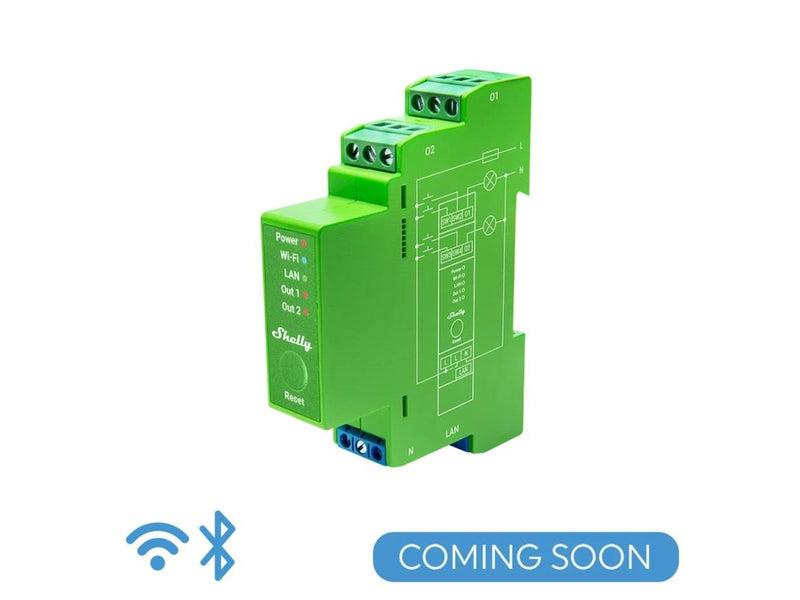

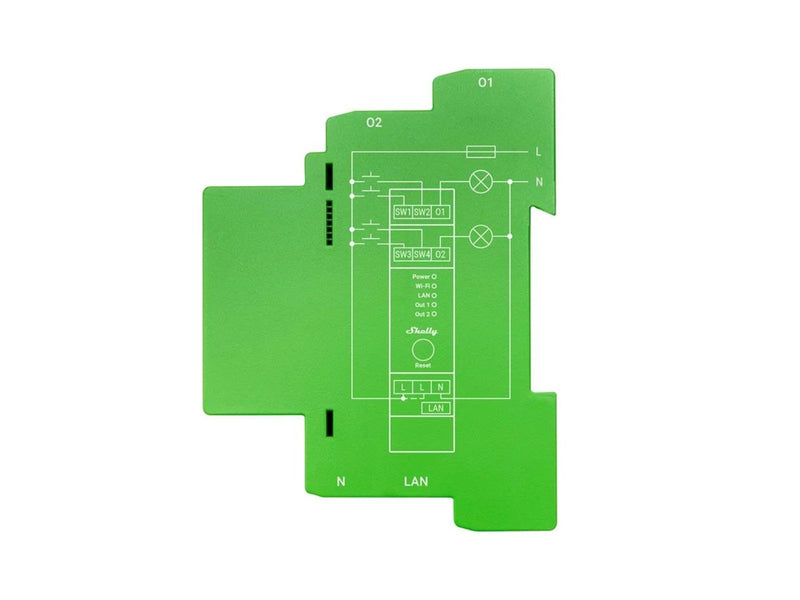

Shelly Pro Dimmer 2PM is a DIN-rail mountable, two-channel smart dimmer. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
15+ Stk.
Auf Lager - 1-3 Werktage Lieferzeit
Shelly Pro Dimmer 2PM is a DIN-rail mountable, two-channel smart dimmer. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The Device can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to a Wi-Fi router and the Internet. Shelly Pro Dimmer 2PM has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings.Main features•DIN rail mountable•Supports multiple dimming types: Supports both leading and trailing edge•Automatic calibration of dimming type and load•Switch/Button input mode: Allows flexible input control through switches or buttons.•One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration.•Night mode: Enables to set a specific brightness of input lights during nighttime.•Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.•Button fade rate: Controls how quickly the output brightness changes while holding the button(s).•Transition duration: Controls the time for dimming from 0 to 100 %.•Weekly schedules: Supports daily schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.•Auto on/off timers: Enables auto on/off timer setting.•Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.•Webhooks: Support automation through lightweight, event-driven communication with other devices.•BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.•Wi-Fi Range Extender: Retransmits the Wi-Fi signal and extends its reach.•Scripting: Allows creating automation scenarios through scripts.•Compatibility: Highly compatible with 3rd Party home automation systems.•No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.
Generell
| Hersteller | Shelly |
| Waren-Nr. | 3235812 |
| Modell | Shelly_Pro_Dimmer_2PM |
| EAN | 3800235268179 |
| Typ | Dimmer |
| LED-Lampenleistung (max.) | 200 W |
| Halogen-Lampenleistung (max.) | 100 W |
| Netzstandard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum Innenabstand | 30 m |
| Maximum Außenabstand | 50 m |
| Bauart | Eingebaut |
| Steuerung | Kabellos |
| Produktfarbe | Blau, Grün, Grau |
| Fernbedienung | Ja |
| Funkfrequenz | 2400 - 2495 MHz |
| Für die Nutzung im Innenbereich geeignet | Ja |
| Mobile App-Unterstützung | Ja |
| Helligkeitseinstellung | Ja |
| Dimmbar | Ja |
| AC Eingangsspannung | 110 - 240 V |
| AC Eingangsfrequenz | 50 / 60 Hz |
| Leistung übertragen | 1 mW |
| Stromverbrauch (Standby) | 2 W |
| Breite | 94 mm |
| Tiefe | 19 mm |
| Höhe | 69 mm |
| Gewicht | 75 g |
| Verpackungsart | Box |
| Betriebstemperatur | -20 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 30 - 70% |
Technische Daten
|
Leistungen |
|
| Typ | Dimmer |
| LED-Lampenleistung (max.) | 200 W |
| Halogen-Lampenleistung (max.) | 100 W |
| Netzstandard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum Innenabstand | 30 m |
| Maximum Außenabstand | 50 m |
|
Design |
|
| Bauart | Eingebaut |
| Steuerung | Kabellos |
| Produktfarbe | Blau, Grün, Grau |
| Fernbedienung | Ja |
| Funkfrequenz | 2400 - 2495 MHz |
| Für die Nutzung im Innenbereich geeignet | Ja |
| Mobile App-Unterstützung | Ja |
| Helligkeitseinstellung | Ja |
| Dimmbar | Ja |
|
Energie |
|
| AC Eingangsspannung | 110 - 240 V |
| AC Eingangsfrequenz | 50 / 60 Hz |
| Leistung übertragen | 1 mW |
| Stromverbrauch (Standby) | 2 W |
|
Gewicht und Abmessungen |
|
| Breite | 94 mm |
| Tiefe | 19 mm |
| Höhe | 69 mm |
| Gewicht | 75 g |
|
Verpackungsdaten |
|
| Verpackungsart | Box |
|
Betriebsbedingungen |
|
| Betriebstemperatur | -20 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 30 - 70% |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
