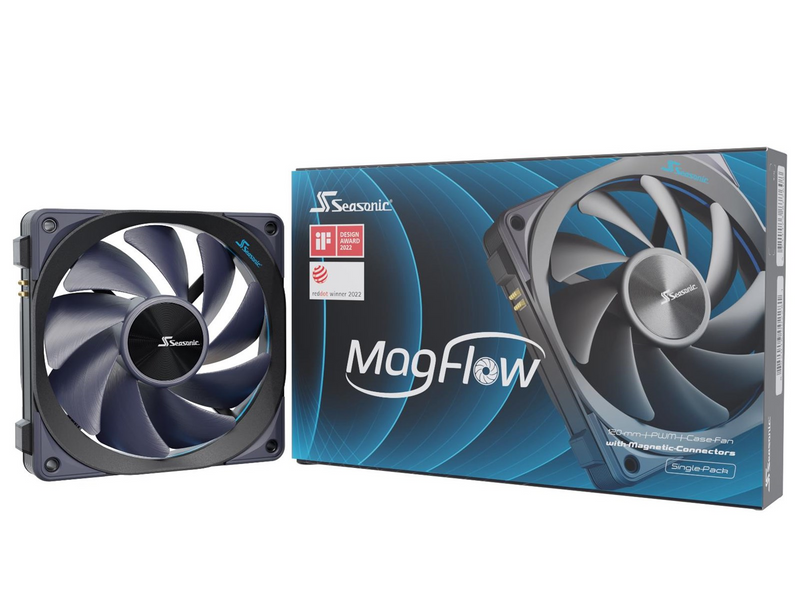

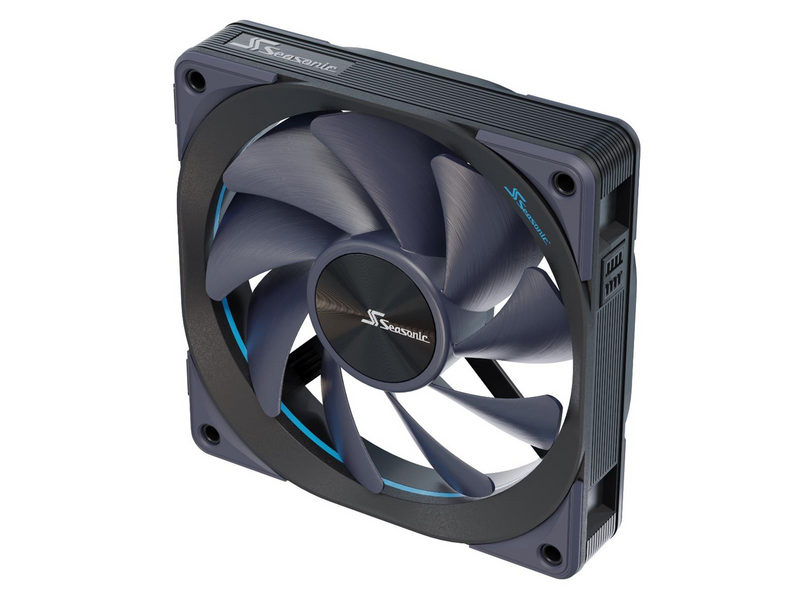

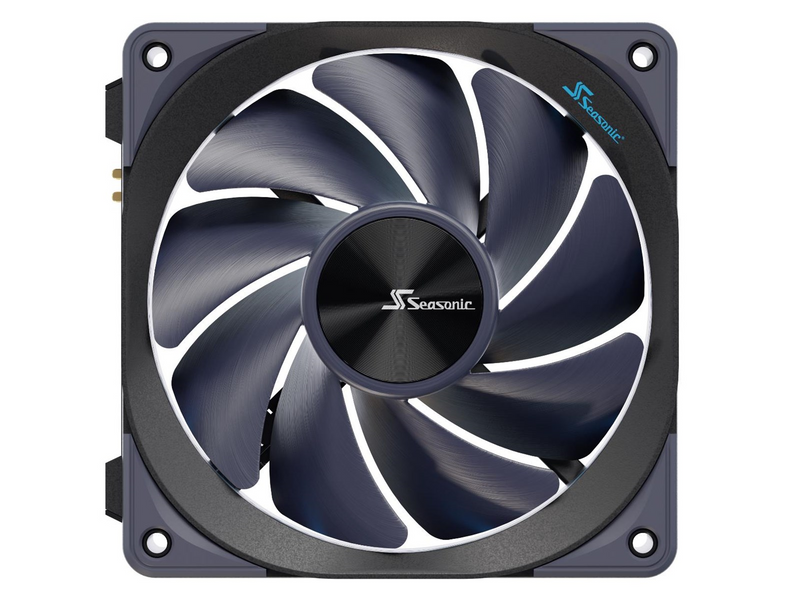

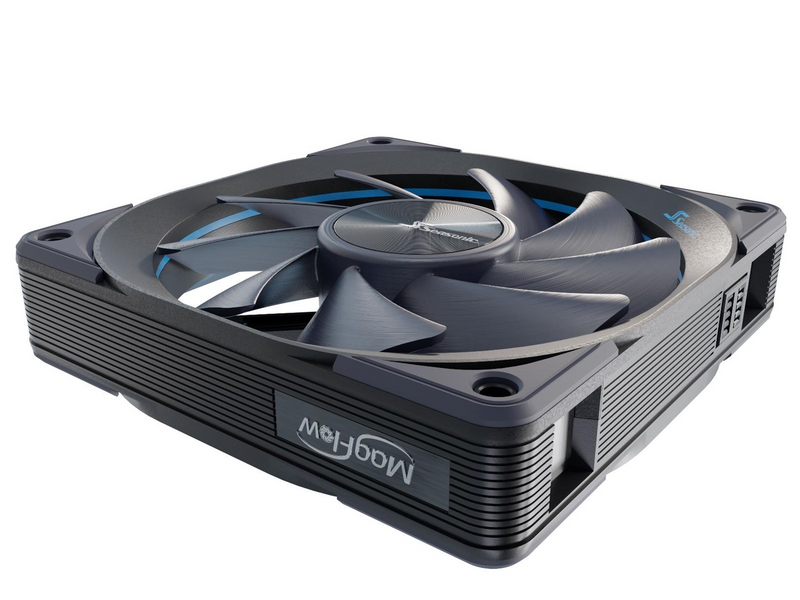

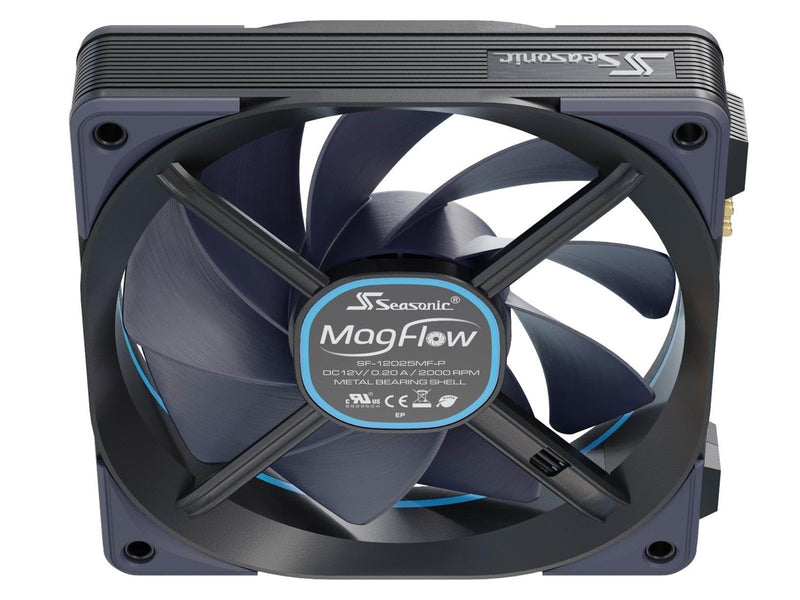

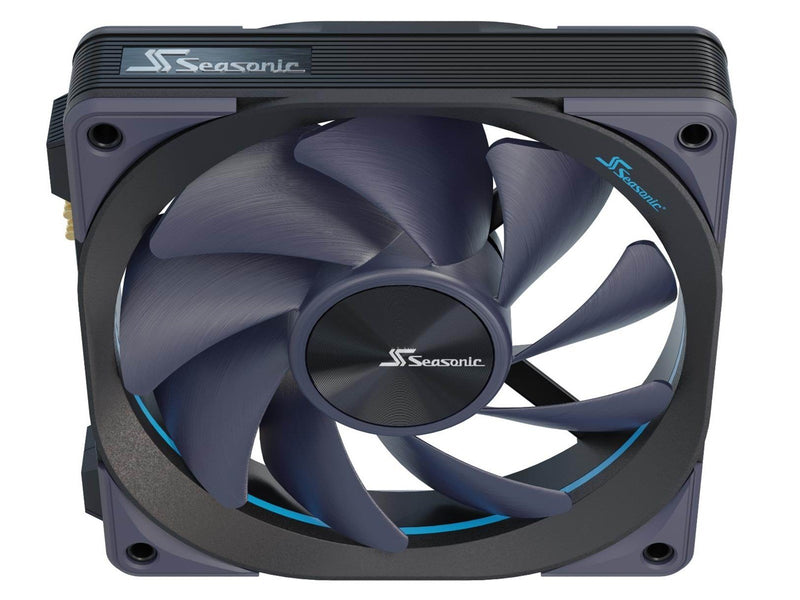

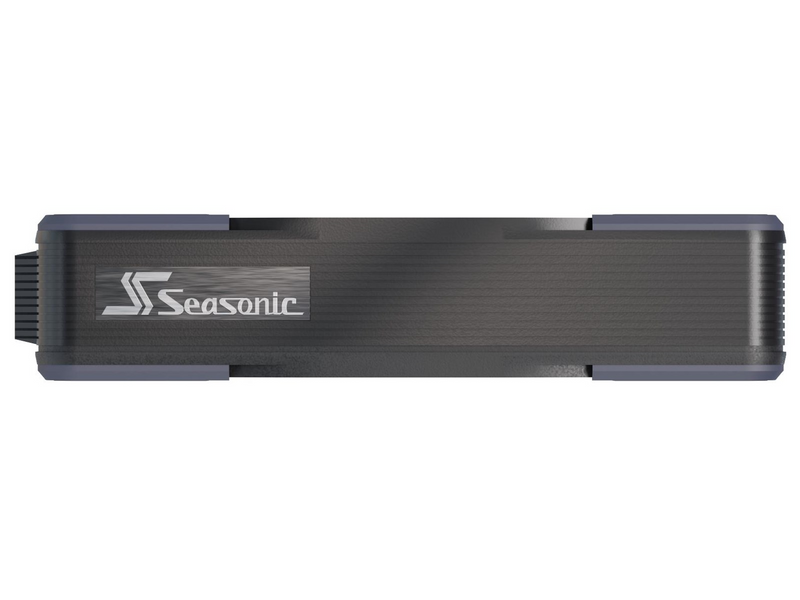

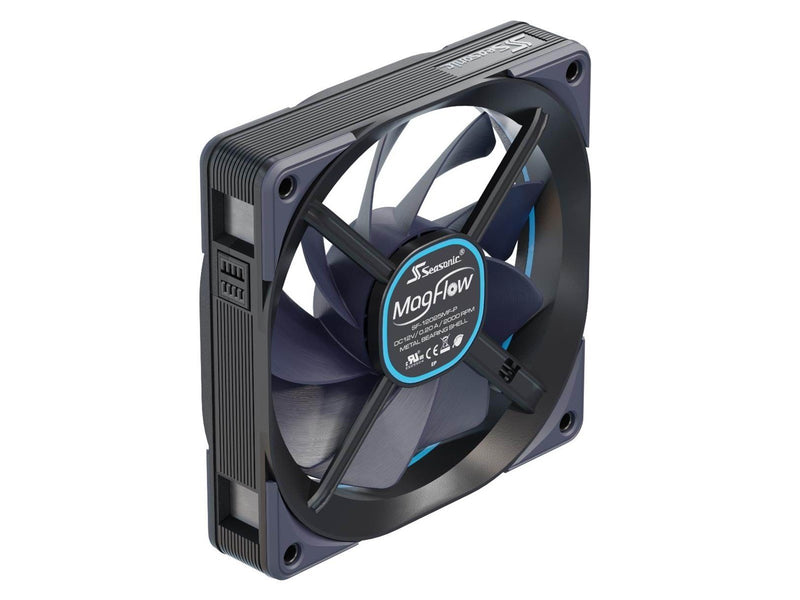

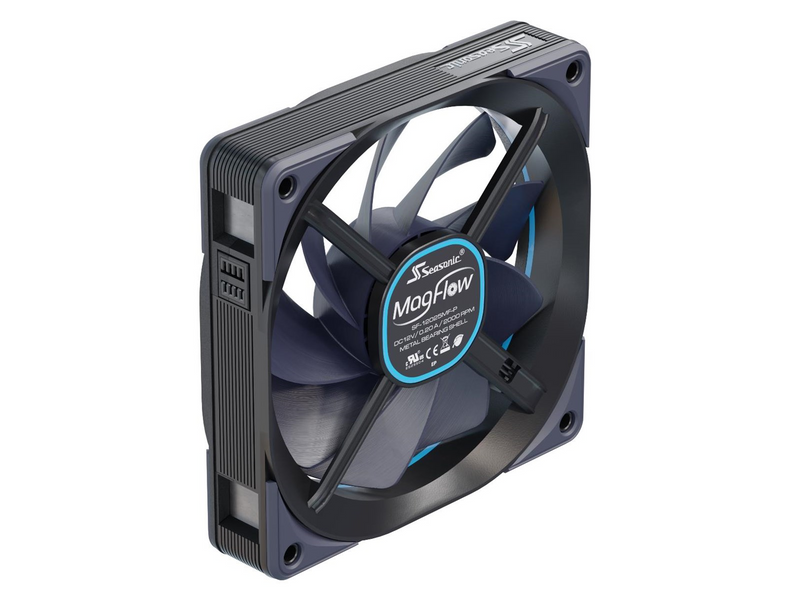

Seasonic MagFlow 1-Fan Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
DAISY CHAIN DESIGN
Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.
MODULARITY
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.
EASY INSTALLATION ON TOP OF THE RADIATOR
After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.
| Generell | |
| Hersteller: | Seasonic |
| Waren-Nr.: | 3247457 |
| Modell: | MAGFLOW-1 |
| EAN: | 4711173877608 |
| Zum Hersteller:: | |
| Empfohlene Platzierung: | ComputergehÀuse |
| Typ: | Ventilator |
| LĂŒfterdurchmesser: | 12 cm |
| Rotationsgeschwindigkeit (min.): | 600 RPM |
| Rotationsgeschwindigkeit (max.): | 2000 RPM |
| Maximaler Luftstrom: | 63,33 cfm |
| Maximum Luftdruck: | 2,61 mmH2O |
| Lagertyp: | Fluiddynamisches Lager (FDB) |
| Ventilator-Lagertechnik: | Fluiddynamisches Lager (FDB) |
| Menge pro Packung: | 1 StĂŒck(e) |
| Ventilatoren Geschwindigkeit (min): | 600 RPM |
| Ventilatoren Geschwindigkeit (max): | 2000 RPM |
| Mittlere Betriebsdauer zwischen AusfÀllen (MTBF): | 100000 h |
| Produktfarbe: | Schwarz |
| Anzahl LĂŒfter: | 1 LĂŒfter |
| Anzahl der VentilatorflĂŒgel: | 9 |
| Spannung: | 12 V |
| Nennstrom: | 0,1 A |
| StromstÀrke (maximal): | 0,18 A |
| Ventilatoren Spannung: | 12 V |
| Ventilatoren Strom: | 0,1 A |
| Breite: | 124,2 mm |
| Tiefe: | 26,6 mm |
| Höhe: | 120,4 mm |
| Gewicht: | 212,7 g |
| Abmessungen GeblÀse (B x T x H): | 124,2 x 26,6 x 120,4 mm |
| Ventilatorengewicht: | 212,7 g |
| Verpackungsart: | Box |

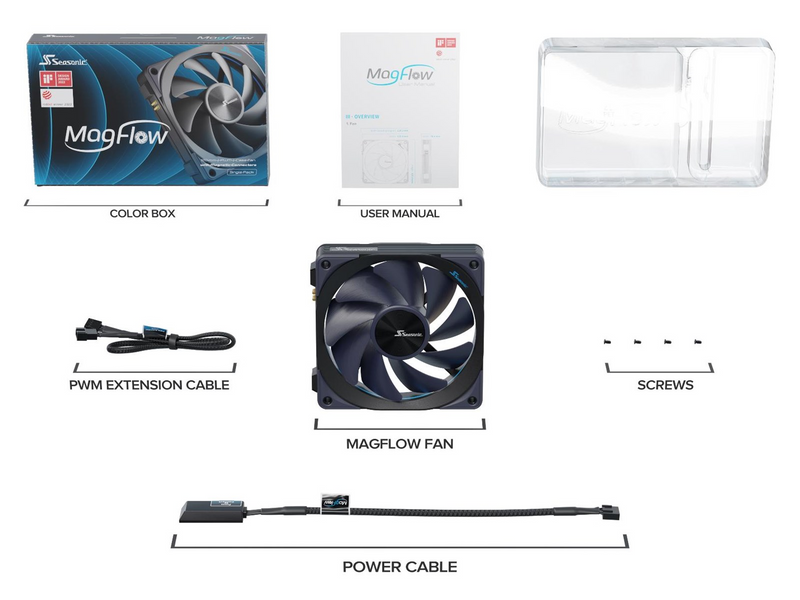

| Mitgelieferte Kabel: | Ventilator |
| Schrauben enthalten: | Ja |
| Anzahl von Schrauben: | 4 |
| Betriebsanleitung: | Ja |
| Leistungen | |
| Empfohlene Platzierung: | ComputergehÀuse |
| Typ: | Ventilator |
| LĂŒfterdurchmesser: | 12 cm |
| Rotationsgeschwindigkeit (min.): | 600 RPM |
| Rotationsgeschwindigkeit (max.): | 2000 RPM |
| Maximaler Luftstrom: | 63,33 cfm |
| Maximum Luftdruck: | 2,61 mmH2O |
| Lagertyp: | Fluiddynamisches Lager (FDB) |
| Ventilator-Lagertechnik: | Fluiddynamisches Lager (FDB) |
| Menge pro Packung: | 1 StĂŒck(e) |
| Ventilatoren Geschwindigkeit (min): | 600 RPM |
| Ventilatoren Geschwindigkeit (max): | 2000 RPM |
| Mittlere Betriebsdauer zwischen AusfÀllen (MTBF): | 100000 h |
| Design | |
| Produktfarbe: | Schwarz |
| Anzahl LĂŒfter: | 1 LĂŒfter |
| Anzahl der VentilatorflĂŒgel: | 9 |
| Energie | |
| Spannung: | 12 V |
| Nennstrom: | 0,1 A |
| StromstÀrke (maximal): | 0,18 A |
| Ventilatoren Spannung: | 12 V |
| Ventilatoren Strom: | 0,1 A |
| Gewicht und Abmessungen | |
| Breite: | 124,2 mm |
| Tiefe: | 26,6 mm |
| Höhe: | 120,4 mm |
| Gewicht: | 212,7 g |
| Abmessungen GeblÀse (B x T x H): | 124,2 x 26,6 x 120,4 mm |
| Ventilatorengewicht: | 212,7 g |
| Lieferumfang | |
| Verpackungsart: | Box |
| Mitgelieferte Kabel: | Ventilator |
| Schrauben enthalten: | Ja |
| Anzahl von Schrauben: | 4 |
| Betriebsanleitung: | Ja |
