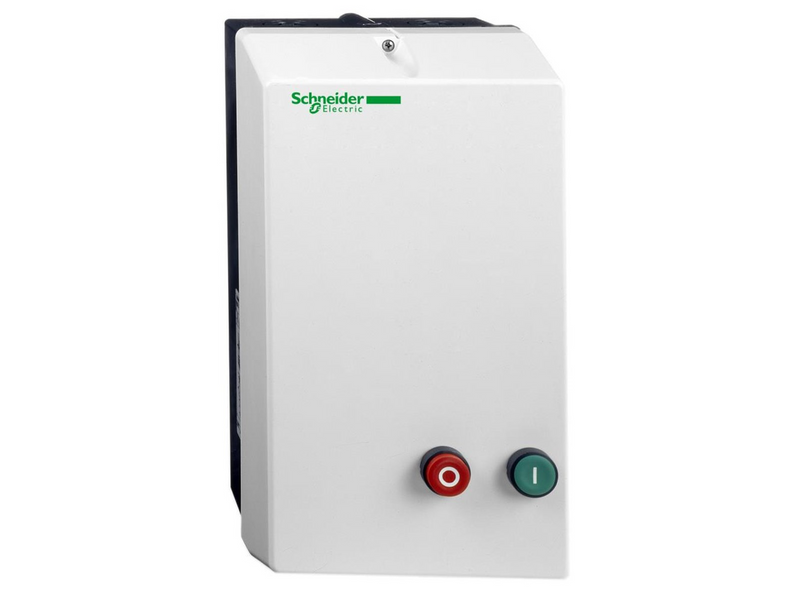

Schneider Electric Enclos s-d 1s 230v

Name: Schneider Electric Enclos s-d 1s 230v
Brand: TechStore
SKU: 2758627
Price: 1667.85 EUR
Availability: InStock

€1.667,85 - €1.667,85

€1.667,85

€1.667,85 - €1.667,85

€1.667,85

Verfügbarkeit:

Auf Lager

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Y/D starter 7.5KW enclosed 230V Product description: TeSys D - up to 75 kW/400 V and 250 A/AC1 Contactors and reversing contactors up to 75 kW/400 V and 250 A/AC1 AC, DC, low consumption DC control circuit All types of starters: reversing or non-reversing, star-delta, with autotransformer etc. Connection: spring terminal, EverLink terminal block, screw terminal, eye-type plug-in connector, Faston connector Easy installation directly between contactor and switch using EverLink terminal block (from 40 to 65 A). IMPORTANT: Y/D starter is equipped without motor protection and sold separately!! The LRD series from Schneider Electric is selected here and calculated with a factor of 0.58 x full load current of the motor. Technical specifications: Enclosure rating (IP): IP65 Enclosure type: IK07 Control voltage (V):230V Setting range: max.30 seconds Rated current at AC3-400V Suitable for a motor of up to7.5 kW

Generell
Hersteller:	Schneider Electric
Waren-Nr.:	2758627
Modell:	LE3D09P7
EAN:	3389110625714
Zum Hersteller::	/
