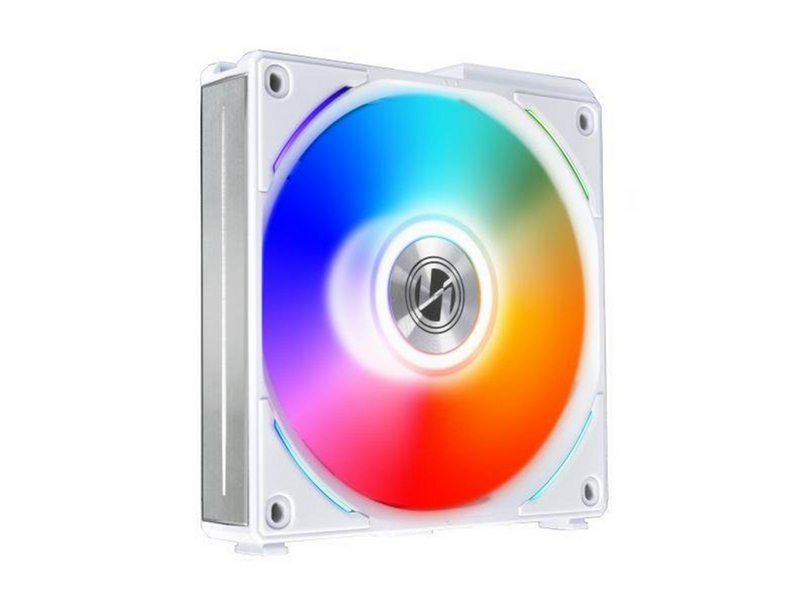

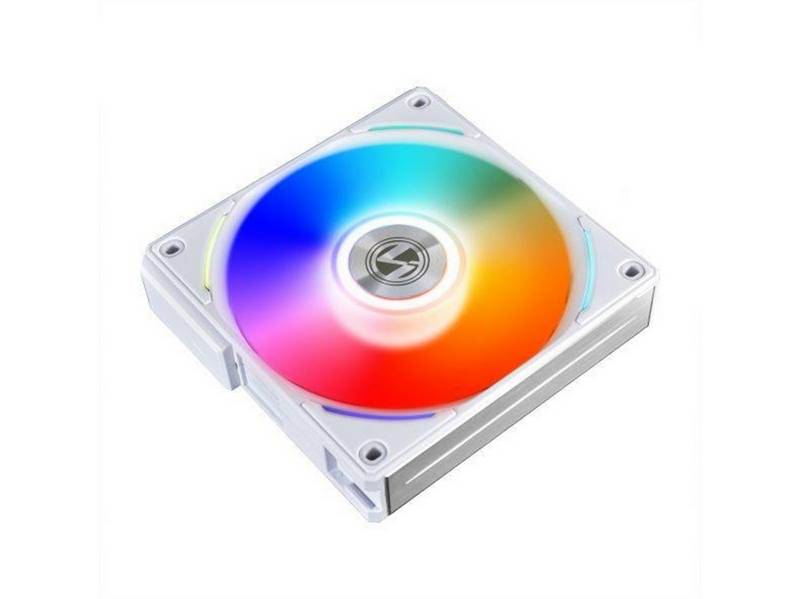

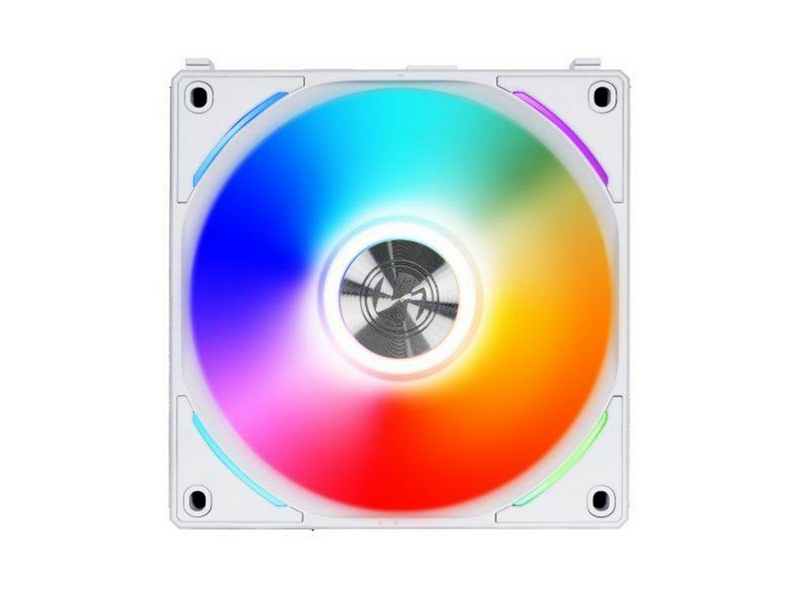

Lian Li UNI FAN AL120 - Gehäuselüfter - 120mm - Weiß mit RGB-Beleuchtung - 28 dBA
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Gehäuselüfter, 120mm x 120mm x 25mm (Höhe x Breite x Tiefe), Geräuschpegel: 17 - 28.3 dBa, Luftstrom max 64.5 CFM, max statischer Luftdruck 2.62 mmH2O, Umdrehungsgeschwindigkeit: 800 - 1900 ±10% RPM, PWM-gesteuert, Lagerart: Fluid Dynamic Bearing (FDB), Mainboard-Anschluss: 4-pins & RGB-Anschluss: 3-pins (5 Volt), ansteuerbares RGB LED-Licht, kann gekoppelt werden (daisy-chain): ja - via Anschluss im Rahmen, spezieller Hub benötigt Lian Li UNI HUB, gesteuert von: ASUS AURA / Asrock Polychrome Sync / Gigabyte Fusion / MSI Mystic Light, Farbe: weiß mit RGB.
• Daisy-chained with less cable clutter
• Lian Li L-Connect software to control RGB effects
• Addressable RGB for cool lighting effects with motherboard software and synced with other RGB products
Simply daisy chain the fans together with the slide-in interlocking system to pass the signals through the pin-to-pad contact. Users can choose to go with a single fan or link up to 4 fans in a group, and operate each group with just 2 cables.
BETTER PERFORMANCE
Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O).
ENDLESS LIGHTING EFFECT COMBINATIONS
The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame.
Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects.
L-CONNECT 2 SOFTWARE TO CONTROL AL120
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
ADJUST THE SPEED OF EACH FAN GROUP
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
Fan Speed: 800 RPM – 1900 RPM
Users can set the fan speed of each group of UNI FANs manually or set it at PWM to let the motherboard control the speed.
SET PERSONALIZED LED MODE AND COLOR
Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished.
CONTROL UP TO 16 FANS IN ONE GO
The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack.
MANAGE UP TO 64 FANS
L-Connect 2 can now manage a maximum of 4 controllers at a time, allowing users to control 64 fans within the software.
DAZZLING AT ALL ANGLES
Brushed aluminum trim with reflecting edges on both sides of the fan frame.
Rear metallic medallion at the center with cables hidden in X-style fan support.
Aesthetic details considered for both intake and outtake mounting in the case.
Generell
| Hersteller | Lian Li |
| Waren-Nr. | 2986093 |
| Modell | UF-AL120-1W |
| EAN | 4718466010155 |
| Empfohlene Platzierung | Computergehäuse |
| Typ | Ventilator |
| Lüfterdurchmesser | 12 cm |
| Rotationsgeschwindigkeit (min.) | 800 RPM |
| Rotationsgeschwindigkeit (max.) | 1900 RPM |
| Geräuschpegel (langsame Geschwindigkeit) | 17 dB |
| Geräuschpegel (hohe Geschwindigkeit) | 28,3 dB |
| Maximaler Luftstrom | 64,5 cfm |
| Maximum Luftdruck | 2,62 mmH2O |
| Lagertyp | Fluiddynamisches Lager (FDB) |
| Ventilator-Lagertechnik | Fluiddynamisches Lager (FDB) |
| Menge pro Packung | 1 Stück(e) |
| Produktfarbe | Weiß |
| Material | Aluminium, Polybutylene terephthalate (PBT), Polycarbonat (PC) |
| Anzahl Lüfter | 1 Lüfter |
| Anzahl der Ventilatorflügel | 7 |
| Stromverbrauch (Standardbetrieb) | 5,94 W |
| Ventilatoren Strom | 0,22 A |
| Breite | 120 mm |
| Tiefe | 120 mm |
| Höhe | 25 mm |
| Verpackungsart | Karton mit Aufhänger |
| Schrauben enthalten | Ja |
| RGB-Controller enthalten | Ja |
Technische Daten
| Leistungen | |
| Empfohlene Platzierung | Computergehäuse |
| Typ | Ventilator |
| Lüfterdurchmesser | 12 cm |
| Rotationsgeschwindigkeit (min.) | 800 RPM |
| Rotationsgeschwindigkeit (max.) | 1900 RPM |
| Geräuschpegel (langsame Geschwindigkeit) | 17 dB |
| Geräuschpegel (hohe Geschwindigkeit) | 28,3 dB |
| Maximaler Luftstrom | 64,5 cfm |
| Maximum Luftdruck | 2,62 mmH2O |
| Lagertyp | Fluiddynamisches Lager (FDB) |
| Ventilator-Lagertechnik | Fluiddynamisches Lager (FDB) |
| Menge pro Packung | 1 Stück(e) |
| Design | |
| Produktfarbe | Weiß |
| Material | Aluminium, Polybutylene terephthalate (PBT), Polycarbonat (PC) |
| Anzahl Lüfter | 1 Lüfter |
| Anzahl der Ventilatorflügel | 7 |
| Energie | |
| Stromverbrauch (Standardbetrieb) | 5,94 W |
| Ventilatoren Strom | 0,22 A |
| Gewicht und Abmessungen | |
| Breite | 120 mm |
| Tiefe | 120 mm |
| Höhe | 25 mm |

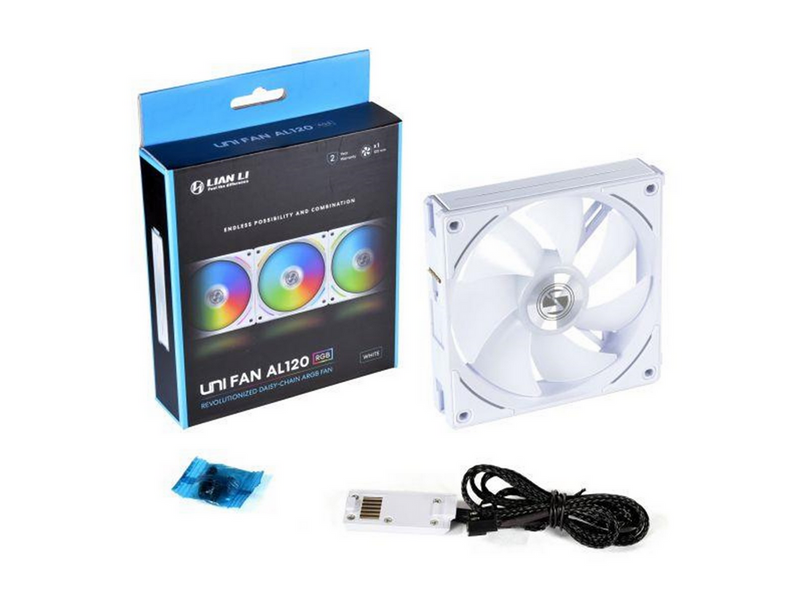

| Lieferumfang | |
| Verpackungsart | Karton mit Aufhänger |
| Schrauben enthalten | Ja |
| RGB-Controller enthalten | Ja |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
