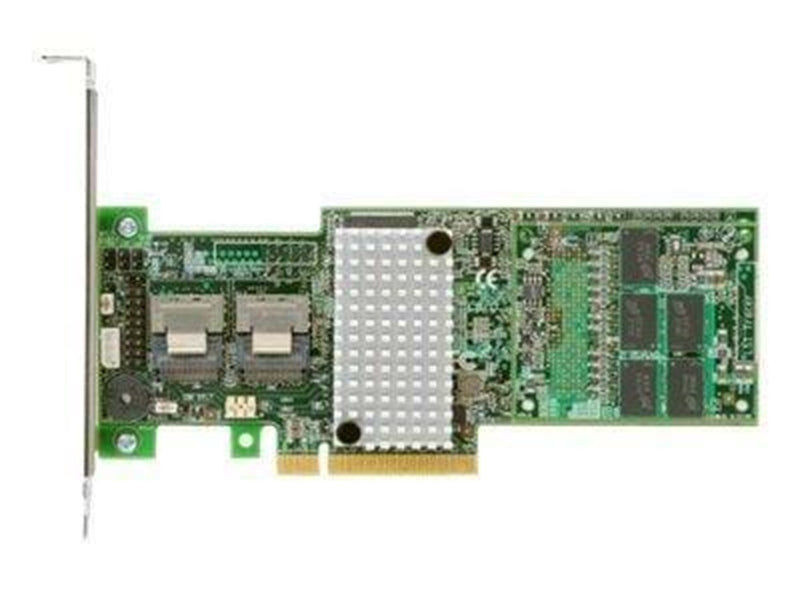

IBM ServeRAID M5110 - Controller für Storage (RAID) - SATA-600 / SAS 2.0
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | IBM |
| Waren-Nr.: | 2345472 |
| Modell: | 81Y4481 |
| EAN: | 0883436135344 |
| Zum Hersteller:: | |
| Produktbeschreibung: | Lenovo ServeRAID M5110 - Speichercontroller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8 |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte - Low-Profile |
| Bustyp: | PCIe 3.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 6Gb/s |
| Datenübertragungsrate: | 6 Gbit/s |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 8 |
| Max. Anzahl Speicherperipheriegeräte: | 32 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Systemanforderungen: | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition |
| Abmessungen (Breite x Tiefe x Höhe): | 1.5 cm x 16.8 cm x 6.9 cm |
| Gewicht: | 77 g |
| Entwickelt für: | System x3100 M5; x3300 M4; x3500 M4; x3530 M4; x3550 M4; x3630 M4; x3650 M4 BD |
| Allgemein | |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte - Low-Profile |
| Host-Bus: | PCIe 3.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 6Gb/s |
| Datenübertragungsrate: | 6 Gbit/s |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 8 |
| Max. Anzahl Speicherperipheriegeräte: | 32 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Prozessor: | IBM PowerPC 800 MHz |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x SATA 6Gb/s / SAS 6Gb/s - 36 PIN 4iMini MultiLane (innerhalb) |
| Kompatible Steckplätze: | 1 x PCI Express 3.0 x8 - Halbe Länge, volle Höhe |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech, Halterung, volle Höhe |
| Kennzeichnung: | VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, FCC Part 15 B, MIC, KCC, FCC Part 15 A, IEC 950 |
| Software / Systemanforderungen | |
| Software inbegriffen: | MegaRAID Storage Manager |
| Erforderliches Betriebssystem: | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition |
| Abmessungen und Gewicht | |
| Breite: | 1.5 cm |
| Tiefe: | 16.8 cm |
| Höhe: | 6.9 cm |
| Gewicht: | 77 g |
| Umgebungsbedingungen | |
| Min Betriebstemperatur: | 10 °C |
| Max. Betriebstemperatur: | 32 °C |
| Zulässige Luftfeuchtigkeit im Betrieb: | 20 - 80% (nicht kondensierend) |
