Grundfos unilift ap 35.40.06 a1v 1x230v 10m sch
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

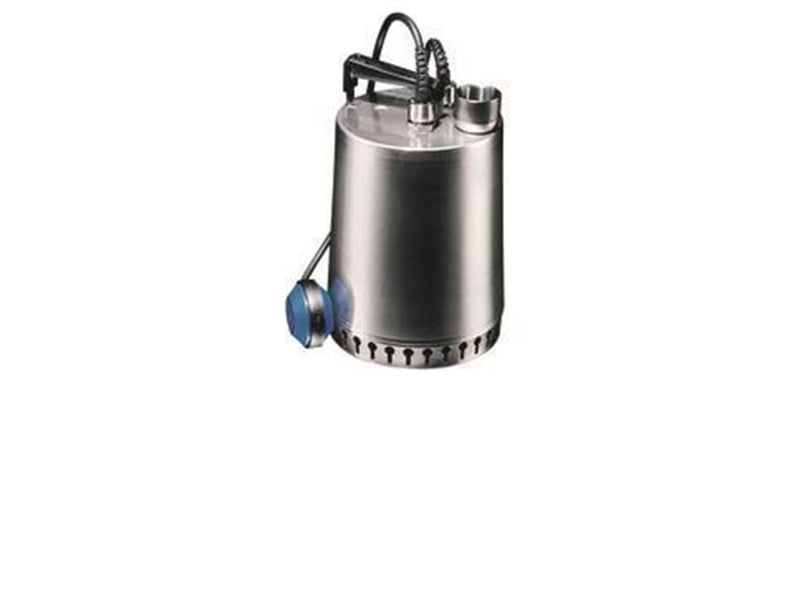

Unilift AP35.40.06.A1.VSubmersible drainage pump typeVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase totally enclosed motorin insulation class F with thermal overloadprotection. The pump is fitted with suction strainer and level switch for automatic start and stop.The impeller is a VORTEX impeller for35 mm free passage suitable for pumpinggroundwater, surface water, rain water andsimilar.The pump has a double shaft seal and anintermediate oil chamber pre-filled with non-toxicspecial oil.The pump has a riser pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and long-life deep-groove greased-for-life ball bearings.The pump is ready for use as it is fitted withcarrying handle and is supplied with a10 m mains cable. The mains cable is ofthe plug type with glass sealing compound in thesocket to prevent penetration of humidity intothe stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Type of impeller:VORTEXMaximum particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:Rp 1 1/2Maximum installation depth:10 mElectrical data:Type of motor:PSCPower input - P1:0.9 kWRated voltage:1 x 230 VRated current:4 ACos phi - power factor:0,97Rated speed:2810 rpmCapacitor size - run:16 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug SchukoOthers:Net weight:11.4 kgGross weight:11.9 kg
Generell
| Hersteller | Grundfos |
| Waren-Nr. | 2898885 |
| Modell | 96010982 |
| EAN | 5700390901370 |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
