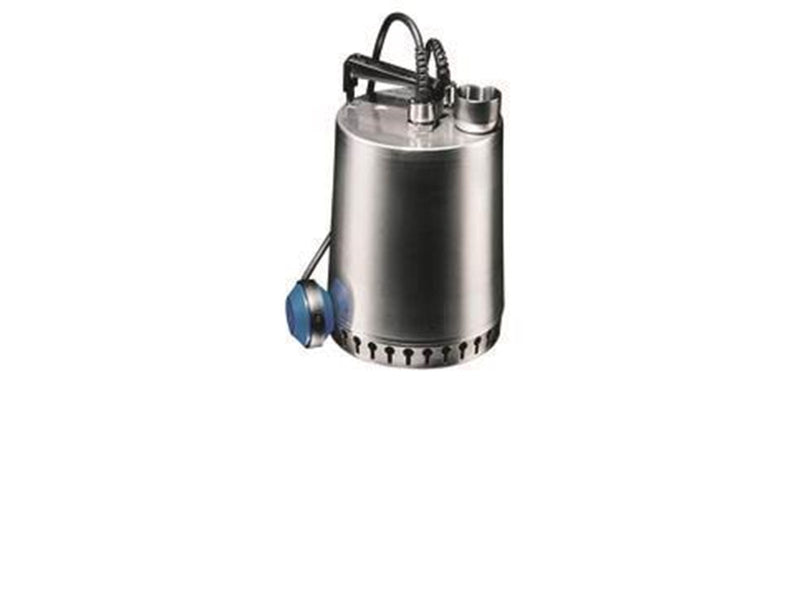

Grundfos unilift ap 35.40.06 a1v 1x230v 10m sch

Grundfos UNILIFT drainage pump AP 35.40.06 A1 10m SCH Product description: Unilift AP35.40.06.A1.V Submersible drainage pump Vertical 1-stage submersible pump in stainless steel with vertical outlet and integrated 1-phase completely enclosed submersible motor in insulation class F with thermal overload protection. The pump is equipped with an inlet strainer and level switch for automatic start and stop. The impeller is of the VORTEX type for a free passage of 35 mm, suitable for pumping groundwater, surface water, rainwater and similar liquids.The pump has double shaft seals and an internal oil chamber filled with a non-toxic special oil.The pump has a riser pipe, cooling jacket for continuous cooling of the motor by means of the pumped liquid and maintenance-free, lifetime-lubricated ball bearings.The pump is ready to use as it is supplied with carrying handle and a 10 m supply cable. The supply cable is provided with plug socket, glass sealing material in the socket to prevent moisture from entering into the stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Type of impeller:VORTEXMaximum particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr . 1.4301Impeller:AISI 304Installation:Pump outlet :Rp 11/2Maximum installation depth :10 mElectrical data :Type of motor:PSCPower input - P₁ :0 .9 kWRated voltage :1 x 230 VRated current :4 ACos phi - power factor :0 ,97Rated speed ​​2810 rpmCapacitor size - runn ing time :16 F/400 VEnclosure class (IEC 34-5):68Insulation class (IEC 85):FLength of cable:10 mType of cable plug: SchukoOthers:Net weight :11.4 kgGross weight :11.9 kg
