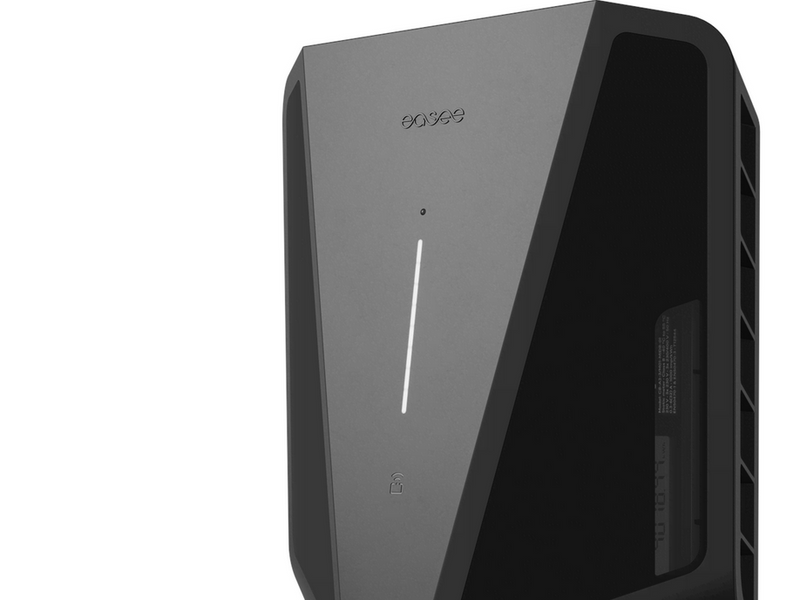

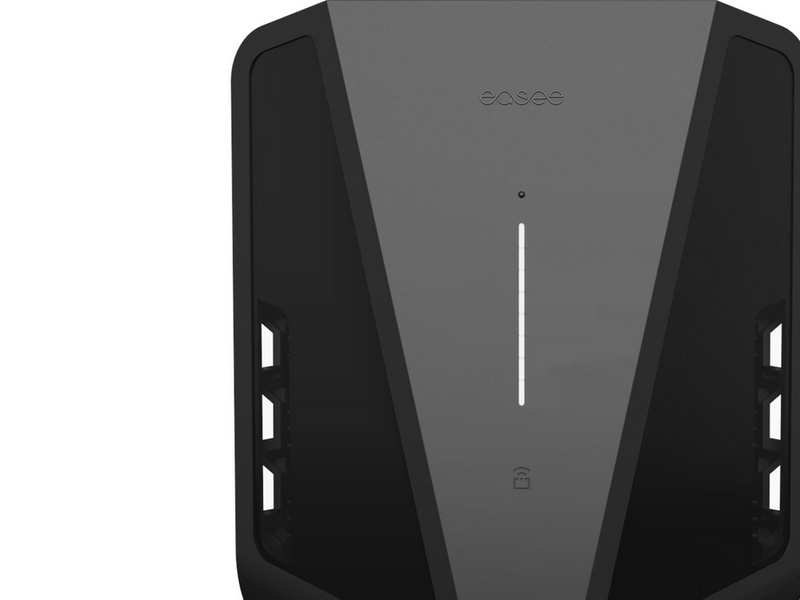

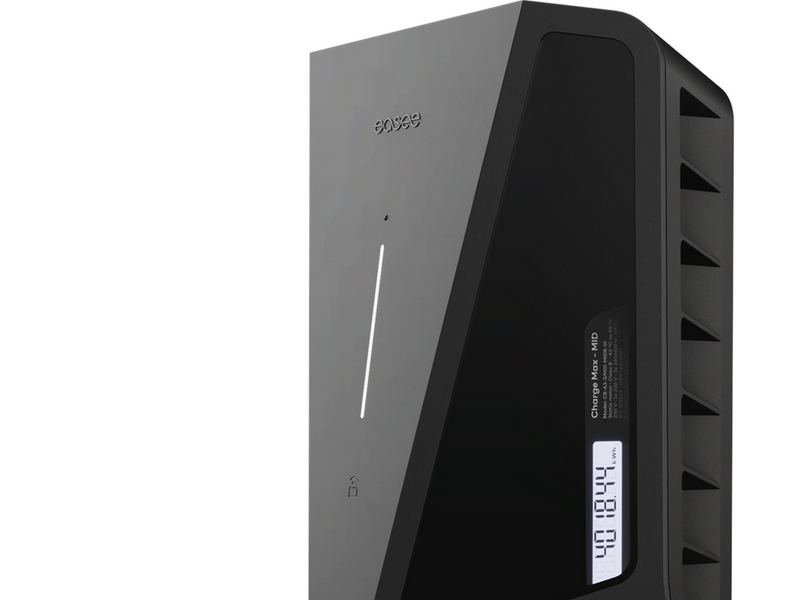

Easee Max charging box 22kW 4G + WiFi Type 2 Black

A home charger for electric vehicles designed to ensure accurate energy measurements, billing transparency and full visibility of charging costs using an integrated MID-certified energy meter.

Powerful. Precise. Durable.

MID-certified

Charge Max features a MID-certified power meter, ensuring accurate energy readings and billing for users, in accordance with the EU Measuring Instruments Directive.

1. Get reimbursed for charging your company car at private or semi-private addresses. This ensures a completely uncomplicated charging experience, no matter where you are.

2. You can fully rely on the charging consumption measured by the charger, which has a proven accuracy of ±1%.

3. Monitor the charger’s power consumption directly via the built-in display, the Easee App or the Easee Control portal.

4. Give your guests access to your charger and bill them for their usage.

A comprehensive solution that ensures efficient management of fleet charging with automated payment processing, invoicing, reimbursement for home charging, while providing great flexibility for employees who can charge their electric vehicles anywhere thanks to our partners’ charging facilities.

Features

Charge Max can charge up to 7.4 kW on a single-phase circuit and up to 22 kW on a three-phase circuit. It is possible to install up to three chargers on a home installation. The charger is continuously updated with the latest features.

— Accuracy of MID Class B, according to EN 50470-3.
— Easee LinkTM local load and phase balancing.
— Automatic queuing system.
— Permanent locking of the Type 2 cable.
— Integrated RFID reader (NFC/ISO 14443 and MIFARE Classic®).
— Universal, suitable for all types of electric vehicles and power supplies.
— Full control with Easee App or third-party integrations.
— Manufacturer's warranty: 5 years in accordance with Easee's warranty procedure.

Protection

Integrated residual current device (RCD) type A 30 mA AC according to EN 60947-2.
Integrated 6mA DC residual current detection device (RDC-DD) according to IEC 62955, 9.9.
Temperature monitoring.
Overload protection.
Degree of protection: IP54 (back plate is IP22 without cover).
Impact resistance: IK10.
Overvoltage category III.
Anti-theft protection.

Charging power

1-phase: 1.4 kW (6A) - 7.4 kW (32A).
TN 3-phase: 4.1 kW (6A) - 22 kW (32A).
IT 3-phase: 2.4 kW (6A) - 12.7 kW (32A).

Electrical

Voltage: 3x 230 V / 400 V AC (+/-10%).
Mains frequency: 50 Hz.
Mains: TN, IT, TT.
Connection point: Type2 contact (Mode3).
Automatic adjustment of the charging speed based on the available power.
Automatic charging with solar energy.
Automatic phase balancing.
Built-in power meter MID Class B (±1%).

Connectivity

Wi-Fi 2.4 GHz b/g/n.
Bluetooth BLE 4.2.
Built-in LTE Cat M1.
OCPP 1.6J.
Easee LinkRF (local communication between the chargers and Equalizer).
Built-in RFID/NFC reader for access control.
Easee App & Easee Control for management and monitoring.

General

Dimensions (mm): H: 256 x W: 193 x D: 106.
Wall mounting (mm): c/c H: 160 x W: 125.
Operating temperature: -30 °C to +40 °C.
Weight: 1.6 kg.

Complies with the following regulations

2014/53/EU (RED).
2011/65/EU (RoHS).
2014/30/EU (EMCD).
2014/35/EU (LVD).
MID 2014/32/EU.
Electric Vehicles (Smart Charge Points) Regulations 2021.
