Danfoss Repair kit cs2b

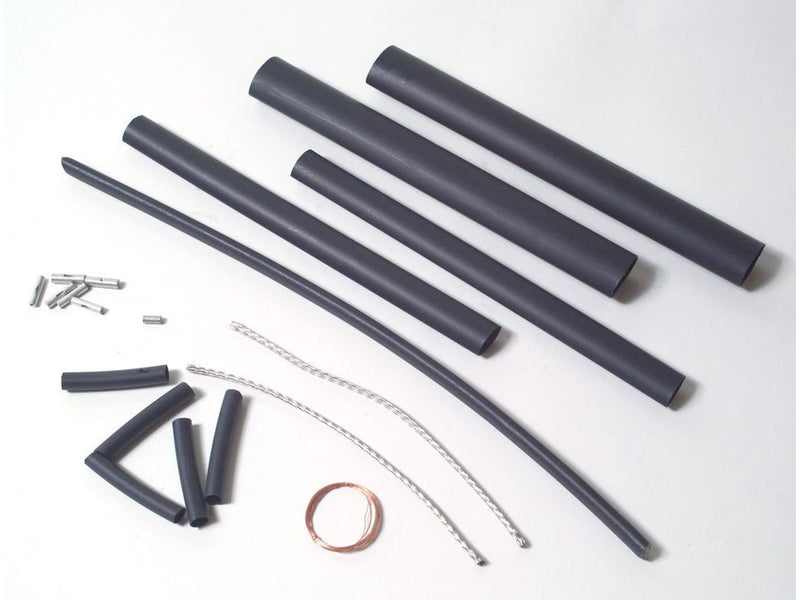

Reparation kit CS2B Product description: DEVIcrimpTM for DEVIflexTM repair and connection of 2-conductor heating cables. For 2 repairs/connections: • 4 pieces of double tube crimps for wires with a diameter of 0.5-1.0 mm² • 4 cm heat shrink tubing, black, thin-walled, with a diameter ratio of 6/1.4 • 2 pieces of double tube crimps for wires with a diameter of 1.5-2.5 mm² • A length of heat shrink tubing measuring at least .4 meters long and having an inner diameter ratio to the outer wall thickness (12/3) and is black in color• An additional length measuring at least18 cm long that has an inner diameter ratio to the outer wall thickness (6/1.4) and is also black in color• A CU-sleeve measuring .3 meters long• A BLW0 cable measuring .64meters long that has an electrical resistance per meter equaling approximately .248 ohms/meter; it also has a K-20016kg rating.• Heat shrink tubing that measures at least .4 meters long and has an inner diameter ratio to the outer wall thickness (19/5), which is black in color and contains adhesive.• Halogen-free DTWC15 cable that measures at least .3 meters long; it contains two conductors each having a cross-sectional area equaling approximately1.5mm² along with shielding.• One piece single tube crimp suitable for wire diameters ranging from0.5-1mm² Technical specifications: Width (mm):120Height(mm):40Length(mm):280
