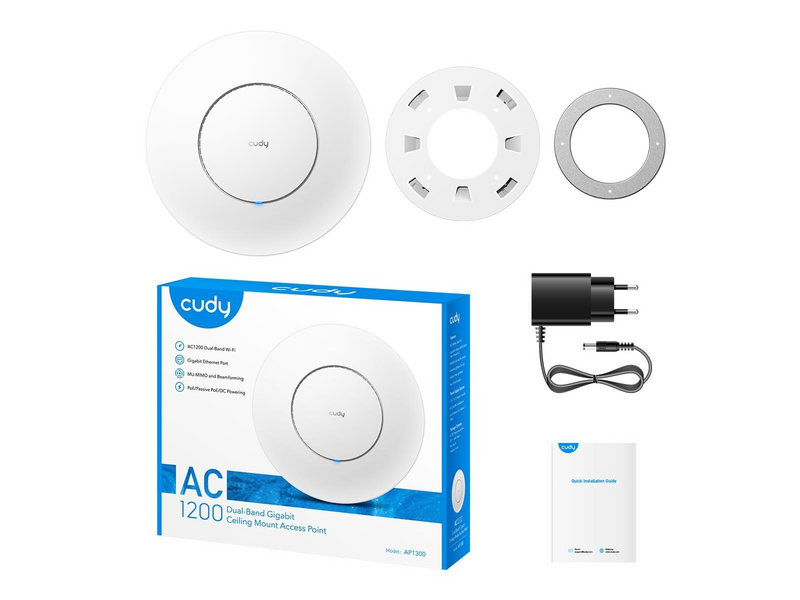

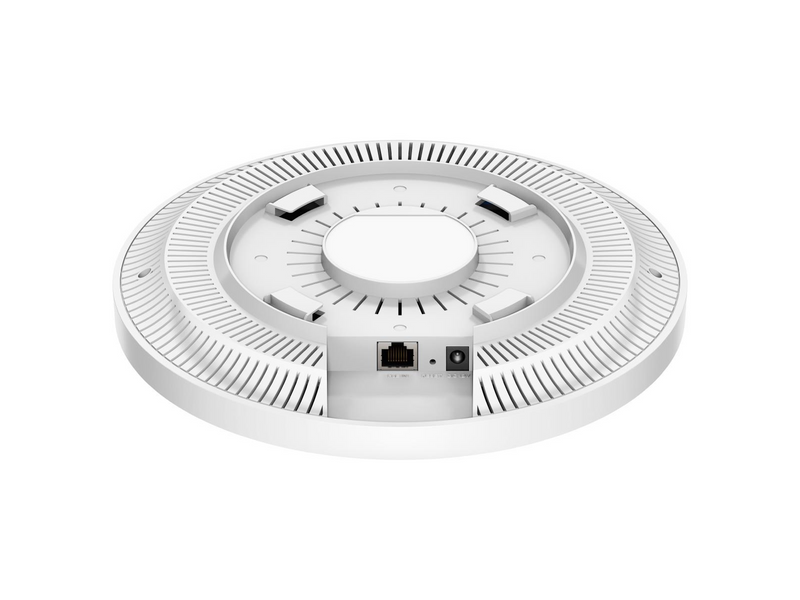

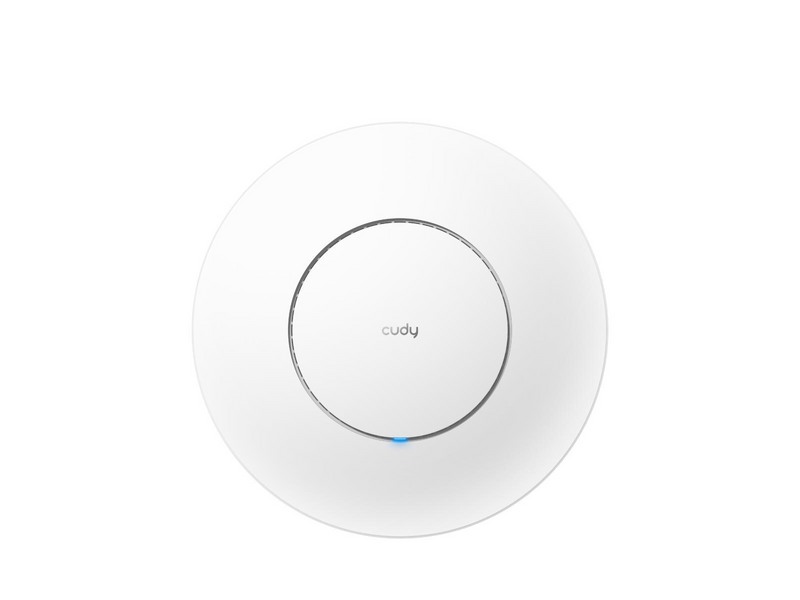

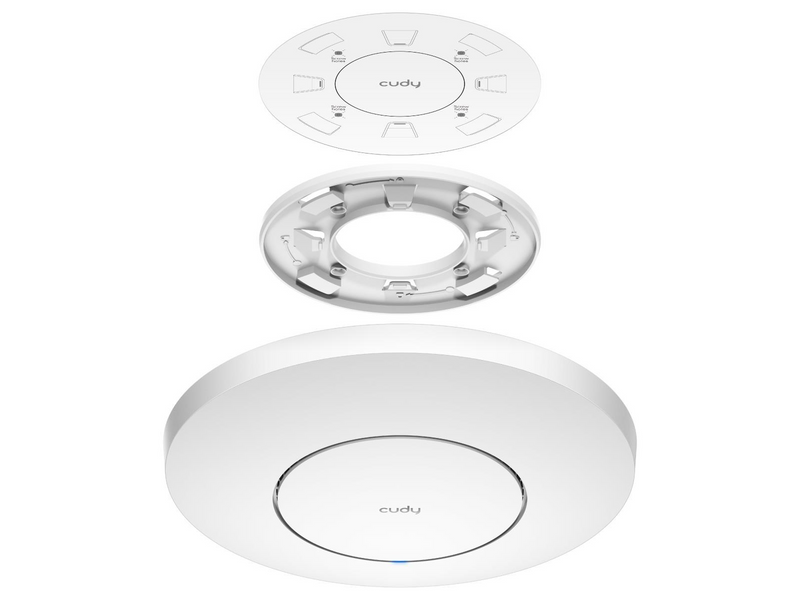

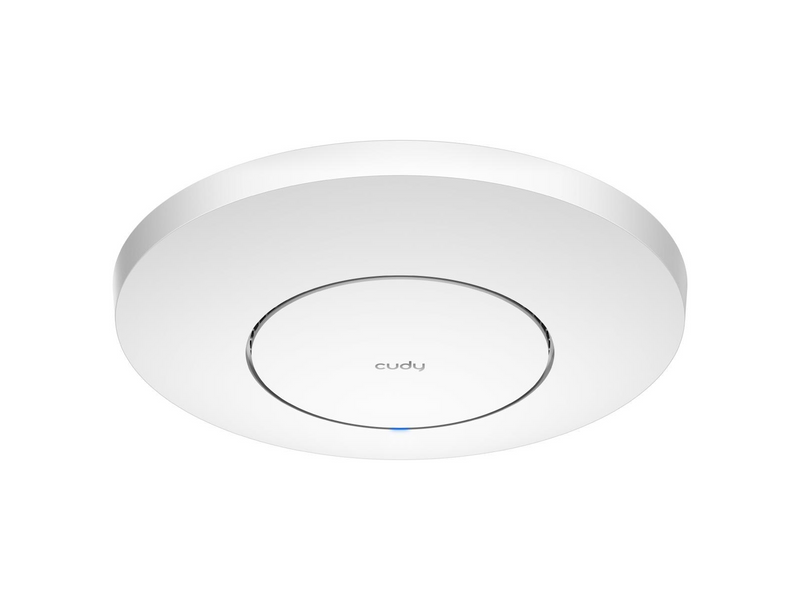

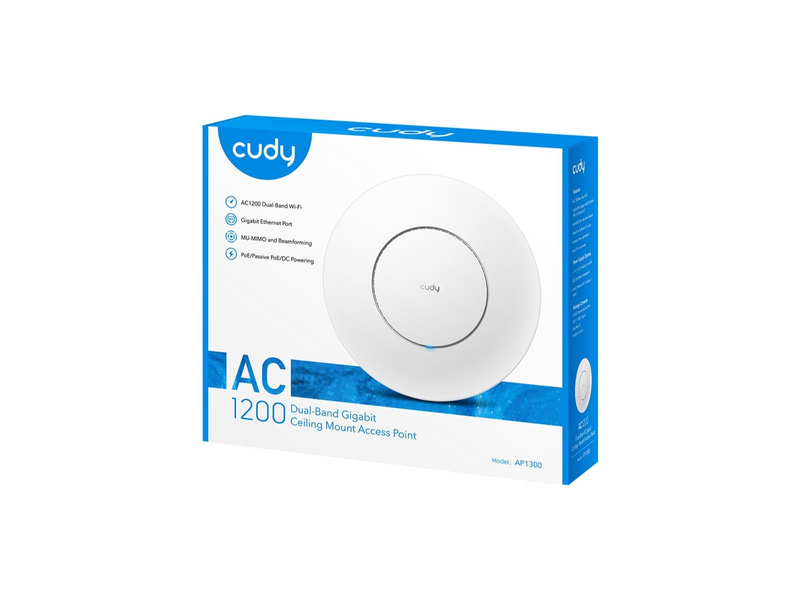

Cudy AP1300 Dual-Band Wi-Fi 5 Access Point
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
• Ideal for small offices or homes with moderate internet usage
• Supports smooth browsing, streaming, and gaming experiences
• Advanced security features, including WPA2 encryption
• Easy installation and simple configuration
• Compact design for easy placement in any environment
• Provides extended coverage and stronger signal strength
• Reliable performance for multiple devices at once
| Generell | |
| Hersteller: | Cudy |
| Waren-Nr.: | 3326703 |
| Modell: | AP1300 |
| EAN: | 6971690792022 |
| Zum Hersteller:: | / |
| Produktbeschreibung: | Cudy AP1300 - 1.0 - Accesspoint - Wi-Fi 5 |
| Gerätetyp: | Accesspoint |
| Formfaktor: | Wand- / Deckenmontage - innen |
| Prozessor: | 1 x MediaTek MT7621DAT - 880 MHz |
| RAM: | 128 MB |
| Flash-Speicher: | 16 MB |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 300 Mbps Maximale Datenrate (5 GHz): 867 Mbit/s Channel-Bandbreite: 80 MHz |
| Kapazität: | Streams: 4 Verbundene Geräte: 50 |
| Zubehör im Lieferumfang: | Montagekit |
| Power Over Ethernet (PoE)-Unterstützung: | Passives PoE |
| Stromversorgung: | Wechselstrom 100-240 V (50/60 Hz) |
| Abmessungen (Breite x Tiefe x Höhe): | 23.19 cm x 23.19 cm x 5.71 cm |
| Gewicht: | 400 g |
| Allgemein | |
| Gerätetyp: | Accesspoint |
| Robustes Design: | Innen |
| Breite: | 23.19 cm |
| Tiefe: | 23.19 cm |
| Höhe: | 5.71 cm |
| Gewicht: | 400 g |
| Prozessor / Arbeitsspeicher / Speicherkapazität | |
| Installierte Prozessoren: | 1 x MediaTek MT7621DAT 880 MHz |
| RAM: | 128 MB DDR3 SDRAM |
| Flash-Speicher: | 16 MB |
| Netzwerk | |
| Formfaktor: | Wand- / Deckenmontage |
| Anschlusstechnik: | Kabellos |
| Datenübertragungsrate: | 1.2 Gbps |
| Leitungskodierformat: | 256 QAM |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b |
| Netzwerk/Transportprotokoll: | DHCP, PPPoE, PPTP, L2TP, IPv4, IPv6, DHCPv6, HTTPs, OpenVPN, IPSec |
| Routing Protocol: | Statisches IP Routing, IGMP |
| Remoteverwaltungsprotokoll: | SLAAC, TR-069, TR-098, TR-111, TR-181 |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Max. Reichweite (außen): | 170 m |
| Max. Abdeckungsbereich: | Bis zu 100 qm |
| Leistung: | Maximale Datenrate (2,4 GHz): 300 Mbps Maximale Datenrate (5 GHz): 867 Mbit/s Channel-Bandbreite: 80 MHz |
| Kapazität: | Streams: 4 Verbundene Geräte: 50 |
| WLAN-Rating: | AC1200 |
| Statusanzeiger: | System |
| Leistungsmerkmale: | Vermaschtes Netz, Dual-Core CPU, 2x2 MIMO-Technologie, Beamforming-Technologie, Reset-Taste, Hardware-Regulierungsbehörde, 4KV ESD Protector (Kontaktentladung), 8KV ESD Protector (Luftspaltentladung), MU-MIMO-Technologie, Routermodus, Range-Extender-Modus, WISP-Modus, Backhaul Technology, Quality of Service (QoS), IPTV-Support, VLAN-Unterstützung, IGMP-Proxy, IGMP Snooping, DMZ-Unterstützung, Stateful Packet Inspection (SPI), firewall, Pin Detect, DoS-Schutz, Port-Weiterleitung, Port-Ansteuerung, IPSec-Passthrough, L2TP-Durchleitung, PPTP-Durchleitung, FTP-Durchleitung, TFTP Durchleitung, H.323 Pass-Through, SIP Pass-Through, RTSP Pass-Through, Captive Portal, WireGuard, ZeroTier VPN-Client-Support, VPN-Klient, VPN-Server, Wake on LAN (WOL), Wi-Fi Schedule, MAC-Adressenfilter, IP-Adressenfilterung, IP-MAC-Einbindung, Domainfilter, Firmware aktualisierbar, Neustart zu festgelegtem Zeitpunkt |
| Verschlüsselungsalgorithmus: | WPA, WPA2, WPA3 |
| Produktzertifizierungen: | IEEE 802.3at, IEEE 802.3af, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, Wi-Fi CERTIFIED 5, UPnP |
| Antenne | |
| Antenne: | Intern |
| Antennenzahl: | 4 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x 1000Base-T (PoE-Eingang) - RJ-45 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Montagekit |
| Enthaltene Kabel: | 1 x Netzwerkkabel |
| Kennzeichnung: | FCC |
| Stromversorgung | |
| Power Over Ethernet (PoE)-Unterstützung: | Passives PoE |
| Stromversorgungsgerät: | Externer Netzadapter |
| Erforderliche Netzspannung: | Wechselstrom 100-240 V (50/60 Hz) |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 28.3 cm |
| Transporttiefe: | 23.8 cm |
| Transporthöhe: | 6.8 cm |
