Broadcom P411W-32P

Name: Broadcom P411W-32P
Brand: TechStore
SKU: 3187298
Price: 2910.55 EUR
Availability: InStock

€2.910,55 - €2.910,55

€2.910,55

€2.910,55 - €2.910,55

€2.910,55

Verfügbarkeit:

Auf Lager

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

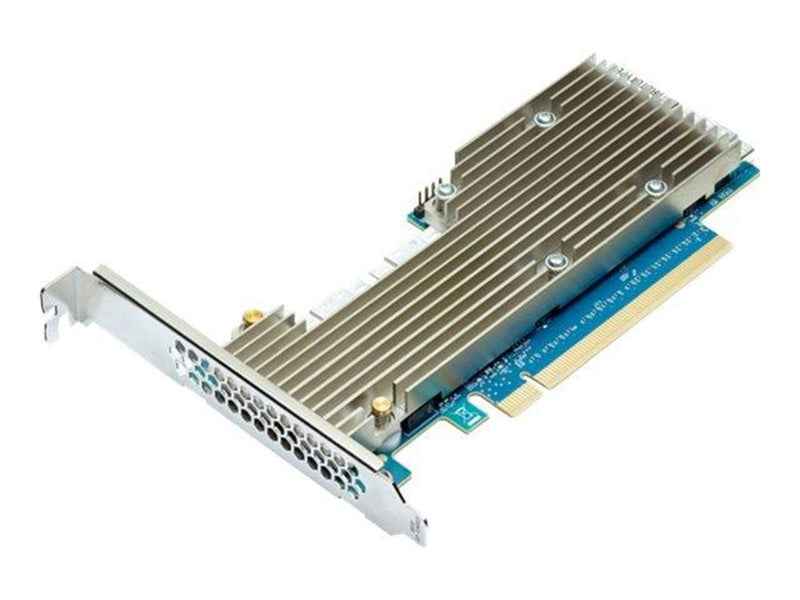

The Broadcom P411W-32P is the industry's first fully managed Gen 4 NVMe switch adapter, providing enterprise class options for NVMe solid state drive (SSD) attach requirements. The P411W-32P leverages Broadcom's world-class board design, PEX88048 PCIe Gen 4 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. The P411W-32P switch adapter delivers several innovative features, including true surprise add and removal, Downstream Port Containment and Read Tracking, which can help the users avoid typical situations that could cause a kernel panic. The integrated management processor delivers added features, such as SES compatible LED control and BMC support.

Generell
Hersteller:	Broadcom
Waren-Nr.:	3187298
Modell:	05-50054-00
EAN:	830343007530
Zum Hersteller::
Produktbeschreibung:	Broadcom P411W-32P - Speicher-Controller - NVMe - PCIe 4.0 x16
Gerätetyp:	Speicher-Controller - Plug-in-Karte - Low-Profile
Bustyp:	PCIe 4.0 x16
Schnittstelle:	NVMe
Unterstützte Geräte:	Solid State-Laufwerk
Max. Anzahl Speicherperipheriegeräte:	32
Abmessungen (Breite x Tiefe x Höhe):	15.59 cm x 6.89 cm

Allgemein
Gerätetyp:	Speicher-Controller - Plug-in-Karte - Low-Profile
Host-Bus:	PCIe 4.0 x16
Massenspeicher-Controller
Schnittstelle:	NVMe
Unterstützte Geräte:	Solid State-Laufwerk
Max. Anzahl Speicherperipheriegeräte:	32
Prozessor:	Broadcom PEX88048
Erweiterung/Konnektivität
Schnittstellen:	4 x NVMe - Slim SAS (SFF-8654)
Verbindungen:	1 x PCIe 4.0 x16 - PCI Express
Verschiedenes
Leistungsmerkmale:	SecureBoot, kompatibel mit Universal Bay Management (UBM)
MTBF:	5,000,000 Stunden
Kennzeichnung:	EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
Stromversorgung
Leistungsaufnahme im Betrieb:	21 Watt
Abmessungen und Gewicht
Tiefe:	15.59 cm
Höhe:	6.89 cm
