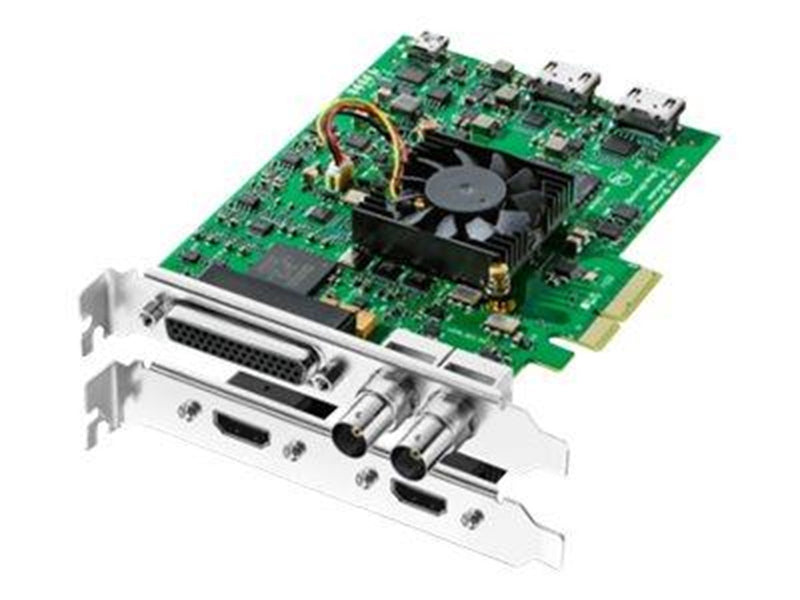

Blackmagic DeckLink Studio 4K
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Blackmagic |
| Waren-Nr.: | 3155774 |
| Modell: | BM-BDLKSTUDIO4K |
| EAN: | 9338716002539 |
| Zum Hersteller:: | / |
| Produktbeschreibung: | Blackmagic DeckLink Studio 4K - Videoaufnahmeadapter - PCIe 2.0 x4 |
| Gerätetyp: | Videoaufnahmeadapter |
| Schnittstellen Typ: | PCIe 2.0 x4 |
| Abmessungen (Breite x Tiefe x Höhe): | 14.09 cm |
| Gewicht: | 166 g |
| Enthaltenes Zubehör für Eingabeadapter: | HDMI-Halterung |
| Videoeingang: | S-Video-Eingang, S-Video-Ausgang, Composite-Video-Eingang, Composite-Video-Ausgang, Component-Video-Eingang, Component-Video-Ausgang, HD-SDI-Eingang, HD-SDI-Ausgang, HDMI-Eingang, HDMI-Ausgang |
| Video-Modi: | 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/30p, 1080/24sF, 1080/25sF, 1080/30sF, 2160/50p |
| Analoges Videoformat: | NTSC, PAL |
| Analoges Videosignal: | S-Video, Composite Video, Component Video |
| Bildkomprimierungsformat: | YUV 4:2:2, YUV 4:4:4 |
| Digital-Video-Format: | MPEG-2, DV, DVCPRO, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes LT, ProRes 422 Proxy |
| Auflösung der digitalen Videoaufzeichnung: | 1920 x 1080, 3840 x 2160, 4096 x 2160, 2048 x 1080 |
| Audioeingabeunterstützung: | Standard |
| Soundeingabemodus: | 24-Bit - Max. Abtastfrequenz: 48 kHz |
| Erforderliches Betriebssystem: | Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Apple MacOS X 10.11 oder höher, Apple macOS Sierra 10.12, Apple macOS High Sierra 10.13 |
| Allgemein | |
| Gerätetyp: | Videoaufnahmeadapter |
| Schnittstellen Typ: | PCIe 2.0 x4 |
| Breite: | 14.09 cm |
| Gewicht: | 166 g |
| Video | |
| Schnittstellen Typ: | S-Video-Eingang, S-Video-Ausgang, Composite-Video-Eingang, Composite-Video-Ausgang, Component-Video-Eingang, Component-Video-Ausgang, HD-SDI-Eingang, HD-SDI-Ausgang, HDMI-Eingang, HDMI-Ausgang |
| Video-Modi: | 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/30p, 1080/24sF, 1080/25sF, 1080/30sF, 2160/50p |
| Analoges Videoformat: | NTSC, PAL |
| Analoges Videosignal: | S-Video, Composite Video, Component Video |
| Bildkomprimierungsformat: | YUV 4:2:2, YUV 4:4:4 |
| Digital-Video-Format: | MPEG-2, DV, DVCPRO, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes LT, ProRes 422 Proxy |
| Auflösung der digitalen Videoaufzeichnung: | 1920 x 1080, 3840 x 2160, 4096 x 2160, 2048 x 1080 |
| Audioeingabeunterstützung: | Standard |
| Audio Sampling Format: | Stereo 24-Bit / 48 kHz |
| Audioeingang | |
| Datenbreite: | 24-Bit |
| Max Abtastfrequenz: | 48 kHz |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x Audio / Video - 6G-SDI-Eingang 1 x Audio / Video - 6G-SDI-Ausgang 1 x Audio / Video - HDMI-Eingang 1 x Audio / Video - HDMI-Ausgang 1 x Verwaltung - RS-422 |
| Kompatible Steckplätze: | 1 x PCI Express 2.0 x4 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | HDMI-Halterung |
| Enthaltene Kabel: | Kabelpeitsche |
| Kennzeichnung: | C-Tick, FCC |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 22 Watt |
| Software / Systemanforderungen | |
| Software inbegriffen: | Treiber & Dienstprogramme, Blackmagic Media Express, Blackmagic Disk Speed Test, Blackmagic LiveKey, Blackmagic Desktop Video Utility |
| Erforderliches Betriebssystem: | Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Apple MacOS X 10.11 oder höher, Apple macOS Sierra 10.12, Apple macOS High Sierra 10.13 |
