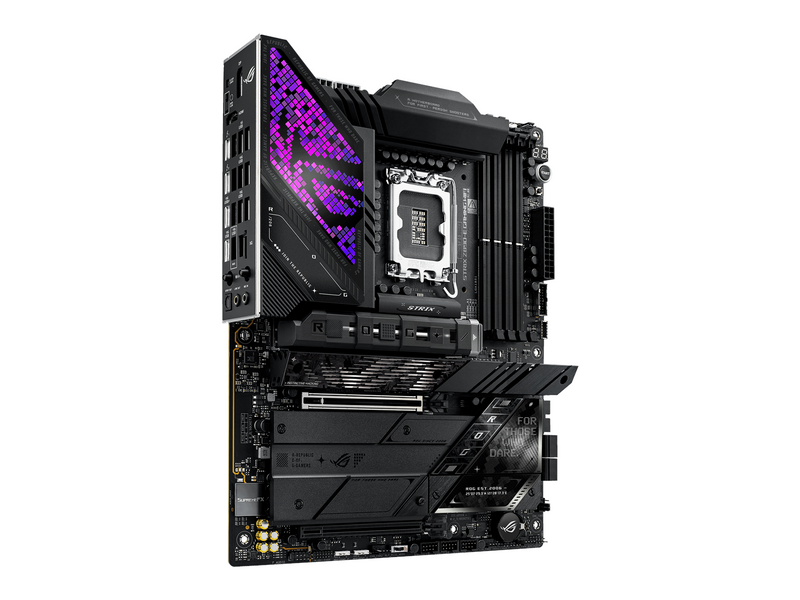

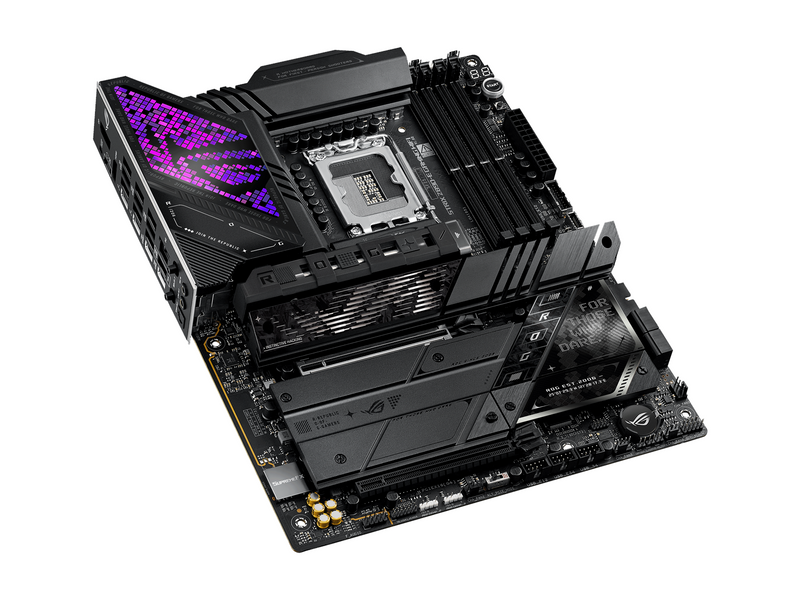

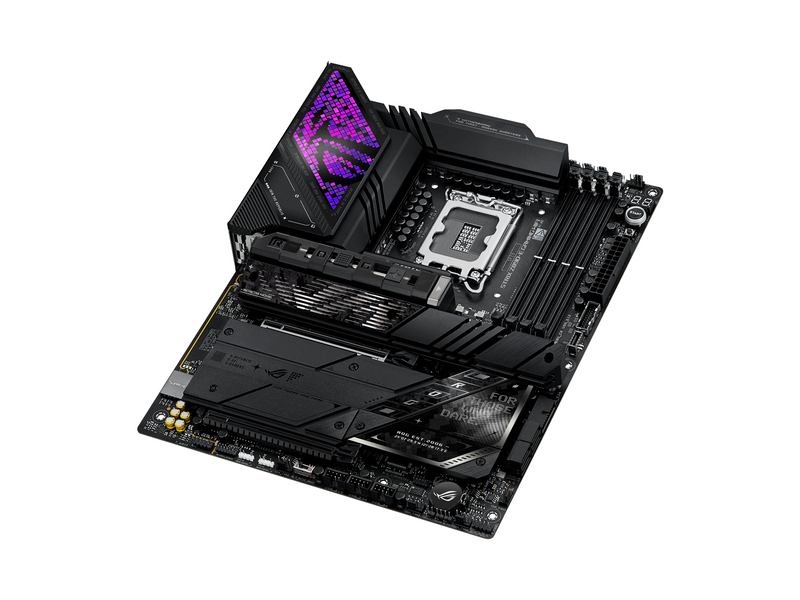

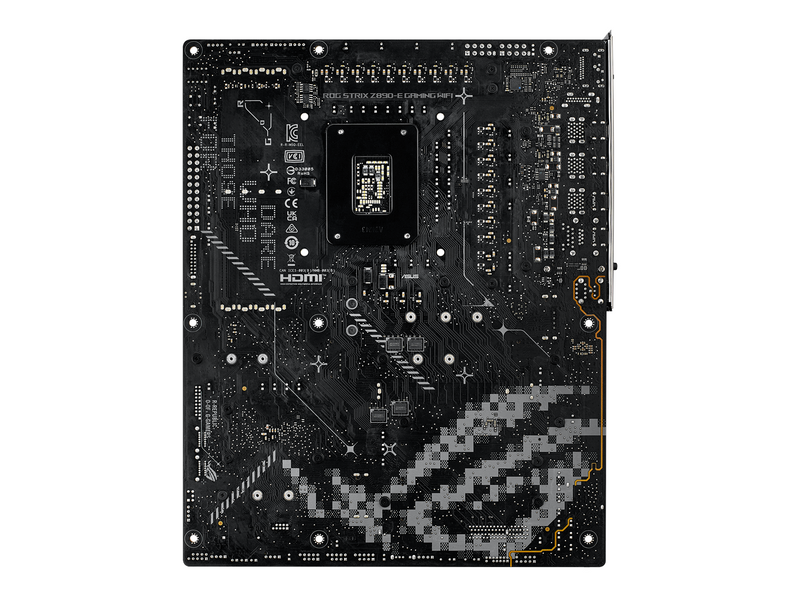

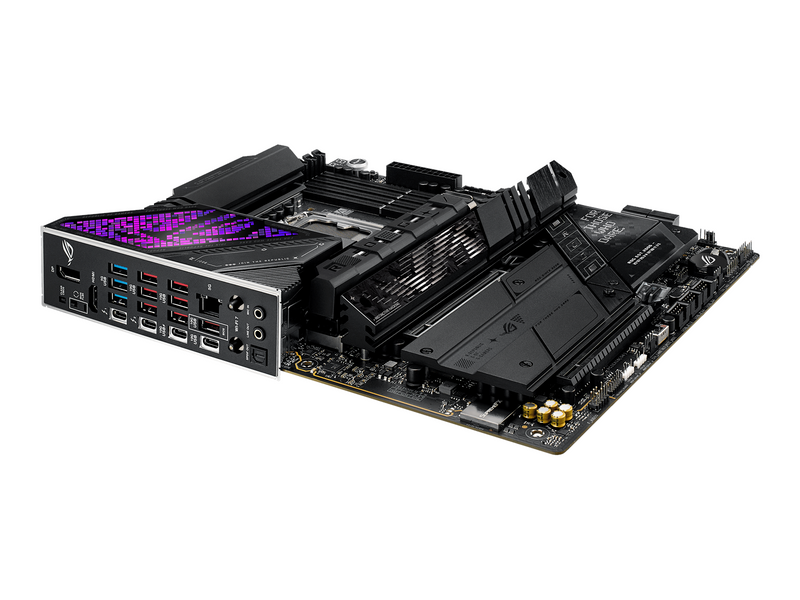

ASUS ROG STRIX Z890-E GAMING WIFI Mainboard - Intel Z890 - Intel LGA1851 - DDR5 RAM - ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mainboard, größe: ATX, Intel LGA1851 socket, Intel Z890 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), speicheranschlüsse: 4 x SATA-600 / 4 x M.2 NVMe PCI-Express 4.0 / 3 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 4.0 type A & C (mit ThunderBolt), monitorverbindung: 1 x Displayport 1.4 / 1 x HDMI 2.1 / 2 x ThunderBolt 4, Realtek 5 Gigabit netzwerk (LAN), WiFi 7 & Bluetooth 5.4, Intel Xe Graphics unterstützt (CPU mit VGA erforderlich), Realtek ALC4080 HD Audio (8-Kanäle) soundkarte, ASUS AURA Sync software
The ASUS PRIME Z890M-PLUS WIFI motherboard combines powerful functionality with modern connectivity options, making it a choice for building a high-performance system. With support for Intel Core Ultra processors and compatibility with DDR5 SDRAM, this motherboard is prepared to handle the demands of advanced computing tasks. The micro ATX form factor ensures efficient use of space while providing ample expansion slots for future upgrades.
Featuring an impressive range of connectivity options, the motherboard includes multiple USB ports, one HDMI port, one DisplayPort, and a 2.5 Gigabit Ethernet port. High definition audio (8-channel) ensures an immersive multimedia experience. The board also integrates ASUS's innovative technologies such as AI Cooling II, Aura Sync RGB lighting, and Turbo Boost capabilities, allowing users to optimize performance efficiently. With a robust design and thoughtful features, the ASUS PRIME Z890M-PLUS WIFI offers a balance of performance and versatility for both gamers and professionals.
Generell
| Hersteller | ASUS |
| Waren-Nr. | 3301903 |
| Modell | 90MB1IM0-M0EAY0 |
| EAN | 4711387756133 |
| Zum Hersteller | rog.asus.com/motherboards/rog-strix/rog-... |
| Kontaktieren Sie den Hersteller | qr.asus.com/ProductSafety |
| Produktbeschreibung | ASUS ROG STRIX Z890-E GAMING WIFI - Motherboard - ATX - LGA1851 Sockel - Z890 |
| Produkttyp | Motherboard - ATX |
| Chipsatz | Intel Z890 |
| Prozessorsockel | 1 x LGA1851 Sockel |
| Kompatible Prozessoren | (unterstützt Intel Core Ultra-Prozessoren (Serie 2)) |
| Max. RAM-Größe | 192 GB |
| Unterstütztes RAM | 4 DIMM-Steckplätze - DDR5, non-ECC, on-die ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 4 x SATA-600 (RAID), 7 x M.2 |
| USB-/FireWire-Anschlüsse | 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Technische Daten
| Allgemein | |
| Produkttyp | Motherboard - ATX |
| Chipsatz | Intel Z890 |
| Prozessorsockel | LGA1851 Sockel |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | (unterstützt Intel Core Ultra-Prozessoren (Serie 2)) |
| Unterstützter RAM | |
| Max. Größe | 192 GB |
| Technologie | DDR5 |
| Bustakt | 4400 MHz (O.C.), 4600 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC, on-die ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP), NitroPath-Technologie |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Audio Codec | SupremeFX (ALC4080) |
| Kompatibilität | High-Definition-Audio, Dolby Atmos |
| LAN | |
| Netzwerkschnittstellen | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-Modus) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M Steckplatz) 3 x M.2 socket (2242/2260/2280 M.2 Key M Steckplatz) 3 x M.2 socket (2280 M.2-Steckplatz) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -anschlussstellen: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Schnittstellen | 2 x Thunderbolt 4/DisplayPort/USB4 7 x USB 3.2 Gen 2 2 x USB-C 3.2 Gen 2 3 x USB 3.2 Gen 1 1 x HDMI 1 x LAN (5Gigabit Ethernet) 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 2 x Antenne 1 x DisplayPort 1 x SPDIF-Ausgang |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 2x2 - Stiftleiste 4 x USB 3.2 Gen 1 - Stiftleiste 6 x USB 2.0 - Stiftleiste 1 x Audio - Stiftleiste 1 x Thunderbolt 4 - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ-Modus |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | Intel Turbo Boost Technologie 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM-Unterstützung, DIY Friendly Design, AI Cooling II, VRM Kühlkörperdesign, M.2 Kühlkörper, M.2 Kühlkörper Rückplatte, LANGuard, BIOS FlashBack-Taste, Transparente CMOS-Taste, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, ASUS SafeSlot, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack-LED, PCIe Slot Q-Release, vormontiertes E/A-Schild, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Slot, CrashFree BIOS 3, Preboot eXecution Environment (PXE), KI Übertaktung, KI Netzwerktechnologie II, NPU Boost, 18+1+2+2 Phasen Stromdesign, ASUS Enhanced Memory Profile (AEMP) III, Polymo Lighting, 8 Layer PCB |
| Verschiedenes | |
| Zubehör im Lieferumfang | Thermal-Pad für M.2 SSD, 2 x M.2 Q-Slides, 7 x M.2 Gummis, ASUS Wi-Fi Q-antenna, Kabelbinder, M.2 Q-Latch, ROG Schlüsselanhänger, ROG Strix-Aufkleber |
| Enthaltene Kabel | 2 x SATA Express-Kabel |
| Software inbegriffen | Adobe Creative Cloud (kostenlose Testversion), AIDA64 Extreme (60 Tage Testversion), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 für Gamer (60 Tage Testversion), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial) |
| Kennzeichnung | DisplayPort 1.4 |
| Breite | 30.5 cm |
| Tiefe | 24.4 cm |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
