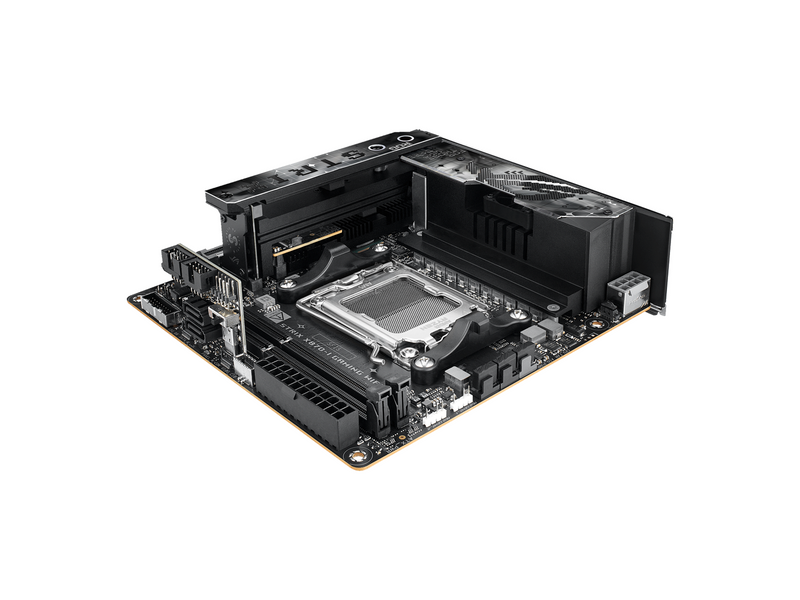

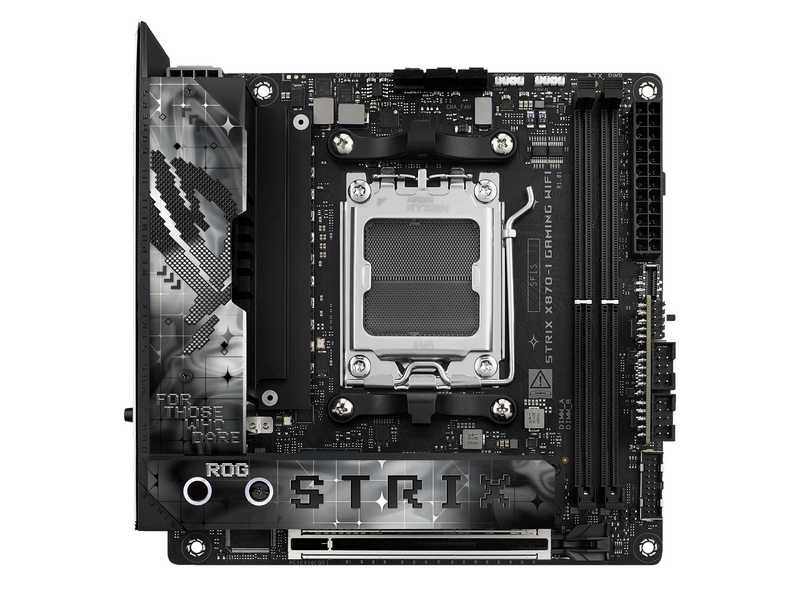

ASUS ROG STRIX X870-I GAMING WIFI Mainboard - AMD X870 - AMD AM5 - DDR5 RAM - Mini-ITX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mainboard, größe: Mini-ITX, AMD AM5 socket, AMD X870 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-6400 2 x DIMM slots (AMD EXPO support), speicheranschlüsse: 2 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 4.0 type A & C, monitorverbindung: 2 x Displayport 1.4 (via USB-C) / 1 x HDMI 2.1, Intel I225-V 2.5 Gigabit netzwerk (LAN), WiFi 7 & Bluetooth 5.4, AMD Graphics unterstützt (CPU mit VGA erforderlich), Realtek HD Audio (8-Kanäle) soundkarte, ASUS AURA Sync software
The ASUS PRIME X870-P motherboard is designed for those who seek performance and versatility in their PC builds. With support for the AMD Ryzen 7000/8000/9000 Series processors and DDR5 SDRAM technology, this motherboard ensures fast and efficient multitasking capabilities. Featuring a robust 14+2+1 Phase Power Design and comprehensive cooling solutions, including AI Cooling II and a VRM heatsink design, it maintains stability under heavy load.
Equipped with multiple interfaces, this motherboard includes PCIe 5.0 and PCIe 4.0 slots, allowing for high-speed expansion options along with a variety of USB ports including USB4, ensuring seamless connectivity. For storage, it supports up to 4 x M.2 sockets and 2 x SATA-600 ports configured for RAID, making it a choice for users looking to maximize storage capabilities. The inclusion of ASUS Aura Sync provides personalized RGB lighting, enhancing the visual appeal of any setup.
Generell
| Hersteller | ASUS |
| Waren-Nr. | 3295130 |
| Modell | 90MB1IW0-M0EAY0 |
| EAN | 4711387740309 |
| Zum Hersteller | rog.asus.com/motherboards/rog-strix/rog-... |
| Kontaktieren Sie den Hersteller | qr.asus.com/ProductSafety |
| Produktbeschreibung | ASUS ROG STRIX X870-I GAMING WIFI - Motherboard - Mini-ITX - Socket AM5 - AMD X870 |
| Produkttyp | Motherboard - Mini-ITX |
| Chipsatz | AMD X870 |
| Prozessorsockel | 1 x Socket AM5 |
| Kompatible Prozessoren | (unterstützt Ryzen 7000/8000/9000 Serie) |
| Max. RAM-Größe | 96 GB |
| Unterstütztes RAM | 2 DIMM-Steckplätze - DDR5, non-ECC, ECC, on-die ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 2 x M.2 |
| USB-/FireWire-Anschlüsse | 2 x USB4 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet |
Technische Daten
| Allgemein | |
| Produkttyp | Motherboard - Mini-ITX |
| Chipsatz | AMD X870 |
| Prozessorsockel | Socket AM5 |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | (unterstützt Ryzen 7000/8000/9000 Serie) |
| Unterstützter RAM | |
| Max. Größe | 96 GB |
| Technologie | DDR5 |
| Bustakt | 4200 MHz (O.C.), 4300 MHz (O.C.), 4000 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC, ECC, on-die ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, AMD EXPO-Technologie |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Audio Codec | ESS SABRE9260Q |
| Kompatibilität | High-Definition-Audio, Dolby Atmos |
| LAN | |
| Netzwerkschnittstellen | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU 2 x DIMM 288-polig 1 x PCIe 5.0 x16 1 x M.2 socket (2280 M.2 Key M Slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen | PCIe 5.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| RAID-Merkmale | AMD RAID Xpert2 Technologie |
| Schnittstellen | 2 x Thunderbolt 4/DisplayPort/USB4 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 2 2 x Antenne 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 2x2 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-Modus |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), AMD Precision Boost Overdrive (PBO), Core Flex-Technologie, ASUS Q-Design, ASUS SafeSlot, M.2 Q-Latch, PCIe Slot Q-Release, Q-Release Slim, Aluminium-Rückplatte, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack-Taste, BIOS FlashBack-LED, Transparente CMOS-Taste, M.2 Kühlkörper, vormontiertes E/A-Schild, Q-Antenna, Q-DIMM, Q-LED, Q-Slot, AI Cooling II, KI Netzwerktechnologie II, 10+2+1 Phasen Leistungsdesign, KI Übertaktung |
| Verschiedenes | |
| Zubehör im Lieferumfang | ROG STRIX HIVE II, ASUS Wi-Fi Q-antenna, Kabelbinder, M.2 Rückplatte Gummipaket, M.2 Q-Latch, ROG Schlüsselanhänger, ROG Strix-Aufkleber, ROG FPS Karte, Paneelkabel |
| Enthaltene Kabel | 2 x SATA Express-Kabel 1 x USB-C zu USB-C Kabel 1 x USB 2.0 Splitterkabel |
| Software inbegriffen | ROG CPU-Z, Adobe Creative Cloud (kostenlose Testversion), AIDA64 Extreme (60 Tage Testversion), ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 für Gamer (60 Tage Testversion), ROG GameFirst Utility, WinRAR (40 days trial) |
| Kennzeichnung | DisplayPort 1.4a |
| Breite | 17 cm |
| Tiefe | 17 cm |
