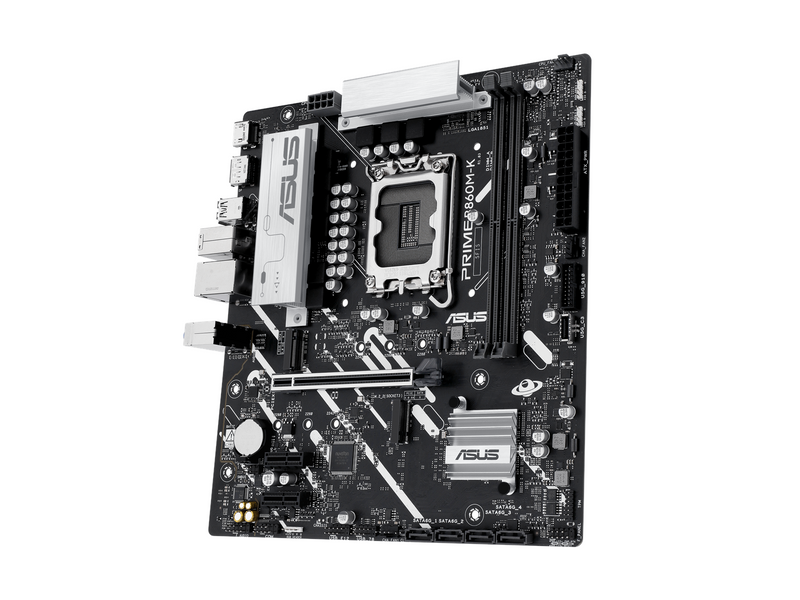

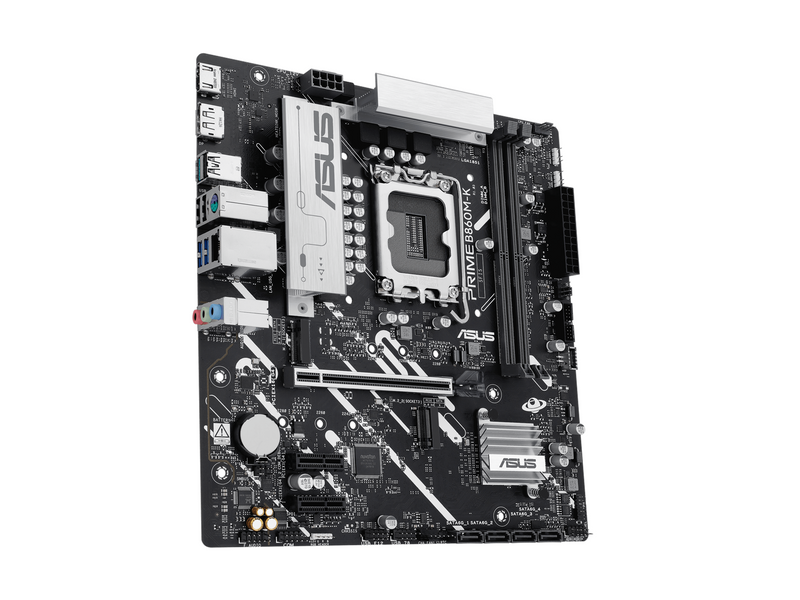

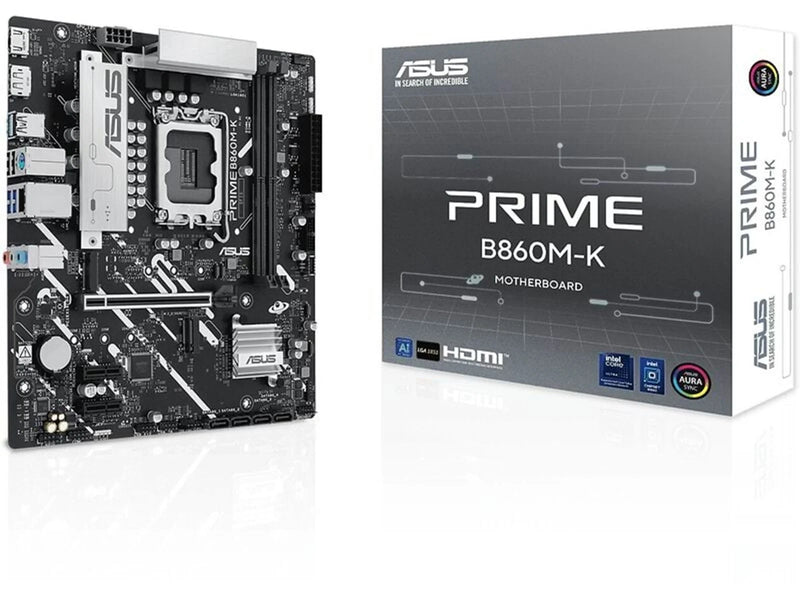

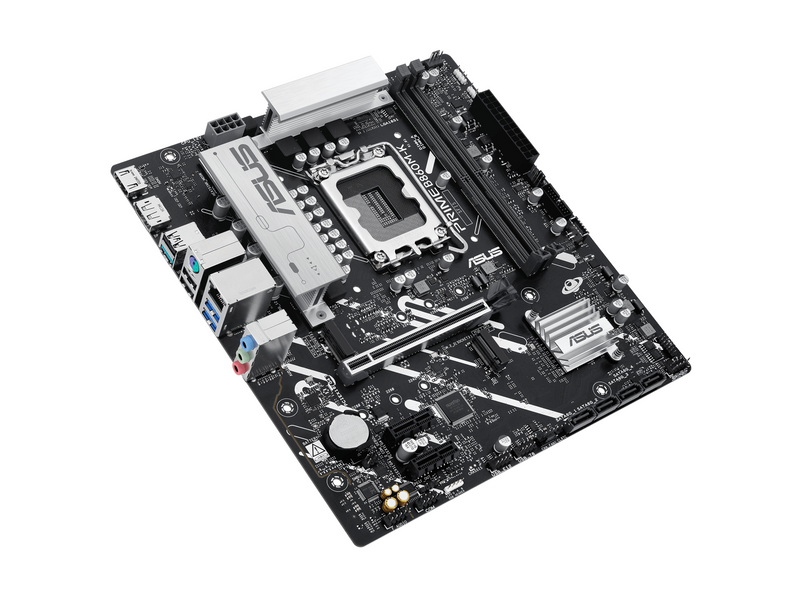

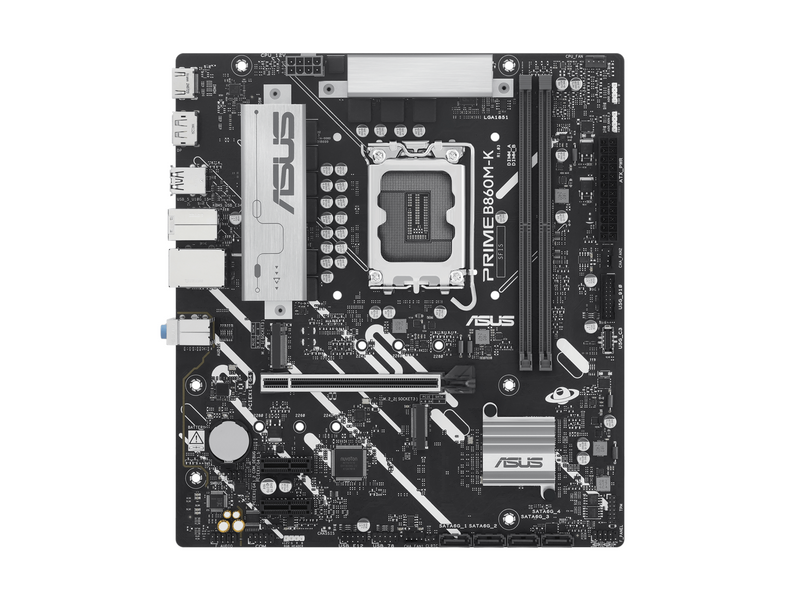

ASUS PRIME B860M-K Mainboard - Intel B860 - Intel LGA1851 - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mainboard, größe: Micro-ATX, Intel LGA1851 socket, Intel B860 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 2 x DIMM slots (Intel XMP support), speicheranschlüsse: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, monitorverbindung: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 2.5 Gigabit netzwerk (LAN), Intel Xe Graphics unterstützt (CPU mit VGA erforderlich), Realtek HD Audio (8-Kanäle) soundkarte, ASUS AURA Sync software
The ASUS PRIME B860M-K motherboard combines advanced technology with high performance, making it a reliable choice for building a versatile and efficient PC. Equipped with a micro ATX form factor, it supports Intel Core Ultra processors and features Intel B860 chipset, ensuring compatibility with a wide range of components. Experience superior memory performance with support for DDR5 SDRAM at speeds up to 4400 MHz, alongside two DIMM slots for dual-channel memory architecture. Connectivity is optimized with multiple USB ports including USB 3.2 Gen 1, USB 3.2 Gen 2, and USB-C options for rapid data transfer. The motherboard offers expansive storage solutions with four SATA-600 RAID ports and two M.2 slots, allowing for flexible and high-speed storage configurations. Enjoy audio quality through high definition audio output, enhanced by ASUS advanced features like LANGuard and overvoltage protection, ensuring a secure and seamless computing experience.
Generell
| Hersteller | ASUS |
| Waren-Nr. | 3324879 |
| Modell | 90MB1JT0-M0EAY0 |
| EAN | 4711387808498 |
| Zum Hersteller | www.asus.com/motherboards-components/mot... |
| Kontaktieren Sie den Hersteller | qr.asus.com/ProductSafety |
| Produktbeschreibung | ASUS PRIME B860M-K - Motherboard - micro ATX - LGA1851 Sockel - B860 |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | Intel B860 |
| Prozessorsockel | 1 x LGA1851 Sockel |
| Kompatible Prozessoren | (unterstützt Intel Core Ultra-Prozessoren (Serie 2)) |
| Max. RAM-Größe | 128 GB |
| Unterstütztes RAM | 2 DIMM-Steckplätze - DDR5, non-ECC, on-die ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 4 x SATA-600 (RAID), 2 x M.2 |
| USB-/FireWire-Anschlüsse | 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 3 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 2.5 Gigabit Ethernet |
Technische Daten
| Allgemein | |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | Intel B860 |
| Prozessorsockel | LGA1851 Sockel |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | (unterstützt Intel Core Ultra-Prozessoren (Serie 2)) |
| Unterstützter RAM | |
| Max. Größe | 128 GB |
| Technologie | DDR5 |
| Bustakt | 4400 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC, on-die ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Intel Extreme Memory Profiles (XMP), Zwei-Kanal-Speicherarchitektur |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Kompatibilität | High-Definition-Audio |
| LAN | |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU 2 x DIMM 288-polig 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 1 x M.2 PCIe 5.0 -anschlussstellen: 1 x M.2 |
| RAID-Merkmale | Intel Rapid Storage Technology |

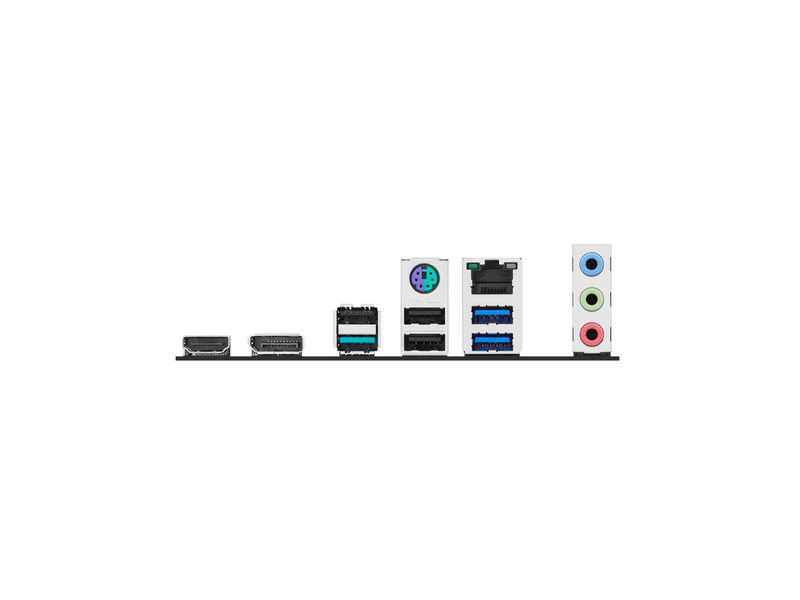

| Schnittstellen | 1 x HDMI 1 x DisplayPort 2 x USB 3.2 Gen 1 3 x USB 2.0 1 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 1 x Mikrofon - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 1 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 4 x USB 2.0 - Stiftleiste 1 x Seriell - Stiftleiste 1 x Audio - Stiftleiste 1 x SPDIF-Ausgang - Stiftleiste 1 x SPI - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ-Modus |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | Preboot eXecution Environment (PXE), ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, Überspannungsschutz, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM Kühlkörperdesign, ASUS EZ DIY, ASUS ProCool, 6+1+1+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, ASUS Aura Sync, ProCool Power Connector, ASUS Fan Xpert 2+ |
| Verschiedenes | |

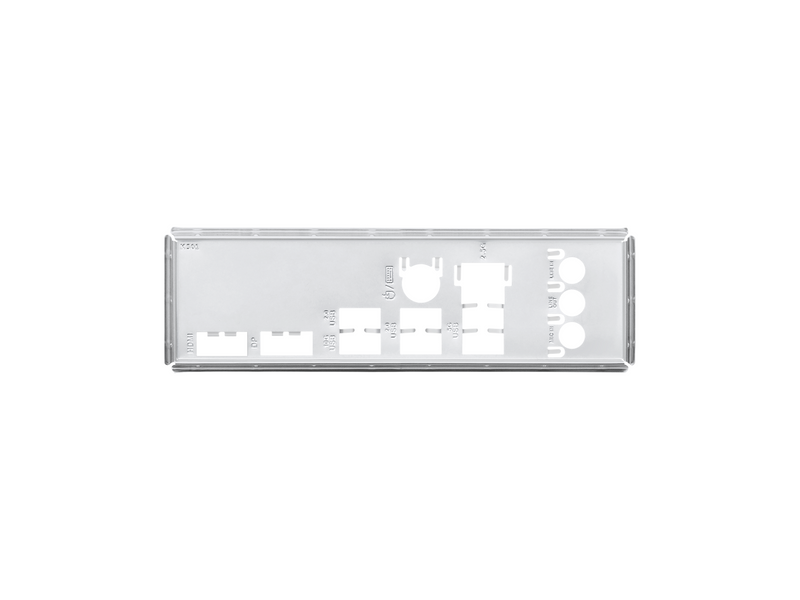

| Zubehör im Lieferumfang | Vollformat I/O-Schild, 1 x M.2 Anker |
| Enthaltene Kabel | 2 x Serial ATA-Kabel |
| Software inbegriffen | Armoury Crate, ASUS Fan Xpert 2+, ASUS CPU-Z, ASUS AI Advisor, ASUS DriverHub, Norton 360 Deluxe (60-Tage-Testversion), WinRAR (40 days trial) |
| Breite | 24.4 cm |
| Tiefe | 22.2 cm |
| Verpackungsdetails | Box |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
