ASRock B760M-H2/M.2 Mainboard - Intel B760 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX

Name: ASRock B760M-H2/M.2 Mainboard - Intel B760 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX
Brand: TechStore
SKU: 3237786
Price: 345.04 EUR
Availability: InStock

€345,04 - €345,04

€345,04

€345,04 - €345,04

€345,04

Verfügbarkeit:

Auf Lager

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

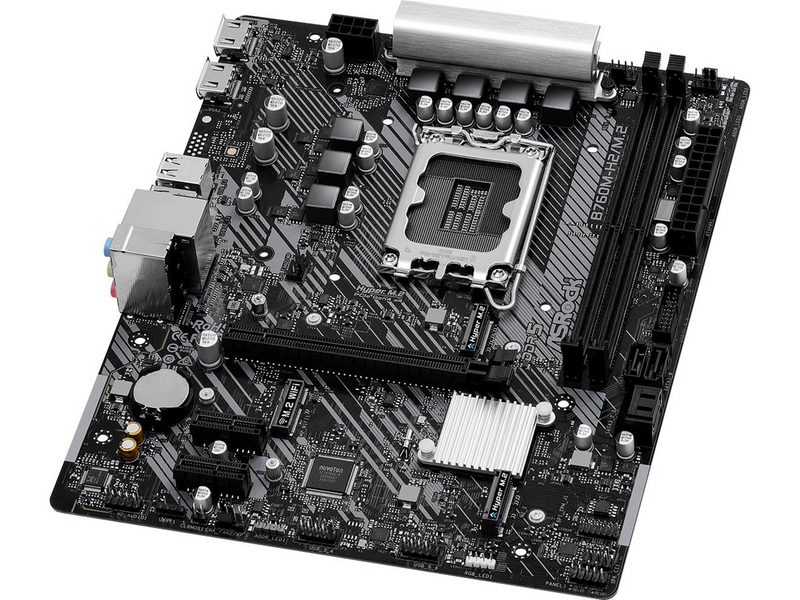

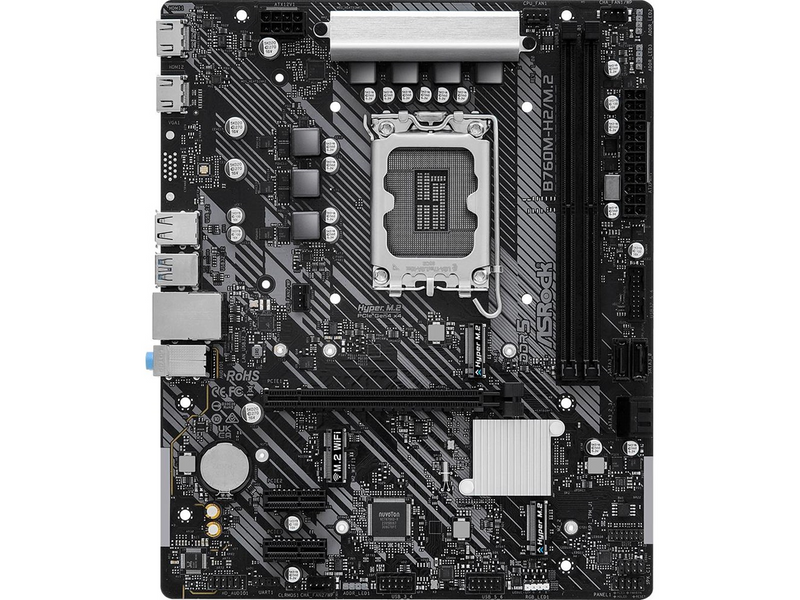

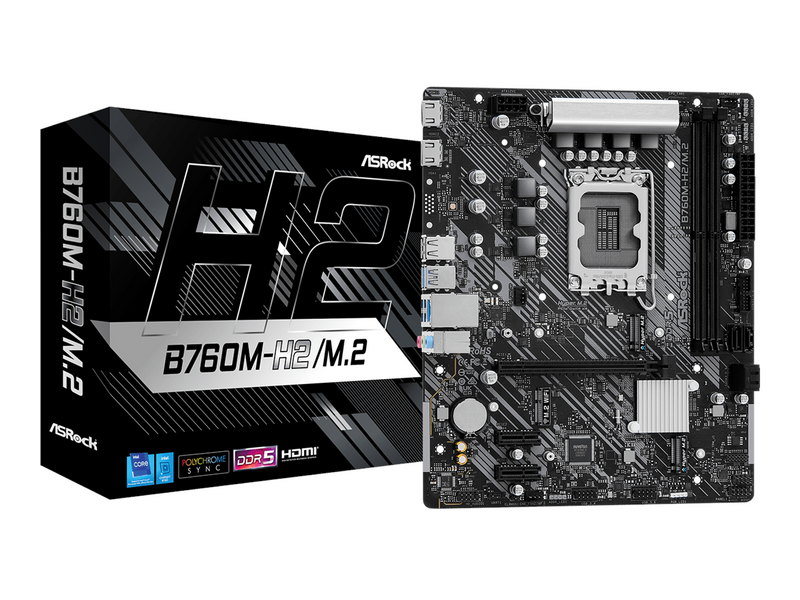

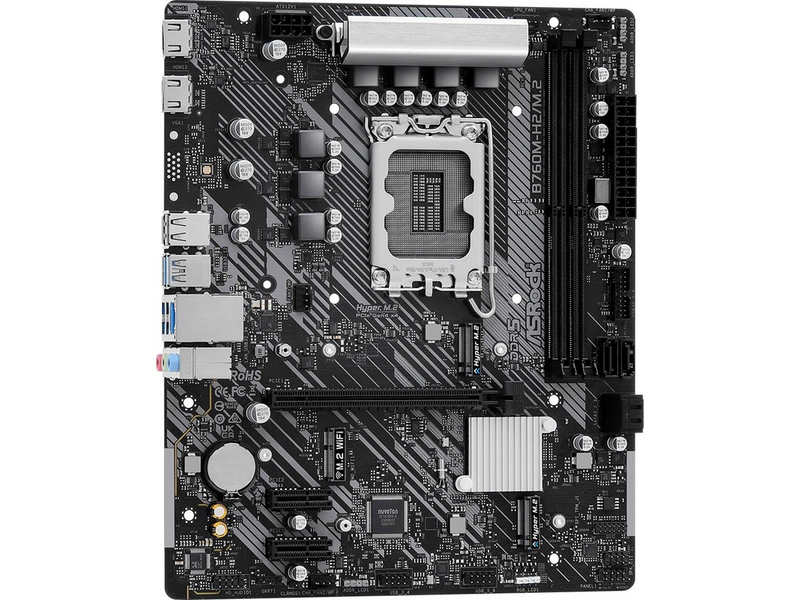

Discover the ASRock B760M-H2/M.2 motherboard, designed to elevate your computing experience. This micro ATX motherboard is compatible with 12th, 13th, and 14th Generation Intel Core processors, ensuring versatility and power for a range of uses from gaming to intensive workloads. With support for DDR5 SDRAM at speeds up to 7200 MHz (O.C.), it provides the bandwidth needed for high-speed data processing and multitasking. The inclusion of 2.5 Gigabit Ethernet offers rapid network connections, reducing lag and improving online interactions. Audio enthusiasts will appreciate the high definition audio powered by the Realtek ALC897 codec, delivering crystal-clear sound. Storage options are abundant, with 4 SATA-600 ports and 2 Hyper M.2 sockets, facilitating quick data access and boot times. The motherboard also features a robust UEFI BIOS with ASRock EZ Mode, making system setup and tuning straightforward and accessible. Whether you're building a new PC or upgrading an existing one, the ASRock B760M-H2/M.2 motherboard offers a solid foundation with its blend of performance, connectivity, and quality.

Generell
Hersteller:	ASRock
Waren-Nr.:	3237786
Modell:	90-MXBN00-A0UAYZ
EAN:	4710483944215
Zum Hersteller::	...
Produktbeschreibung:	ASRock B760M-H2/M.2 - Motherboard - micro ATX - LGA1700-Sockel - B760
Produkttyp:	Motherboard - micro ATX
Chipsatz:	Intel B760
Prozessorsockel:	1 x LGA1700-Sockel
Kompatible Prozessoren:	(unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation)
Max. RAM-Größe:	96 GB
Unterstütztes RAM:	2 DIMM-Steckplätze - DDR5, non-ECC, ECC (Betrieb in Nicht-ECC-Modus), ungepuffert
Massenspeicher-Schnittstellen:	4 x SATA-600 (RAID), 2 x Hyper M.2
USB-/FireWire-Anschlüsse:	4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste)
Audio:	HD Audio (8-Kanal)
LAN:	2.5 Gigabit Ethernet

Allgemein
Produkttyp:	Motherboard - micro ATX
Chipsatz:	Intel B760
Prozessorsockel:	LGA1700-Sockel
Max. Anz. Prozessoren:	1
Kompatible Prozessoren:	(unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation)
Unterstützter RAM
Max. Größe:	96 GB
Technologie:	DDR5
Bustakt:	7200 MHz (O.C.), 6800 MHz (O.C.), 5600 MHz, 5200 MHz
Unterstützte RAM-Integritätsprüfung:	Non-ECC, ECC (Betrieb in Nicht-ECC-Modus)
Registriert oder gepuffert:	Ungepuffert
Besonderheiten:	Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Typ:	HD Audio (8-Kanal)
Audio Codec:	Realtek ALC897
Kompatibilität:	High-Definition-Audio
LAN
Netzwerkcontroller:	Dragon RTL8125BG
Netzwerkschnittstellen:	2.5 Gigabit Ethernet
Erweiterung/Konnektivität
Erweiterungssteckplätze:	1 x CPU 2 x DIMM 288-polig 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E Steckplatz) 1 x M.2 socket (2260/2280 M.2 Key M Slot) 1 x M.2 socket (2280 M.2 Key M Steckplatz)
Speicherschnittstellen:	SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 2 x Hyper M.2

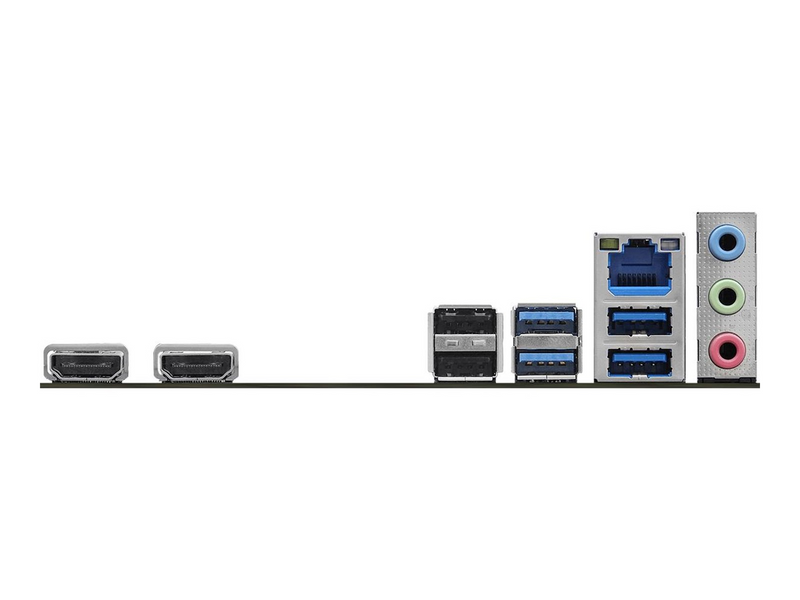

Schnittstellen:	2 x Antenne 2 x HDMI 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker
Interne Schnittstellen:	2 x USB 3.2 Gen 1 - Stiftleiste 4 x USB 2.0 - Stiftleiste 1 x Audio - Stiftleiste
Stromanschlüsse:	Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig
Besonderheiten
BIOS-Typ:	AMI
BIOS-Funktionen:	UEFI BIOS
Hardwarefeatures:	5+1+1 Phase Power Design, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ESD Protection, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI
