ASRock A620AM PRO RS WIFI Mainboard - AMD A620A - AMD AM5 - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mainboard, größe: Micro-ATX, AMD AM5 socket, AMD A620A chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), speicheranschlüsse: 2 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A & C, monitorverbindung: 1 x Displayport 1.4 / 1 x HDMI 2.1, Dragon RTL8125BG 2.5 Gigabit netzwerk (LAN), WiFi 6E & Bluetooth 5.2, AMD Graphics unterstützt (CPU mit VGA erforderlich), Realtek ALC897 HD Audio (8-Kanäle) soundkarte, ASRock Polychrome SYNC software
Dieses Bundle enthält
Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk
Wert 44,99 € Gültig ab 07-10-2024 00:00 - solange der Vorrat reicht

Generell
| Hersteller | ASRock |
| Waren-Nr. | 3414711 |
| Modell | 90-MXBSW0-A0UAYZ |
| EAN | 4711581490956 |
| Produktbeschreibung | ASRock A620AM PRO RS WIFI - Motherboard - micro ATX - Socket AM5 - AMD A620A |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | AMD A620A |
| Prozessorsockel | 1 x Socket AM5 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000/8000/9000 Serie) |
| Max. RAM-Größe | 256 GB |
| Unterstütztes RAM | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 2 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Ultra M.2 |
| USB-/FireWire-Anschlüsse | 1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
Technische Daten
| Allgemein | |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | AMD A620A |
| Prozessorsockel | Socket AM5 |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000/8000/9000 Serie) |
| Unterstützter RAM | |
| Max. Größe | 256 GB |
| Technologie | DDR5 |
| Bustakt | 7200 MT/s (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, AMD EXPO-Technologie, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Audio Codec | Realtek ALC897 |
| Kompatibilität | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller | Dragon RTL8125BG |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (2x-Modus) 1 x M.2 socket (2230 M.2 Key E Slot) 3 x M.2 socket (2260/2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 2 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -anschlussstellen: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 3.0 -anschlussstellen: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10 |

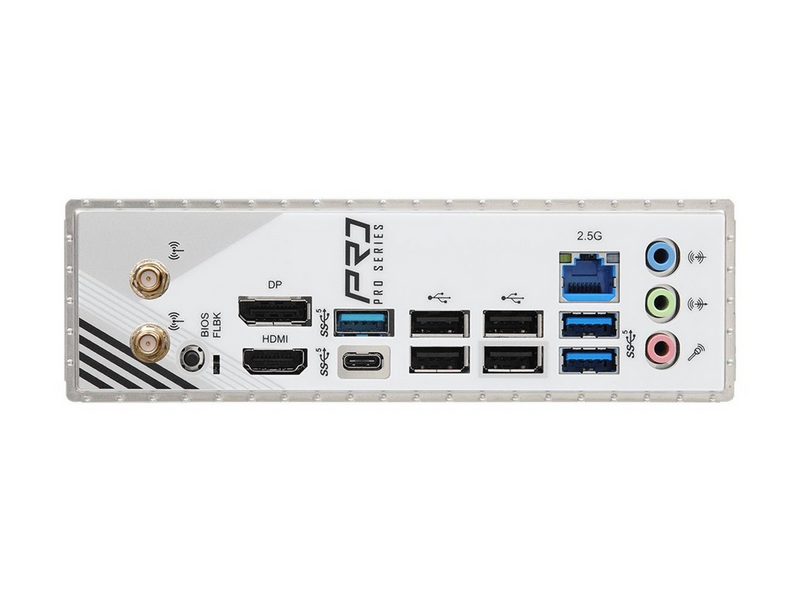

| Schnittstellen | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 2 x Antenne 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker |
| Interne Schnittstellen | 2 x USB 3.2 Gen 1 - Stiftleiste 4 x USB 2.0 - Stiftleiste 1 x Audio - Stiftleiste 1 x SPI - Stiftleiste 1 x USB-C 3.2 Gen 1 - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS |
| Hardwarefeatures | 6+2+1 Phase Power Design, vormontiertes E/A-Schild, BIOS FlashBack-Taste, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Hi-Density Power Connectors, Dr.MOS MOSFET, 6 Layer PCB, Aluminium-Kühlkörperdesign, Nahimic Audio Enhacer, ASRock Polychrome RGB |
| Verschiedenes | |

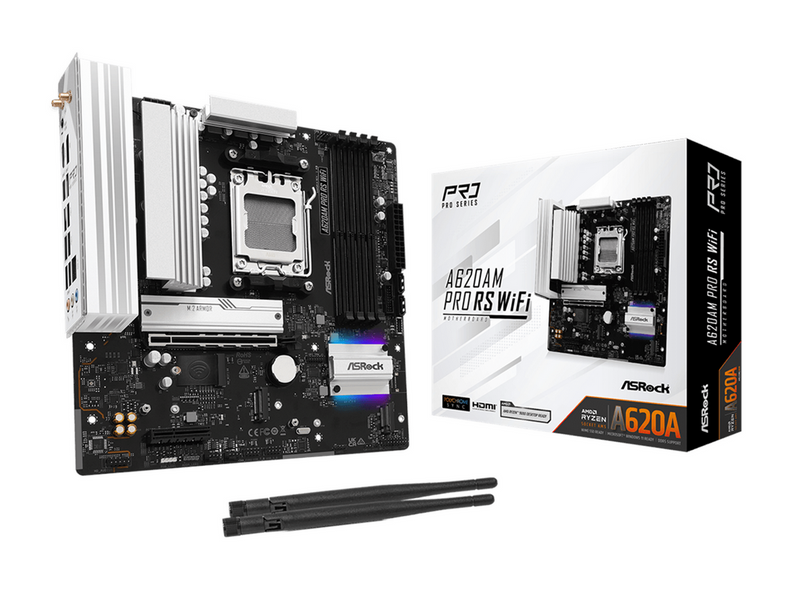

| Zubehör im Lieferumfang | 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 3 x M.2 Schrauben, Standoff für M.2-Sockel |
| Enthaltene Kabel | 2 x Serial ATA-Kabel |
| Software inbegriffen | ASRock A-Tuning, ASRock XFast LAN, ASRock Polychrome SYNC |
| Kennzeichnung | DisplayPort 1.4, FCC Part 15 Subpart B, RoHS, HDCP 2.3, ErP Ready, EuP Ready |
| Breite | 24.4 cm |
| Tiefe | 24.4 cm |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
