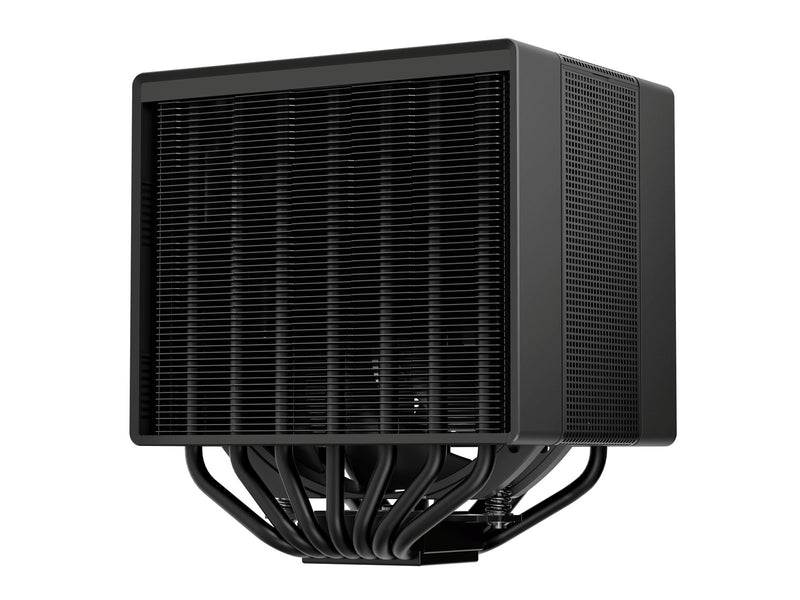

DeepCool ASSASSIN 4S - CPU-Luftkühler - Max 29 dBA
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
CPU-Kühler, luft-Kühler, passt zu AMD Socket AM4 / AM5 & Intel Socket LGA1150 / LGA1151 / LGA1155 / LGA1156 / LGA1200 / LGA1700 / LGA1851, Geräuschpegel: max 29.3 dBA, Luftstrom: max 61.25 CFM, statischer Druck: max 3.76 mmH₂O, Kühler-RPM: 500 - 1800 ± 10%, PWM-gesteuert, 4-Pins PWM & 3-Pins ARGB Anschluss, 1 x 140mm Kühler, 7 Heatpipes, Kühlerhöhe: 160mm, inkl. Kühlpaste, Farbe: schwarz
The ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.
ASSASSIN 4S
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN 4S is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!

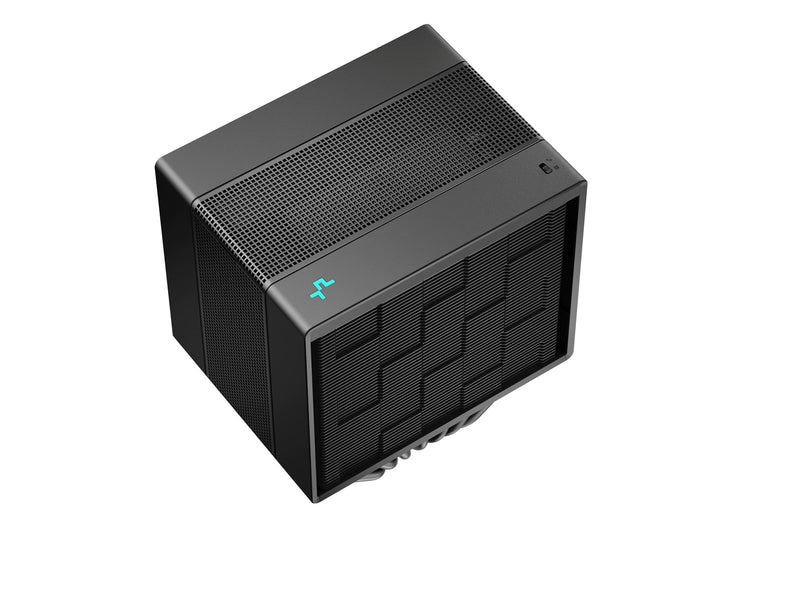

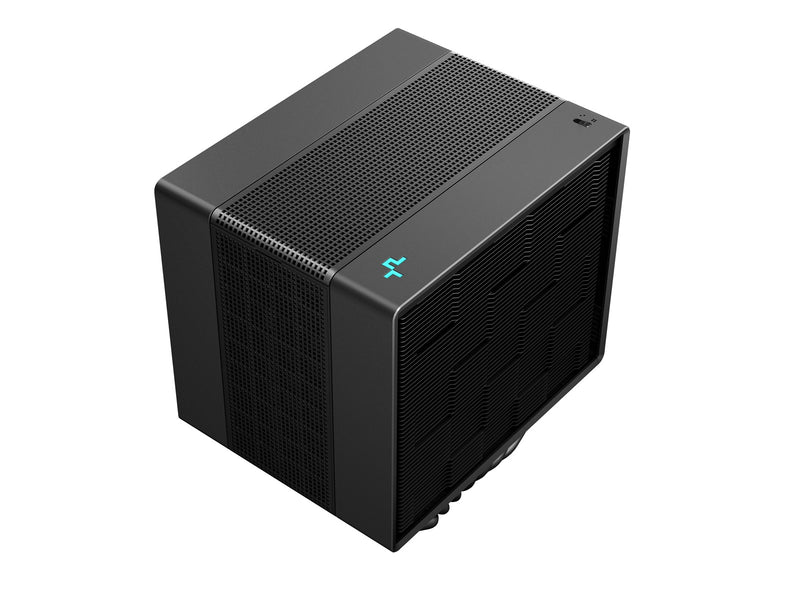

The shell of ASSASSIN 4S is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM

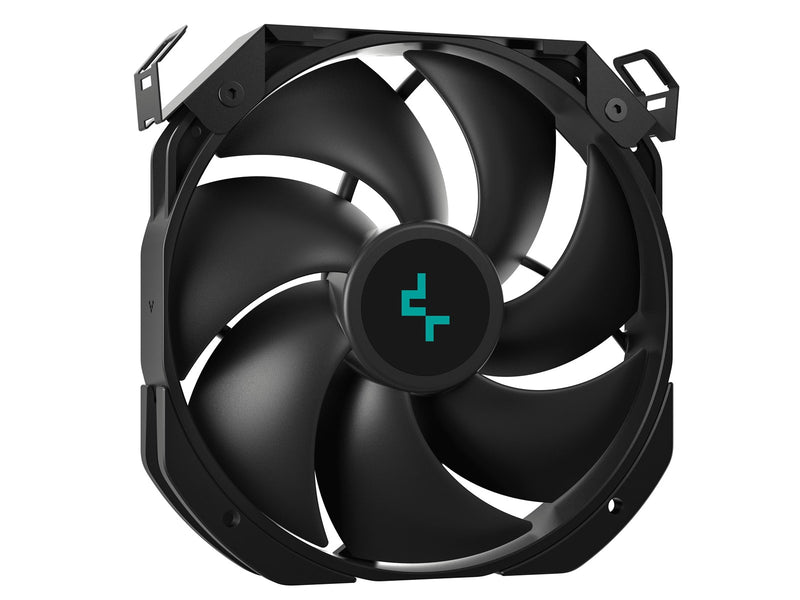

A key factor in the ASSASSIN 4S's extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN

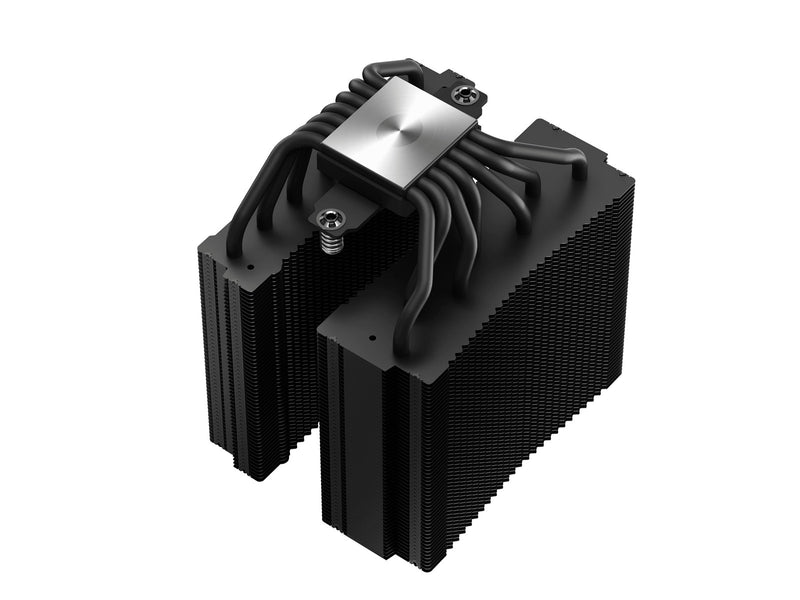

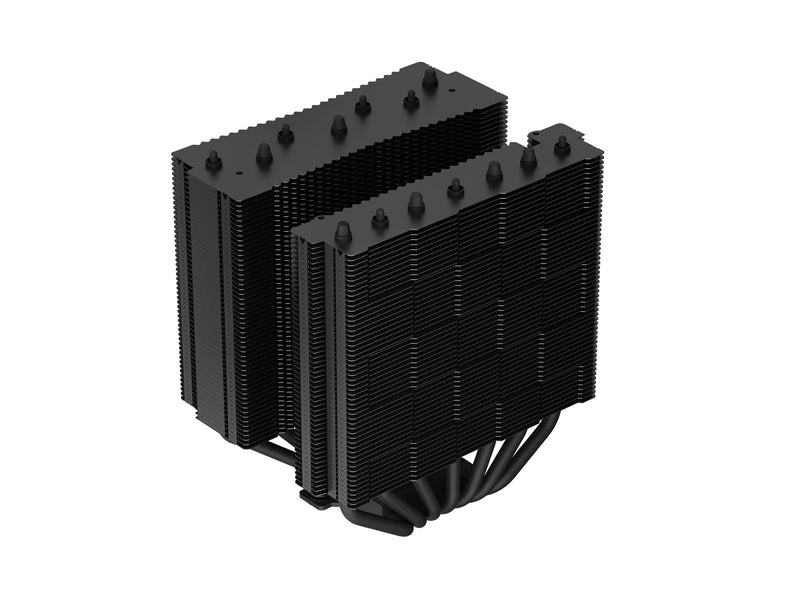

Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN 4S, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Generell
| Hersteller | DeepCool |
| Waren-Nr. | 3252568 |
| Modell | R-ASN4S-BKGPMN-G |
| EAN | 6933412728696 |
| Zum Hersteller | www.deepcool.com/ |
| Empfohlene Platzierung | Prozessor |
| Typ | Luftkühlung |
| Lüfterdurchmesser | 14 cm |
| Unterstützte Prozessorsteckplätze | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Sockel AM4, Sockel AM5 |
| Maximaler Luftstrom | 61,25 cfm |
| Minimum Luftdruck | 2,46 mmH2O |
| Maximum Luftdruck | 3,76 mmH2O |
| Unterstützung der Pulsweitenmodulation | Ja |
| Lagertyp | Fluiddynamisches Lager (FDB) |
| Geräuschpegel Lüfter (mind.) | 22,6 dB |
| Geräuschpegel Lüfter (max.) | 29,3 dB |
| Menge pro Packung | 1 Stück(e) |
| Ventilatoren Geschwindigkeit (min) | 500 RPM |
| Ventilatoren Geschwindigkeit (max) | 1800 RPM |
| Produktfarbe | Schwarz |
| Anzahl Lüfter | 1 Lüfter |
| Anzahl Wärmerohre | 7 |
| Ventilator-Anschluss | 4-polig |
| Stromverbrauch (Standardbetrieb) | 3,6 W |
| Nennspannung | 12 V |
| Stromverbrauch Lüfter | 2,4 W |
| Ventilatoren Spannung | 12 V |
| Ventilatoren Strom | 0,2 A |
| Breite | 147 mm |
| Heizungs-Breite | 11 cm |
| Heizungs-Tiefe | 14 cm |
| Heizungs-Höhe | 16 cm |
| Tiefe | 116 mm |
| Höhe | 164 mm |
| Gewicht | 1,38 kg |
| Abmessungen Gebläse (B x T x H) | 140 x 140 x 25 mm |
| Durchmesser Wärmerohre | 6 mm |
| Verpackungsart | Box |
| Montageset | Ja |
| Schrauben enthalten | Ja |
| CPU-Halterung(en) | Ja |
| Adapterrahmen enthalten | Ja |
Technische Daten
| Leistungen | |
| Empfohlene Platzierung | Prozessor |
| Typ | Luftkühlung |
| Lüfterdurchmesser | 14 cm |
| Unterstützte Prozessorsteckplätze | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Sockel AM4, Sockel AM5 |
| Maximaler Luftstrom | 61,25 cfm |
| Minimum Luftdruck | 2,46 mmH2O |
| Maximum Luftdruck | 3,76 mmH2O |
| Unterstützung der Pulsweitenmodulation | Ja |
| Lagertyp | Fluiddynamisches Lager (FDB) |
| Geräuschpegel Lüfter (mind.) | 22,6 dB |
| Geräuschpegel Lüfter (max.) | 29,3 dB |
| Menge pro Packung | 1 Stück(e) |
| Ventilatoren Geschwindigkeit (min) | 500 RPM |
| Ventilatoren Geschwindigkeit (max) | 1800 RPM |
| Design | |
| Produktfarbe | Schwarz |
| Anzahl Lüfter | 1 Lüfter |
| Anzahl Wärmerohre | 7 |
| Ventilator-Anschluss | 4-polig |
| Energie | |
| Stromverbrauch (Standardbetrieb) | 3,6 W |
| Nennspannung | 12 V |
| Stromverbrauch Lüfter | 2,4 W |
| Ventilatoren Spannung | 12 V |
| Ventilatoren Strom | 0,2 A |
| Gewicht und Abmessungen | |
| Breite | 147 mm |
| Heizungs-Breite | 11 cm |
| Heizungs-Tiefe | 14 cm |
| Heizungs-Höhe | 16 cm |
| Tiefe | 116 mm |
| Höhe | 164 mm |
| Gewicht | 1,38 kg |
| Abmessungen Gebläse (B x T x H) | 140 x 140 x 25 mm |
| Durchmesser Wärmerohre | 6 mm |
| Lieferumfang | |
| Verpackungsart | Box |
| Montageset | Ja |
| Schrauben enthalten | Ja |
| CPU-Halterung(en) | Ja |
| Adapterrahmen enthalten | Ja |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
