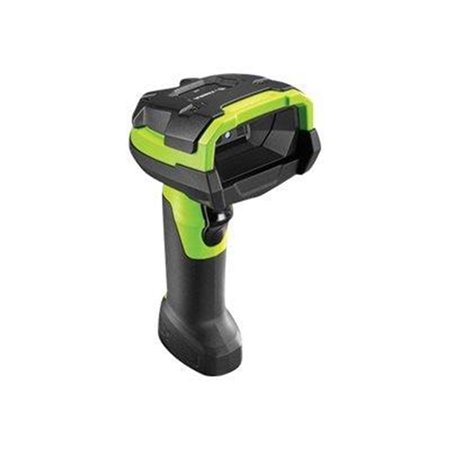

Zebra DS3678-SR - barcode scanner
Barcode-Scanner, tragbar, SR, 2D-Imager, decodiert, Bluetooth 4.0
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Der fortschrittliche Imager ermöglicht die blitzschnelle Erfassung von jedem 1D- oder 2D-Barcode auf einem Bildschirm oder Etikett in praktisch jeder Umgebung. Sein Scan-Arbeitsbereich reicht vom Nahbereich bis hin zu 1,5 m Entfernung. Die extrem robuste Konstruktion ist nahezu unzerstörbar - ideal für extrem raue Bedingungen.
| Generell | |
| Hersteller: | Zebra |
| Waren-Nr.: | 3373430 |
| Modell: | DS3678-SR3RF50BS1W |
| Zum Hersteller:: | www.zebra.com |
| Produktbeschreibung: | Zebra DS3678-SR - Barcode-Scanner |
| Typ: | Barcode-Scanner - tragbar - Bluetooth 4.0 - decodiert |
| Farbe: | Industriell grün |
| Min. Strichcodesymbolbreite: | 5 mil |
| Fokusbereich der Scan Engine: | Standard Range (SR) |
| Scan-Elementtyp: | 2D-Imager - LED |
| Sensorauflösung: | 1280 x 800 |
| Anschlusstechnik: | Kabellos |
| Wireless Connectivity: | Bluetooth 4.0 LE, Bluetooth 4.0 |
| Batterie: | 1 x Lithium-Ionen |
| Abmessungen (Breite x Tiefe x Höhe): | 7.6 cm x 14.2 cm x 18.5 cm |
| Gewicht: | 407 g |
| Allgemein | |
| Typ: | Barcode-Scanner - tragbar |
| Farbe: | Industriell grün |
| Barcode | |
| Schnittstellen Typ: | Bluetooth 4.0 |
| Min. Strichcodesymbolbreite: | 5 mil |
| Fokusbereich der Scan Engine: | Standard Range (SR) |
| Scan-Elementtyp: | 2D-Imager - LED |
| Sensorauflösung: | 1280 x 800 |
| Wellenlänge der Lichtquelle: | 660 nm |
| Max. Gebrauchsdistanz: | 152.4 cm |
| Skew (Grad): | 60 |
| Pitch (Grad): | 60 |
| Print Contrast Signal (PCS): | 15% |
| Entschlüsselungsfunktion: | Code 39, Code 128, Code 93, Codabar, NW-7, Code 11, MSI, Plessey, UPC, EAN/JAN, Koreaner 3 von 5, GS1 DataBar, Base 32, italienischer Pharmacode, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR-Code, Micro QR-Code, Chinese Sensible Code, China Han Xin Code, Postal Code |
| TTL Decoding: | Decodiert |
| Anschlusstechnik: | Kabellos |
| Benachrichtigung bei Erfolg: | Signalton, LED-Anzeige, Vibration |
| Funktionen: | Robust, Digimarc Barcode Technology, 25 kV ESD-Schutz (Luftentladung), 10 kV ESD-Schutz (direkte Entladung), 10 kV ESD-Schutz (indirekte Entladung), Human Interface Device Profile (HID), Serial Port Profile (SPP) |
| Netzwerk | |
| Wireless Connectivity: | Bluetooth 4.0 LE, Bluetooth 4.0 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Cradle |
| Kennzeichnung: | IP65, IP68, EN 61000-4-2, Bluetooth Class 1, RoHS, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, IEC 60950-1:2005 + A1:2009 + A2:2013, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, IEC 62471:2006, EN 62471:2008, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-6-2:2005+AC:2005, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2013, EN 60601-1-2:2007/AC: 2010, IEC 60601-1-2:2007, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, FIPS |
| Stromversorgung | |
| Batterie: | 1 x Lithium-Ionen |
| Abmessungen und Gewicht | |
| Breite: | 7.6 cm |
| Tiefe: | 14.2 cm |
| Höhe: | 18.5 cm |
| Gewicht: | 407 g |
