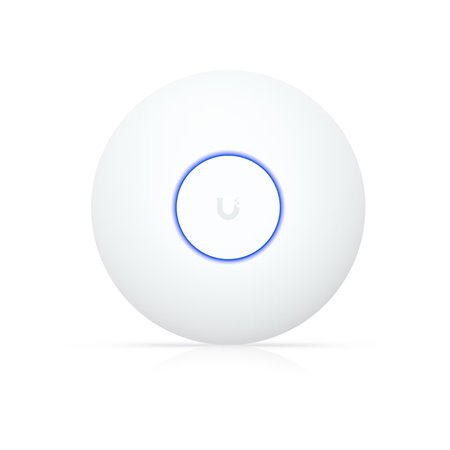

Ubiquiti U7-Lite Access-Point UniFi U7 Lite WiFi 7
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
+15 Stk.
Auf Lager - 1-3 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
| Specification | Details |
|---|---|
| Dimensions | Ø171.5 x 33 mm (Ø6.8 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Performance | |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Custom Branding Landing Page |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 9.0.114 and later |
| UniFi OS | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
| Generell | |
| Hersteller: | Ubiquiti |
| Waren-Nr.: | 3354665 |
| Modell: | U7-Lite |
| EAN: | 0810084698747 |
| Zum Hersteller:: | www.ui.com/ |
| Kontaktieren Sie den Hersteller: | www.ui.com/contact |
| Produktbeschreibung: | Ubiquiti UniFi U7 Lite - Accesspoint - Wi-Fi 7 |
| Gerätetyp: | Accesspoint |
| Formfaktor: | Wand- / Deckenmontage |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 688 Mbps Maximale Datenrate (5 GHz): 4,3 Gbit/s |
| Kapazität: | Räumliche Ströme: 4 Verbundene Geräte: 200+ |
| Zubehör im Lieferumfang: | Wand-/Deckenbefestigungs-Set |
| Erforderliches Betriebssystem: | UniFi OS, UniFi Netzwerk 9.0.114 oder neuer |
| Power Over Ethernet (PoE)-Unterstützung: | PoE |
| Stromversorgung: | DC 42.5 - 57 V |
| Abmessungen (Breite x Tiefe x Höhe): | 17.15 cm x 3.3 cm x 17.15 cm |
| Gewicht: | 313 g |
| Allgemein | |
| Gerätetyp: | Accesspoint |
| Breite: | 17.15 cm |
| Tiefe: | 3.3 cm |
| Höhe: | 17.15 cm |
| Gewicht: | 313 g |
| Netzwerk | |
| Formfaktor: | Wand- / Deckenmontage |
| Anschlusstechnik: | Kabellos |
| Datenübertragungsrate: | 4.3 Gbps |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Max. Abdeckungsbereich: | Bis zu 115 qm |
| Leistung: | Maximale Datenrate (2,4 GHz): 688 Mbps Maximale Datenrate (5 GHz): 4,3 Gbit/s |
| Kapazität: | Räumliche Ströme: 4 Verbundene Geräte: 200+ |
| Leistungsmerkmale: | 2x2 Mu-Mimo-Technologie, Wireless Mesh-Support, Bandsteuerung, schnelles Roaming, BSS-Transitionsmanagement, Radio Resource Management (RRM), fortgeschrittenes Funkmanagement, Passpoint Release 2, Captive Portal, Unterstützung für benutzerdefinierte Branding-Startseiten, Gutschein-Authentifizierung, zahlungsbasierte Authentifizierung, Unterstützung für externe Portalsysteme, Passwortauthentifizierung, Guest Isolation, Private Pre-Shared Key (PPSK), Client-Isolierung, Frequenzgrenze, WiFi-Zeitpläne, Gehäuse aus UV-stabilisiertem Polycarbonat, LED-Statusanzeige, Sperrnocke, Reset-Taste |
| Verschlüsselungsalgorithmus: | TLS |
| Authentifizierungsmethode: | RADSEC, RADIUS |
| Produktzertifizierungen: | IEEE 802.11v, IEEE 802.11r, IEEE 802.11k |
| Antenne | |
| Antenne: | Intern |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x 2.5GBase-T (PoE) - RJ-45 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Wand-/Deckenbefestigungs-Set |
| Kennzeichnung: | UKCA, WEEE, EAC, FCC, IC |
| Stromversorgung | |
| Power Over Ethernet (PoE)-Unterstützung: | PoE |
| Stromversorgungsgerät: | Externer Netzadapter |
| Erforderliche Netzspannung: | DC 42.5 - 57 V |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | UniFi OS, UniFi Netzwerk 9.0.114 oder neuer |
