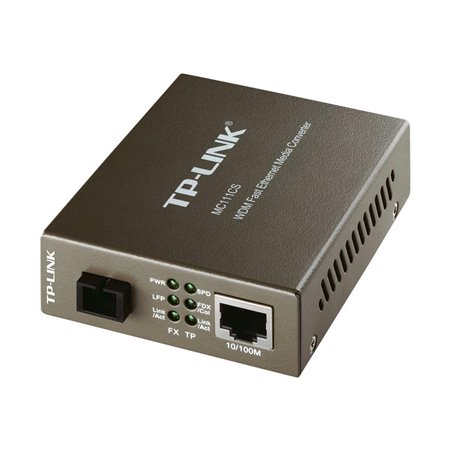

TP-Link MC111CS 10/100Mbps WDM Media Converter
Medienkonverter, 100Mb LAN, 10Base-T, 100Base-FX, 100Base-TX, RJ-45 / SC Single-Modus, bis zu 20 km, 1550 (TX) / 1310 (RX) nm
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 2,99 €
Verfügbar - 5-7 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
| Generell | |
| Hersteller: | TP-Link |
| Waren-Nr.: | 2225383 |
| Modell: | MC111CS |
| EAN: | 6935364030414 |
| Kontaktieren Sie den Hersteller: | www.tp-link.com/en/support/ce |
| Produktbeschreibung: | TP-Link MC111CS - Medienkonverter - 10Mb LAN, 100Mb LAN |
| Gerätetyp: | Medienkonverter - RJ-45 / SC Single-Modus |
| Formfaktor: | Extern |
| Verdrahtungstyp: | 10Base-T, 100Base-FX, 100Base-TX |
| Datenübertragungsrate: | 100 Mbps |
| Optische Wellenlänge: | 1550 (TX) / 1310 (RX) nm |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN |
| Maximaler Übertragungsbereich: | 20 km |
| Abmessungen (Breite x Tiefe x Höhe): | 9.5 cm x 7.3 cm x 2.7 cm |
| Allgemein | |
| Gerätetyp: | Medienkonverter |
| Formfaktor: | Extern |
| Netzwerk | |
| Anschlusstechnik: | Kabelgebunden |
| Verdrahtungstyp: | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN |
| Datenübertragungsrate: | 100 Mbps |
| Optische Wellenlänge: | 1550 (TX) / 1310 (RX) nm |
| Maximaler Übertragungsbereich: | 20 km |
| Statusanzeiger: | Collision Status, Anschluß-Duplexmodus, Stromversorgung, Link/Aktivität |
| Leistungsmerkmale: | Flusskontrolle, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Halbduplex-Modus, Vollduplex-Modus |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 weiblich 1 x Ethernet 100Base-FX - SC single-mode |
| Verschiedenes | |
| Kennzeichnung: | FCC |
| Stromversorgung | |
| Stromversorgungsgerät: | Externer Netzadapter |
| Abmessungen und Gewicht | |
| Breite: | 9.5 cm |
| Tiefe: | 7.3 cm |
| Höhe: | 2.7 cm |
