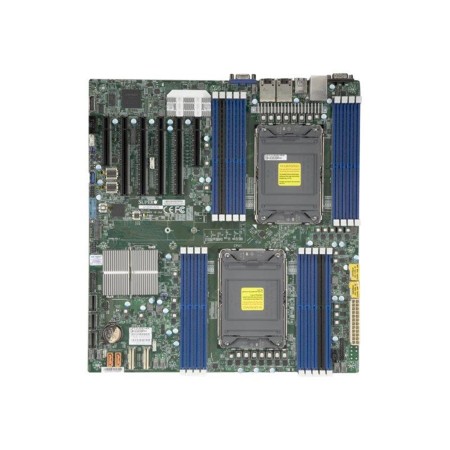

Supermicro X12DPI-N6 Mainboard - Intel C621A - Intel LGA4189 socket - DDR4 RAM - Extended ATX
Motherboard, E-ATX, LGA4189-Sockel, 2 Unterstützte CPUs, C621A Chipsatz, USB 3.2 Gen 1, 2 x Gigabit LAN, Onboard-Grafik, für SC745 BAC-R1K23B; SC825 BTQC-R1K23LPB
Die Ware ist leider nicht mehr verfügbar.
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
| Generell | |
| Hersteller: | Supermicro |
| Waren-Nr.: | 3189286 |
| Modell: | MBD-X12DPI-N6-O |
| EAN: | 0672042451463 |
| Zum Hersteller:: | www.supermicro.com |
| Produktbeschreibung: | SUPERMICRO X12DPI-N6 - Motherboard - E-ATX - LGA4189-Sockel - C621A |
| Produkttyp: | Motherboard - E-ATX |
| Chipsatz: | Intel C621A |
| Prozessorsockel: | 2 x LGA4189-Sockel |
| Kompatible Prozessoren: | Xeon (unterstützt CPUs mit bis zu 40 Kernen, TDP max. 270 Watt) |
| Max. RAM-Größe: | 4 TB |
| Unterstütztes RAM: | 18 DIMM-Steckplätze - DDR4, ECC, registriert, 3DS Load-Reduced, Optane DC Persistent, Load-Reduced |
| Massenspeicher-Schnittstellen: | 14 x SATA-600 (RAID), 1 x M.2 |
| USB-/FireWire-Anschlüsse: | 5 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 über eine interne Stiftleiste) |
| Grafik: | ASPEED AST2600 |
| LAN: | 2 x Gigabit Ethernet |
| Entwickelt für: | SC745 BAC-R1K23B; SC825 BTQC-R1K23LPB |
| Allgemein | |
| Produkttyp: | Motherboard - E-ATX |
| Chipsatz: | Intel C621A |
| Prozessorsockel: | LGA4189-Sockel |
| Max. Anz. Prozessoren: | 2 |
| Kompatible Prozessoren: | Xeon (unterstützt CPUs mit bis zu 40 Kernen, TDP max. 270 Watt) |
| Unterstützter RAM | |
| Max. Größe: | 4 TB |
| Technologie: | DDR4 |
| Bustakt: | 2666 MHz, 2933 MHz, 3200 MHz |
| Unterstützte RAM-Integritätsprüfung: | ECC |
| Registriert oder gepuffert: | Registriert, 3DS Load-Reduced, Optane DC Persistent, Load-Reduced |
| Besonderheiten: | Single Device Data Correction (SDDC) |
| Grafik | |
| Grafik-Controller: | ASPEED AST2600 |
| LAN | |
| Netzwerkcontroller: | Intel I350 |
| Netzwerkschnittstellen: | 2 x Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 2 x CPU 18 x DIMM 288-polig (1.2 V) 4 x PCIe 4.0 x16 2 x PCIe 4.0 x8 |
| Speicherschnittstellen: | SATA-600 - 14 Geräte - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 1 x M.2 |
| Schnittstellen: | 2 x LAN (Gigabit Ethernet) 1 x VGA 4 x USB 3.2 Gen 1 1 x Seriell |
| Interne Schnittstellen: | 1 x USB 3.2 Gen 1 - Type A 1 x Seriell - Stiftleiste 2 x USB 2.0 - Stiftleiste 1 x VGA - Stiftleiste |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | UEFI BIOS, Wiederherstellung nach Stromausfall (Wiederaufnahme bei Verlust der Wechselspannung), IPMI 2.0-Unterstützung |
| Hardwareüberwachung: | Systemspannung, CPU-Core-Spannung |
| Sleep / Wake up: | Wake-On-LAN (WOL) |
| Hardwarefeatures: | Chassis Intrusion Detection |
| Verschiedenes | |
| Zubehör im Lieferumfang: | I/O-Rückwand |
| Enthaltene Kabel: | 3 x Serial ATA-Kabel |
| Kennzeichnung: | RoHS |
| Breite: | 30.48 cm |
| Tiefe: | 33.02 cm |
| Verpackung: | Retail |
