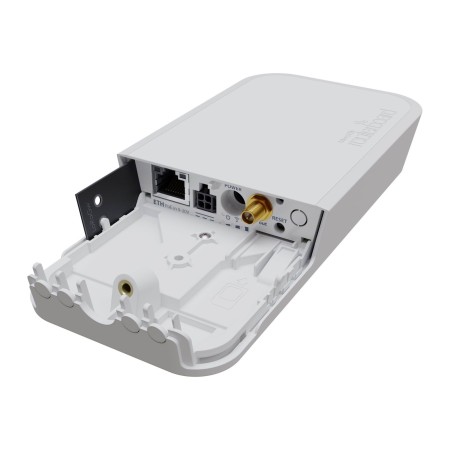

MikroTik RBwAPR-2nD&R11e-LR2 wAP LR2 kit
Gateway, 100Mb LAN, Wi-Fi, LoRaWAN, 2.4 GHz
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 9-11 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.
Here's the difference: this device works with the 2.4 GHz frequency for LoRa as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn't interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.
There is a built-in 2 dBi WLAN / 4.7 dBi LoRa antenna, but you can add an external antenna for extra coverage. The whole IoT community is exploring the 2.4 GHz LoRa possibilities - join them and be among the first ones to benefit from the increased data rates.
Here's the difference: this device works with the 2.4 GHz frequency for LoRa as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn't interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.
There is a built-in 2 dBi WLAN / 4.7 dBi LoRa antenna, but you can add an external antenna for extra coverage. The whole IoT community is exploring the 2.4 GHz LoRa possibilities - join them and be among the first ones to benefit from the increased data rates.
| Generell | |
| Hersteller: | MikroTik |
| Waren-Nr.: | 3183432 |
| Modell: | RBwAPR-2nD&R11e-LR2 |
| EAN: | 4752224007421 |
| Zum Hersteller:: | www.mikrotik.com/ |
| Produktbeschreibung: | MikroTik wAP LR2 kit - Gateway - Wi-Fi, LoRaWAN |
| Gerätetyp: | Gateway |
| Formfaktor: | Extern - außen |
| Lokalisierung: | Europa, Vereinigte Staaten |
| Prozessor: | 1 x Qualcomm QCA9531 |
| RAM: | 64 MB |
| Flash-Speicher: | 16 MB |
| Data Link Protocol: | LoRaWAN, Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequenzband: | 2.4 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 300 Mbps |
| Zubehör im Lieferumfang: | Montagehalterungen, Schlauchklemme, K-52 Befestigungsset, Bohrschablone |
| Power Over Ethernet (PoE)-Unterstützung: | Passives PoE |
| Allgemein | |
| Gerätetyp: | Gateway |
| Robustes Design: | Außen |
| Integrierte Peripheriegeräte: | Drahtlose Basisstation |
| Lokalisierung: | Europa, Vereinigte Staaten |
| Prozessor / Arbeitsspeicher / Speicherkapazität | |
| Installierte Prozessoren: | 1 x Qualcomm QCA9531 |
| RAM: | 64 MB |
| Flash-Speicher: | 16 MB |
| Netzwerk | |
| Formfaktor: | Extern |
| Anschlusstechnik: | Kabellos, kabelgebunden |
| Data Link Protocol: | LoRaWAN, Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Netzwerk/Transportprotokoll: | UDP/IP |
| Frequenzband: | 2.4 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 300 Mbps |
| Statusanzeiger: | Stromversorgung, Wireless |
| Leistungsmerkmale: | Wetterfest, Betriebsmodus „Access-Point“, geeignet für Wandmontage, an Stange montierbar, Deckenmontage möglich, Auto-Uplink (Auto MDI/MDI-X), Reset-Taste |
| Produktzertifizierungen: | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenne | |
| Antenne: | Intern |
| Internet der Dinge (IoT) | |
| Internet der Dinge (IoT) kompatibel: | Ja |
| Kommunikationstechnologie: | LoRaWAN |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 (gesamt)/ 1 (frei) x SIM-Karte 1 (gesamt)/ 0 (frei) x Mini PCIe |
| Schnittstellen: | 1 x 100Base-TX (PoE) - RJ-45 1 x Antenne - SMA |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Montagehalterungen, Schlauchklemme, K-52 Befestigungsset, Bohrschablone |
| Enthaltene Kabel: | 1 x Strominjektorkabel |
| Kennzeichnung: | RoHS, EAC, Directive 2014/53/EU, IP54 |
| Stromversorgung | |
| Power Over Ethernet (PoE)-Unterstützung: | Passives PoE |
| Stromversorgungsgerät: | Externer Netzadapter |
| Leistungsaufnahme im Betrieb: | 8 Watt |
| Gestellte Leistung: | 19.2 Watt |
| Software / Systemanforderungen | |
| Bereitgestelltes Betriebssystem: | MikroTik RouterOS (licence level 4) |
