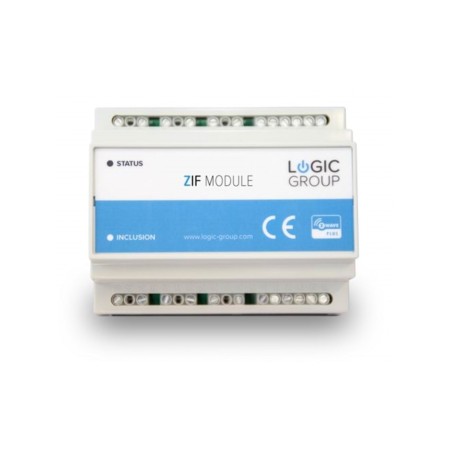

Logic Group ZIF5020 Z-Wave DIN-Rail Smart Module for Automation Systems
ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 – 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 â?? 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.
| Generell | |
| Hersteller: | Logic Group |
| Waren-Nr.: | 2835650 |
| Modell: | ZIF5020 |
| EAN: | 5714090000080 |
| Zum Hersteller:: | logic-group.com/produkt/zif5020/ |
