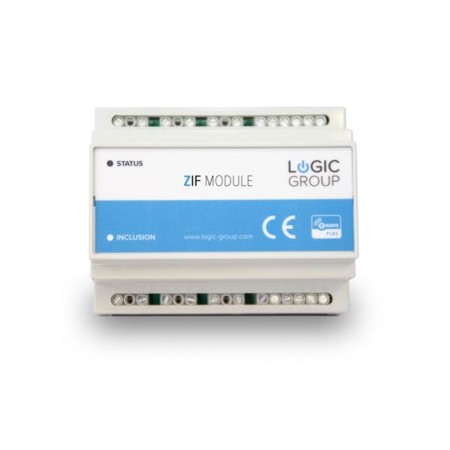

Logic Group ZIF5029 Z-Wave DIN-Rail Smart Module for Utility Meters
ZIF5029 is a Z-Wave based device with 6 relay outputs and 6 pulse inputs designed for mounting on a standard M36 DIN rail (EN50022). The 6 relay outputs can be freely controlled over the Z-Wave network and used for various purposes. The 6 pulse inputs can be used to count pulses from different types of consumption meters, such as water, electricity, and gas meters, which have an output that emits pulses when a specific consumption level is reached. You can also connect dual meters, such as an electric vehicle charger, solar panels, or a swimming pool. The 6 relay outputs can be used to control the house's lighting, socket groups, and motors, such as a garage door. ZIF5029 can be used to switch 6 pieces of 230V AC loads that can be freely controlled from the Z-Wave network. All 6 relay outputs are galvanically isolated from each other. ZIF5029 can be powered with 10-24V DC or 8-24V AC. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5029 has a LED indicator on the front for status indication.
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 2-4 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
ZIF5029 is a Z-Wave based device with 6 relay outputs and 6 pulse inputs designed for mounting on a standard M36 DIN rail (EN50022). The 6 relay outputs can be freely controlled over the Z-Wave network and used for various purposes. The 6 pulse inputs can be used to count pulses from different types of consumption meters, such as water, electricity, and gas meters, which have an output that emits pulses when a specific consumption level is reached. You can also connect dual meters, such as an electric vehicle charger, solar panels, or a swimming pool. The 6 relay outputs can be used to control the house's lighting, socket groups, and motors, such as a garage door. ZIF5029 can be used to switch 6 pieces of 230V AC loads that can be freely controlled from the Z-Wave network. All 6 relay outputs are galvanically isolated from each other. ZIF5029 can be powered with 10-24V DC or 8-24V AC. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5029 has a LED indicator on the front for status indication.
| Generell | |
| Hersteller: | Logic Group |
| Waren-Nr.: | 3258987 |
| Modell: | ZIF5029 |
| EAN: | 5714090000110 |
| Zum Hersteller:: | logic-group.com/ |
