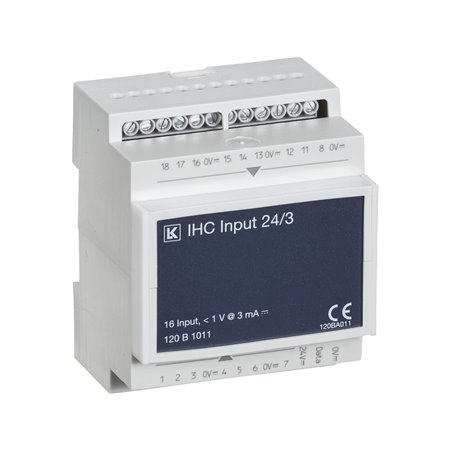

LK Ihc control input 24v d.c./3 ma 16 inputs
IHC Control input 24 V DC 3mA with 16 inputs. Used to collect the signals from the low-current contacts with low contact resistance, for example. alarm PIR, thermostats, magnetic switches and other signal generators with long lasting finish functions. Note! OPUS / FUGA PIR can not be used for this input module. To IHC system can be considered a low voltage system, it is a requirement that the used switches are insulated to double insulation (8 mm creepage distance) relative to the 230 / 400V network. It is possible to place the input module 24/3 both central controller and by a decentralized, distributed in the installation.
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 2-4 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
IHC Input 24-3 LK Product Description: IHC Control Input 24 V DC 3mA with 16 inputs. Used for collecting signals from low-voltage switches with low resistance, such as alarm PIRs, thermostats, magnetic contacts and other signal transmitters with long-lasting closing functions. Note! OPUS/FUGA PIR cannot be used for this input module. In order for the IHC system to be considered a low-voltage system, it is a requirement that the contacts used are isolated corresponding to double insulation (8 mm creepage distance) in relation to the 230/400V network. It is possible to place the Input 24/3 module both centrally at the controller and decentrally distributed in the installation.
| Generell | |
| Hersteller: | LK |
| Waren-Nr.: | 2765328 |
| Modell: | 120B1011 |
| EAN: | 5703302111423 |
| Zum Hersteller:: | www.lk.dk |
