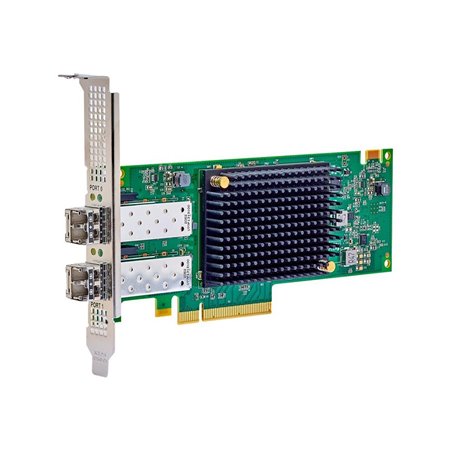

Lenovo ThinkSystem Emulex LPe36002
Hostbus-Adapter, PCIe 4.0 x8 Low-Profile, 64Gb Fibre Channel Gen 7 (Short Wave) x 2, für ThinkStation P920 Rack; ThinkSystem SR650; SR650 V2; SR665; SR850 V2; SR850P; SR860 V2
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 10-12 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
A combination of next-generation 64G Fibre Channel and PCIe 4.0 technology can provide dramatic improvements in application data throughput. Broadcom commissioned Tolly to benchmark the performance of the new Lenovo ThinkSystem Emulex LPe36002 Gen 7 FC HBA in terms of raw performance and compare to existing 32G FC HBAs. The adapter demonstrated dual-port performance in excess of 11 million IOPS. Running relational database transaction benchmarks, the adapter effectively doubled the performance by dramatically cutting run times. Similarly, the adapter leveraged PCIe 4.0 technology to increase application throughput by 67% compared to PCIe 3.0 servers.
| Generell | |
| Hersteller: | Lenovo |
| Waren-Nr.: | 3014945 |
| Modell: | 4XC7A77485 |
| Zum Hersteller:: | lenovo.com |
| Kontaktieren Sie den Hersteller: | www.lenovo.com/dk/da/contact/?orgRef=htt... |
| Produktbeschreibung: | Lenovo ThinkSystem Emulex LPe36002 - Hostbus-Adapter - PCIe 4.0 x8 - 64Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Gerätetyp: | Hostbus-Adapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 4.0 x8 |
| PCI-Spezifikationsrevision: | PCIe 4.0 |
| Ports: | 64Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Abmessungen (Breite x Tiefe x Höhe): | 16.8 cm x 6.9 cm |
| Verdrahtungstyp: | Fibre Channel |
| Data Link Protocol: | 64Gb Fibre Channel Gen 7 (Short Wave) |
| Datenübertragungsrate: | 57.8 Gbps |
| Leistung: | Maximaler IOPS: 10000000 |
| Prozessor: | 1 x Emulex XE601 |
| Systemanforderungen: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 2, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi) Update 1, VMware vSphere Hypervisor 6.7 (ESXi) Update 2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Entwickelt für: | ThinkStation P920 Rack 7X06; ThinkSystem SR650 7X05, 7X06; SR650 V2 7D15; SR665 7D2V, 7D2W; SR850 V2 7D31, 7D32; SR850P 7D2F; SR860 V2 7Z59, 7Z60 |
| Allgemein | |
| Gerätetyp: | Hostbus-Adapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 4.0 x8 |
| PCI-Spezifikationsrevision: | PCIe 4.0 |
| Netzwerk | |
| Ports: | 64Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Anschlusstechnik: | Kabelgebunden |
| Verdrahtungstyp: | Fibre Channel |
| Data Link Protocol: | 64Gb Fibre Channel Gen 7 (Short Wave) |
| Fibre Channel: | FC-PI-7, FC-FS-5, FC-LS-5, FC-LS-4, FC-GS-8, FCP-4, FC-SP-2, SPC-4, SBC-3, SSC-4, FC-NVMe-2, FC-PI-1, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-FS-1, FC-FS-2, FC-FS-3, FC-FS-4, FC-LS-1, FC-LS-2, FC-LS-3, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-GS-1, FC-PH-1, FC-PH-2, FC-PH-3, FC-DA-1, FC-DA-2, FCP-2, FCP-3, FC-HBA, FC-Tape, FC-MI, SPC-3, SBC-2, SSC-2, SSC-3, FC-NVMe with AM1 |
| Datenübertragungsrate: | 57.8 Gbps |
| Leistung: | Maximaler IOPS: 10000000 |
| Leistungsmerkmale: | Vollduplex-fähig, Transparente NPIV-Modusunterstützung (N_Port ID Virtualization), SR-IOV |
| Prozessor / Arbeitsspeicher | |
| Prozessor: | 1 x Emulex XE601 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x 64Gb Fibre Channel Gen 7 (Short Wave) - SFP+ |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech, Halterung, volle Höhe |
| Kennzeichnung: | AS/NZS CISPR22:2009+A1 Class A, RoHS, CSA 60950-1-07, EN 55022:2010 Class A, EN 55024:2010, EN 55032:2012, EU Low Voltage Directive, UKCA, FCC Part 15 A, ICES-003 Klasse A, VCCI Class A, KCC Class A, Directive 2011/65/EU, EN60950-1+A11+A1+A12+A2, BSMI Class A, BSMI, TUV, CSA 22.2, China RoHS, RCM, UL 60950-1 Second Edition |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 2, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi) Update 1, VMware vSphere Hypervisor 6.7 (ESXi) Update 2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Maße und Gewicht | |
| Tiefe: | 16.8 cm |
| Höhe: | 6.9 cm |
| Umgebungsbedingungen | |
| Min Betriebstemperatur: | 0 °C |
| Max. Betriebstemperatur: | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb: | 5 - 95 % (nicht kondensierend) |
