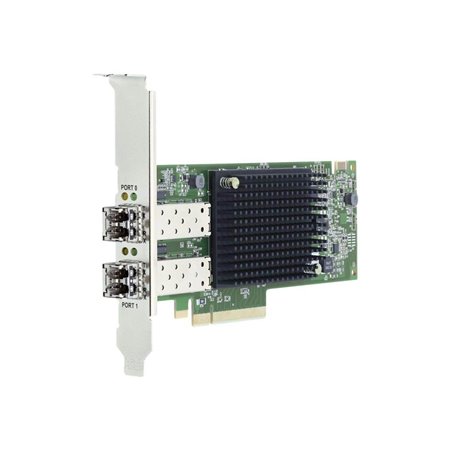

Lenovo ThinkSystem Emulex LPe32002 V2
Hostbus-Adapter, PCIe 4.0 x8 Low-Profile, 32Gb Fibre Channel Gen 7 (Short Wave) x 2, für ThinkSystem SR630 V2; SR635; SR645; SR650 V2; SR655; SR665; ST650 V2
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 12-14 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Lenovo's Emulex LPe35000 Gen 7 Fiber Channel (FC) Host Bus Adapters (HBAs) by Broadcom are designed for demanding mission-critical workloads and emerging applications. Applications continue to grow and, to support them, enterprises are turning to new server technologies that contain hundreds of processor cores as well as high-performance storage solutions including low-latency NVMe, all-flash arrays (AFAs).NVMe can significantly increase the performance of storage area networks (SANs), making the selection of high-speed networking technology the critical element for achieving maximum system-wide performance. Fiber Channel is purpose-built for storage networks, meeting the requirements for high availability, scalability, predictable performance and low latency.Compared to the previous generation, Emulex Gen 7 FC HBAs offer up to 2x higher bandwidth, 3x better latency, enhanced security, and operational efficiency for 32GFC SANs.
| Generell | |
| Hersteller: | Lenovo |
| Waren-Nr.: | 3014925 |
| Modell: | 4XC7A76525 |
| EAN: | 5715063013854 |
| Zum Hersteller:: | lenovo.com |
| Kontaktieren Sie den Hersteller: | www.lenovo.com/dk/da/contact/?orgRef=htt... |
| Produktbeschreibung: | Lenovo ThinkSystem Emulex LPe32002 V2 - Hostbus-Adapter - PCIe 4.0 x8 - 32Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Gerätetyp: | Hostbus-Adapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 4.0 x8 |
| PCI-Spezifikationsrevision: | PCIe 4.0 |
| Ports: | 32Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Abmessungen (Breite x Tiefe x Höhe): | 16.8 cm x 6.9 cm |
| Verdrahtungstyp: | Fibre Channel |
| Data Link Protocol: | 32Gb Fibre Channel Gen 7 (SW) |
| Datenübertragungsrate: | 28.05 Gbps |
| Systemanforderungen: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Entwickelt für: | ThinkSystem SR630 V2 7Z70, 7Z71; SR635 7Y98, 7Y99; SR645 7D2X, 7D2Y; SR650 V2 7D15, 7Z72, 7Z73; SR655 7Y00, 7Z01; SR665 7D2V, 7D2W; ST650 V2 7Z74, 7Z75 |
| Allgemein | |
| Gerätetyp: | Hostbus-Adapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 4.0 x8 |
| PCI-Spezifikationsrevision: | PCIe 4.0 |
| Netzwerk | |
| Ports: | 32Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Anschlusstechnik: | Kabelgebunden |
| Verdrahtungstyp: | Fibre Channel |
| Data Link Protocol: | 32Gb Fibre Channel Gen 7 (Short Wave) |
| Fibre Channel: | FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-4, FCP-3, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4 |
| Datenübertragungsrate: | 28.05 Gbps |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x 32Gb Fibre Channel Gen 7 (Short Wave) - SFP+ |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech, Halterung, volle Höhe |
| Kennzeichnung: | AS/NZS CISPR22:2009+A1 Class A, RCM, China RoHS, CSA 22.2, CSA 60950-1-07, cURus, EN 55022:2010 Class A, EN 55024:2010, EN 55032:2012, FCC Part 15 A, VCCI Class A, ICES-003 Klasse A, MSIP Class A, Directive 2011/65/EU, RoHS, EN60950-1+A11+A1+A12+A2, TUV, BSMI Class A, UL 60950-1 Second Edition |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Maße und Gewicht | |
| Tiefe: | 16.8 cm |
| Höhe: | 6.9 cm |
| Umgebungsbedingungen | |
| Min Betriebstemperatur: | 0 °C |
| Max. Betriebstemperatur: | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb: | 5 - 95 % (nicht kondensierend) |
