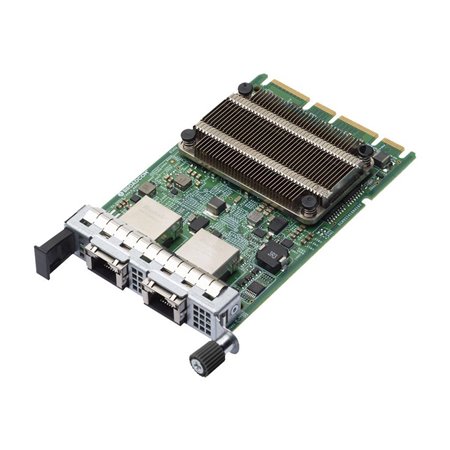

Lenovo ThinkSystem Broadcom 57416
Netzwerkadapter, OCP 3.0, Gigabit Ethernet / 10Gb Ethernet x 2, für ThinkAgile VX3330 Appliance; VX3530-G Appliance; VX7330-N Appliance; VX75XX Certified Node
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 9-11 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling.
The OCP adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables the sharing the network interface with the service processor and the operating system, thereby eliminating the need for a separate management network.
The OCP adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables the sharing the network interface with the service processor and the operating system, thereby eliminating the need for a separate management network.
| Generell | |
| Hersteller: | Lenovo |
| Waren-Nr.: | 3014907 |
| Modell: | 4XC7A08236 |
| EAN: | 0889488497294 |
| Zum Hersteller:: | lenovo.com |
| Kontaktieren Sie den Hersteller: | www.lenovo.com/dk/da/contact/?orgRef=htt... |
| Produktbeschreibung: | Lenovo ThinkSystem Broadcom 57416 - Netzwerkadapter - OCP 3.0 - Gigabit Ethernet / 10Gb Ethernet x 2 |
| Gerätetyp: | Netzwerkadapter |
| Formfaktor: | Plug-in-Karte |
| Schnittstellentyp (Bustyp): | Open Compute Project mezzanine (OCP) 3.0 |
| Ports: | Gigabit Ethernet / 10Gb Ethernet x 2 |
| Abmessungen (Breite x Tiefe x Höhe): | 7.6 cm x 11.5 cm |
| Verdrahtungstyp: | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol: | 1GbE, 10GbE |
| Datenübertragungsrate: | 10 Gbps |
| Kapazität: | Jumbo-Frame-Größe: 9000 |
| Prozessor: | 1 x Broadcom BCM57416 |
| Produktzertifizierungen: | IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Entwickelt für: | ThinkAgile VX2330 Appliance; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5530 Appliance; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX7575 Integrated System; VX75XX Certified Node; ThinkSystem SR630 V2; SR645; SR650 V2; SR655; SR665; SR850 V2 |
| Allgemein | |
| Gerätetyp: | Netzwerkadapter |
| Formfaktor: | Plug-in-Karte |
| Schnittstellentyp (Bustyp): | Open Compute Project mezzanine (OCP) 3.0 |
| Netzwerk | |
| Ports: | Gigabit Ethernet / 10Gb Ethernet x 2 |
| Anschlusstechnik: | Kabelgebunden |
| Verdrahtungstyp: | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Datenübertragungsrate: | 10 Gbps |
| Kapazität: | Jumbo-Frame-Größe: 9000 |
| Leistungsmerkmale: | IPv6-Unterstützung, DCBX-Unterstützung, IPv4-Unterstützung, LSO, LRO, RSS, SR-IOV, TSO, Unterstützung von Prüfsummen-Offload, MSI-X, GRE, TSS, iSCSI-Boot, RoCE, NC-SI, VXLAN, NVGRE, Mware NetQueue and Microsoft VMQ, DPDK, TruFlow, Interrupt Coalescing, vSwitch Acceleration, Tunnel-Wware Stateless Offloads |
| Produktzertifizierungen: | IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Prozessor / Arbeitsspeicher | |
| Prozessor: | 1 x Broadcom BCM57416 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x Netzwerk - RJ-45 |
| Verschiedenes | |
| Kennzeichnung: | UL, BSMI CNS 13438 Class A, RRL, CSA 22.2 No. 950, MIC, ICES-003 Klasse A, UL 60950-1, EN 60950-1, cTUVus, VCCI V-3, KN24, KN22 Class A, CNS 14336, EN 55024:2010, EN 55022:2010, EN 55024 Class A, FCC CFR47 Part 15 A |
| Maße und Gewicht | |
| Breite: | 7.6 cm |
| Tiefe: | 11.5 cm |
