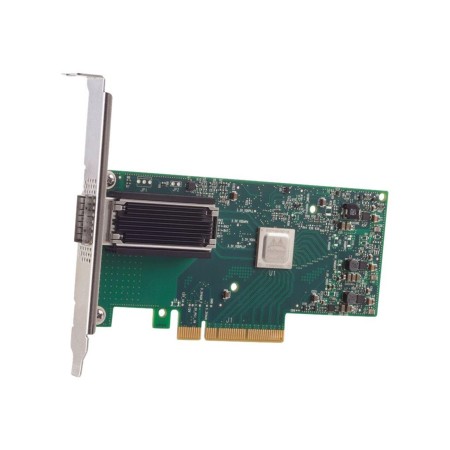

Lenovo Mellanox ConnectX-4 Lx
Netzwerkadapter, PCIe 3.0 x8 Low-Profile, 40Gb Ethernet x 1, für ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX7820 Appliance; ThinkSystem SD530
Die Ware ist leider nicht mehr verfügbar.
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
With the exponential growth of data being shared and stored by applications and social networks, the need for high-speed and high performance compute and storage data centers is skyrocketing. ConnectX -4 provides exceptional high performance for the most demanding data centers, public and private clouds, Web2.0 and Big Data applications, as well as High-Performance Computing (HPC) and Storage systems, enabling today's corporations to meet the demands of the data explosion. ConnectX -4 provides an unmatched combination of 100Gb/s bandwidth in a single port, the lowest available latency, and specific hardware offloads, addressing both today's and the next generation's compute and storage data center demands.
| Generell | |
| Hersteller: | Lenovo |
| Waren-Nr.: | 2984570 |
| Modell: | 00MM950 |
| EAN: | 0889488417285 |
| Zum Hersteller:: | lenovo.com |
| Kontaktieren Sie den Hersteller: | www.lenovo.com/dk/da/contact/?orgRef=htt... |
| Produktbeschreibung: | Mellanox ConnectX-4 Lx - Netzwerkadapter - PCIe 3.0 x8 - 40Gb Ethernet x 1 |
| Gerätetyp: | Netzwerkadapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 3.0 x8 |
| Ports: | 40Gb Ethernet x 1 |
| Verdrahtungstyp: | Ethernet 40GBase-R2, Ethernet 20GBase-R2 |
| Data Link Protocol: | 40GbE |
| Datenübertragungsrate: | 40 Gbps |
| Kapazität: | Anzahl physischer Funktionen: 16 Anzahl der virtuellen Funktionen: 256 |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, uDAPL, SMB, NFS |
| Produktzertifizierungen: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by |
| Systemanforderungen: | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, Red Hat Enterprise Linux 7 Update 2, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition, VMware vSphere 5.5 (ESXi) Update 3, VMware vSphere 6.0 (ESXi) Update 2 |
| Entwickelt für: | NeXtScale nx360 M5 5465; System x3550 M5 5463, 8869; x3650 M5 5462, 8871; x3850 X6 3837, 6241; x3950 X6 3837, 6241; ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX7820 Appliance 7Z13; ThinkSystem SD530; SR630; SR650 |
| Allgemein | |
| Gerätetyp: | Netzwerkadapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 3.0 x8 |
| Netzwerk | |
| Ports: | 40Gb Ethernet x 1 |
| Anschlusstechnik: | Kabelgebunden |
| Verdrahtungstyp: | Ethernet 40GBase-R2, Ethernet 20GBase-R2 |
| Data Link Protocol: | 40 Gigabit Ethernet |
| Datenübertragungsrate: | 40 Gbps |
| Kapazität: | Anzahl physischer Funktionen: 16 Anzahl der virtuellen Funktionen: 256 |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, uDAPL, SMB, NFS |
| Leistungsmerkmale: | MPLS-Unterstützung, TCP/IP-Offloading, QoS, Jumbo-Frames-Support, RDMA-Unterstützung, PXE-Unterstützung, LSO, LRO, RSS, UEFI-Support, SR-IOV, Energy Efficient Ethernet, gekennzeichnetes VLAN, MSI-X, UDP/IP-Offload, iSCSI remote boot, Ethernet-Remote-Start, PFC, NC-SI, VXLAN, NVGRE, Link Aggregation, SDN, XRC transport, DCT, UMR, ODP, Mellanox PeerDirect |
| Produktzertifizierungen: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x 40Gb Ethernet - QSFP28 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech |
| Kennzeichnung: | VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, RCM |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, Red Hat Enterprise Linux 7 Update 2, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition, VMware vSphere 5.5 (ESXi) Update 3, VMware vSphere 6.0 (ESXi) Update 2 |
| Umgebungsbedingungen | |
| Min Betriebstemperatur: | 0 °C |
| Max. Betriebstemperatur: | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb: | 0 - 90% |
