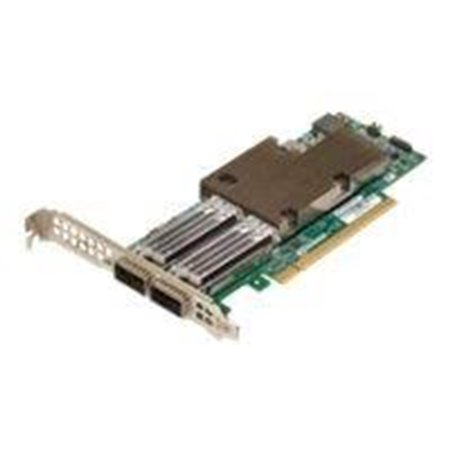

Foundry Networks Broadcom NetXtreme E-Series P2100G
Netzwerkadapter, PCIe 4.0 x16 Low-Profile, 100 Gigabit QSFP56 x 2
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Based on Broadcoms scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme-E Series P2100G 2x100G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.The P2100G 2x100G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.Driven by the growing need for higher server bandwidth and storage capacity to support emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting networking technologies, such as server virtualization and NVMe-oF. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
Generell | |
Hersteller: | Foundry Networks |
Waren-Nr.: | 3139505 |
Modell: | BCM957508-P2100G |
EAN: | 0650861000291 |
Zum Hersteller:: | www.brocade.com |
Produktbeschreibung: | Broadcom NetXtreme E-Series P2100G - Netzwerkadapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 2 |
Gerätetyp: | Netzwerkadapter |
Formfaktor: | Plug-in-Karte - Low-Profile |
Schnittstellentyp (Bustyp): | PCI Express 4.0 x16 |
PCI-Spezifikationsrevision: | PCIe 4.0 |
Ports: | 100 Gigabit QSFP56 x 2 |
Gewicht: | 167 g |
Data Link Protocol: | 100GbE |
Prozessor: | Broadcom BCM57508 |
Allgemein | |
Gerätetyp: | Netzwerkadapter |
Formfaktor: | Plug-in-Karte - Low-Profile |
Schnittstellentyp (Bustyp): | PCI Express 4.0 x16 |
PCI-Spezifikationsrevision: | PCIe 4.0 |
Netzwerk | |
Ports: | 100 Gigabit QSFP56 x 2 |
Anschlusstechnik: | Kabelgebunden |
Data Link Protocol: | 100 Gigabit Ethernet |
Statusanzeiger: | Link/Aktivität |
Leistungsmerkmale: | DCBX-Unterstützung, PXE-Unterstützung, LSO, LRO, RSS, UEFI-Support, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI-Boot, TCP-/IP-Prüfsummen-Offload, UDP-/IP-Prüfsummen-Offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frame-Unterstützung (bis zu 9000 Bytes), NPAR, Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Interrupt Coalescing, ETS, QCN, Multi-Host-Technologie, vSwitch Acceleration, Tunnel-Wware Stateless Offloads, SMBus 2.0, NetQueue |
Prozessor / Arbeitsspeicher | |
Prozessor: | Broadcom BCM57508 |
Erweiterung/Konnektivität | |
Schnittstellen: | 2 x 100Gb Ethernet - QSFP56 |
Verschiedenes | |
Zubehör im Lieferumfang: | Low profile Slotblech, Standardhalterung |
Kennzeichnung: | MSA SFF-8402 |
Stromversorgung | |
Leistungsaufnahme im Betrieb: | 19.3 Watt |
Maße und Gewicht | |
Gewicht: | 167 g |
