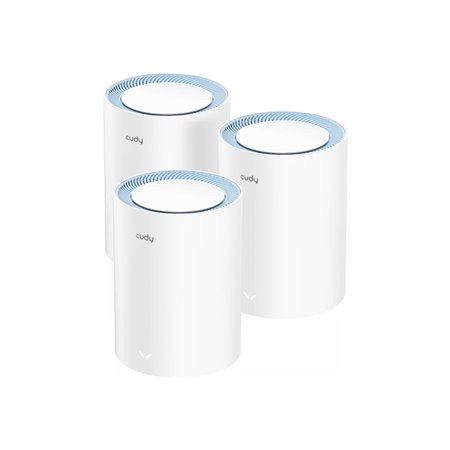

Cudy M1200 - Wi-Fi system - Wi-Fi 5 - desktop - Wi-Fi 5
WLAN-System, (3 Router), bis zu 539 m², Netz, Wi-Fi 5, Dual-Band
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 8-10 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Cudy M1200 is a Wi-Fi system that provides a seamless and reliable wireless network for homes and small offices. With coverage up to 5,800 sq. ft., its mesh network design ensures that even the most remote areas in a spacious environment receive strong connectivity. Featuring a maximum data transfer rate of 1.2 Gbps, the M1200 supports multiple connected devices with ease, making it suitable for streaming, gaming, and high-bandwidth activities. Equipped with four internal omni-directional antennas and dual-band technology, the M1200 optimizes signal strength for both 2.4 GHz and 5 GHz bands. This device supports various networking protocols, ensuring compatibility with multiple devices and enhancing network performance. With features like gateway functionality, remote management, and advanced security protocols, the Cudy M1200 meets the diverse needs of modern users while providing a robust and secure online experience.
| Generell | |
| Hersteller: | Cudy |
| Waren-Nr.: | 3355725 |
| Modell: | M1200(3-Pack) |
| EAN: | 6971690792770 |
| Zum Hersteller:: | www.cudy.com/ |
| Produktbeschreibung: | Cudy M1200 - WLAN-System - Wi-Fi 5 - Desktop |
| Gerätetyp: | WLAN-System - Netz |
| Gehäusetyp: | Desktop |
| WLAN-System Komponenten: | 3 Router |
| WLAN-System Abdeckung: | Bis zu 539 m² |
| WAN-Ports Anz.: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequenzband: | 2,4 GHZ / 5 GHz |
| Datenübertragungsrate: | 1.2 Gbps |
| Leistung: | Maximale Datenrate (2,4 GHz): 300 Mbps Maximale Datenrate (5 GHz): 867 Mbit/s Channel-Bandbreite: 80 MHz |
| Kapazität: | Streams: 4 Verbundene Geräte: 100 |
| Netzwerk/Transportprotokoll: | IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, WireGuard, IPSec, DS-Lite |
| Routing Protocol: | Statisches IP Routing, IGMP |
| Remoteverwaltungsprotokoll: | TR-069, TR-098, TR-111, TR-181 |
| Leistungsmerkmale: | ZeroTier VPN-Client-Support, Address Reservation, DHCP-Client, DHCP-Server, DMZ-Unterstützung, Dynamic DNS, dynamischer IP-Modus, Guest Network, NAT-Port-Umleitung, NAT Support, Port-Ansteuerung, statischer IP-Modus, UPnP, ACS, network access control, Fernzugriff-Management, DHCP IPv6 Relais, Erweiterungsmodus, WMM Energiesparmodus, 2T2R MIMO-Technologie, Beamforming-Technologie, Reset-Taste, WPS-Taste, Dual-Band, schnelles Roaming, MU-MIMO-Technologie, VPN-Klient, VPN-Server, Backhaul Technology, Betriebsmodus „Access-Point“, Routermodus, Wireless-Erweiterungsmodus, WISP-Modus, App-gesteuert, Backup/Wiederherstellung, Configuration Backup/Update/Restore Default via Web, Domainfilter, DoS-Schutz, Firmware aktualisierbar, H.323 Pass-Through, IGMP-Proxy, IGMP Snooping, IP-Adressenfilterung, IP-MAC-Einbindung, IPSec-Passthrough, IPTV-Support, L2TP-Durchleitung, MAC-Adressenfilter, OpenVPN Client, Override-Funktion, PPTP-Durchleitung, Remote Firmware-Upgrade, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP Support, VLAN-Unterstützung, VLAN Tagging, WOL, Wi-Fi Schedule, WireGuard, Kopplungstaste |
| Produktzertifizierungen: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP |
| Stromversorgung: | Wechselstrom 100-240 V (50/60 Hz) |
| Gewicht: | 879 g |
| Systemanforderungen: | Linux, UNIX, Novell NetWare, Apple MacOS, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
| Allgemein | |
| Gerätetyp: | WLAN-System - Netz - 2-Port-Switch (integriert) |
| WLAN-System Komponenten: | 3 Router |
| WLAN-System Abdeckung: | Bis zu 539 m² |
| Gehäusetyp: | Desktop |
| Anschlusstechnik: | Kabelgebunden, kabellos |
| Data Link Protocol: | Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequenzband: | 2,4 GHZ / 5 GHz |
| Datenübertragungsrate: | 1.2 Gbps |
| Max. Reichweite (außen): | 170 m |
| Leistung: | Maximale Datenrate (2,4 GHz): 300 Mbps Maximale Datenrate (5 GHz): 867 Mbit/s Channel-Bandbreite: 80 MHz |
| Kapazität: | Streams: 4 Verbundene Geräte: 100 |
| Netzwerk/Transportprotokoll: | IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, WireGuard, IPSec, DS-Lite |
| Routing Protocol: | Statisches IP Routing, IGMP |
| Remoteverwaltungsprotokoll: | TR-069, TR-098, TR-111, TR-181 |
| Verschlüsselungsalgorithmus: | WPA2, WPA, WPA2-PSK, WPA-PSK |
| WLAN-Rating: | AC1200 |
| Vermaschtes Netz: | Ja |
| Leistungsmerkmale: | ZeroTier VPN-Client-Support, Address Reservation, DHCP-Client, DHCP-Server, DMZ-Unterstützung, Dynamic DNS, dynamischer IP-Modus, Guest Network, NAT-Port-Umleitung, NAT Support, Port-Ansteuerung, statischer IP-Modus, UPnP, ACS, network access control, Fernzugriff-Management, DHCP IPv6 Relais, Erweiterungsmodus, WMM Energiesparmodus, 2T2R MIMO-Technologie, Beamforming-Technologie, Reset-Taste, WPS-Taste, Dual-Band, schnelles Roaming, MU-MIMO-Technologie, VPN-Klient, VPN-Server, Backhaul Technology, Betriebsmodus „Access-Point“, Routermodus, Wireless-Erweiterungsmodus, WISP-Modus, App-gesteuert, Backup/Wiederherstellung, Configuration Backup/Update/Restore Default via Web, Domainfilter, DoS-Schutz, Firmware aktualisierbar, H.323 Pass-Through, IGMP-Proxy, IGMP Snooping, IP-Adressenfilterung, IP-MAC-Einbindung, IPSec-Passthrough, IPTV-Support, L2TP-Durchleitung, MAC-Adressenfilter, OpenVPN Client, Override-Funktion, PPTP-Durchleitung, Remote Firmware-Upgrade, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP Support, VLAN-Unterstützung, VLAN Tagging, WOL, Wi-Fi Schedule, WireGuard, Kopplungstaste |
| Produktzertifizierungen: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP, FCC |
| Prozessor: | MIPS 24Kec MT7628 580 MHz |
| RAM: | 128 MB DDR3 SDRAM |
| Flash-Speicher: | 16 MB |
| Statusanzeiger: | System |
| Leitungsmerkmale | |
| Leitungskodierformat: | 256 QAM |
| Internet der Dinge (IoT) | |
| Internet der Dinge (IoT) kompatibel: | Ja |
| Kommunikationsart: | Wolke |
| Kommunikationstechnologie: | Wi-Fi |
| Erweiterung/Konnektivität | |
| Schnittstellen: | LAN: 1 x 10Base-T/100Base-TX - RJ-45 WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 |
| Antenne | |
| Antenne: | Intern |
| Antennenzahl: | 4 |
| Richtwirkung: | Ungerichtet |
| Gain Level: | 3.75 dBi |
| Stromversorgung | |
| Stromversorgungsgerät: | Externer Netzadapter |
| Erforderliche Netzspannung: | Wechselstrom 100-240 V (50/60 Hz) |
| Verschiedenes | |
| Enthaltene Kabel: | 1 x Netzwerkkabel |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | Linux, UNIX, Novell NetWare, Apple MacOS, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
| Maße und Gewicht | |
| Gewicht: | 879 g |
| Details zu Abmessungen & Gewicht: | Router - Breite 11 cm Tiefe 11 cm Höhe 15.45 cm |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 38 cm |
| Transporttiefe: | 13 cm |
| Transporthöhe: | 26.5 cm |
| Transportgewicht: | 1.658 kg |
