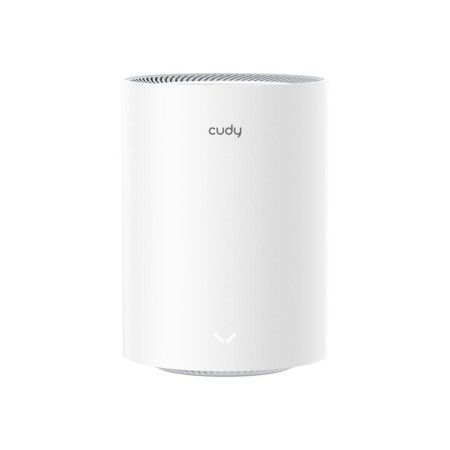

Cudy Mesh Solution M1800 1-Pack AX1800 Gigabit Wi-Fi 6 2.5G - Mesh router Wi-Fi 6
WLAN-System, (Router), bis zu ca. 185 m², Netz 1GbE, Wi-Fi 6, Dual-Band
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 8-10 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Experience seamless connectivity with the Cudy M1800, a Wi-Fi system designed to meet modern networking needs. This device supports dual-band Wi-Fi with speeds reaching up to 1.8 Gbps, ensuring smooth streaming and gaming experiences across multiple devices. With four internal omnidirectional antennas offering a gain level of 6.04 dBi, users can enjoy broad coverage, minimizing dead zones and maximizing signal strength. Equipped with features such as MU-MIMO technology, beamforming, and support for IPv6, the Cudy M1800 is suitable for households or small office setups with many connected devices. The device is IoT-compatible, making it a choice for smart home integrations, while its security options, including WPA3 encryption, protect your network from unauthorized access. With remote management capabilities and a user-friendly interface, managing your network has never been easier.
| Generell | |
| Hersteller: | Cudy |
| Waren-Nr.: | 3336547 |
| Modell: | M1800(1-Pack) |
| EAN: | 6971690792794 |
| Zum Hersteller:: | www.cudy.com/ |
| Produktbeschreibung: | Cudy M1800 - WLAN-System - Wi-Fi 6 - Desktop |
| Gerätetyp: | WLAN-System - Netz |
| Gehäusetyp: | Desktop |
| WLAN-System Komponenten: | Router |
| WLAN-System Abdeckung: | Bis zu ca. 185 m² |
| WAN-Ports Anz.: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6) |
| Frequenzband: | 2,4 GHZ / 5 GHz |
| Datenübertragungsrate: | 1.8 Gbps |
| Leistung: | Maximale Datenrate (2,4 GHz): 574 Mbit/s Maximale Datenrate (5 GHz): 1201 Mbit/s Channel-Bandbreite: 80 MHz |
| Kapazität: | Streams: 4 Verbundene Geräte: 100 |
| Netzwerk/Transportprotokoll: | IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, WireGuard, IPSec, DS-Lite |
| Routing Protocol: | Statisches IP Routing, IGMP |
| Remoteverwaltungsprotokoll: | TR-069, TR-098, TR-111, TR-181 |
| Leistungsmerkmale: | ZeroTier VPN-Client-Support, Address Reservation, DHCP-Client, DHCP-Server, DMZ-Unterstützung, Dynamic DNS, dynamischer IP-Modus, Guest Network, NAT-Port-Umleitung, NAT Support, Port-Ansteuerung, statischer IP-Modus, UPnP, ACS, network access control, Fernzugriff-Management, DHCP IPv6 Relais, Erweiterungsmodus, WMM Energiesparmodus, 2T2R MIMO-Technologie, Beamforming-Technologie, Reset-Taste, WPS-Taste, Dual-Band, schnelles Roaming, MU-MIMO-Technologie, VPN-Klient, VPN-Server, Backhaul Technology, Betriebsmodus „Access-Point“, Routermodus, Wireless-Erweiterungsmodus, WISP-Modus, App-gesteuert, Backup/Wiederherstellung, Configuration Backup/Update/Restore Default via Web, Domainfilter, DoS-Schutz, Firmware aktualisierbar, H.323 Pass-Through, IGMP-Proxy, IGMP Snooping, IP-Adressenfilterung, IP-MAC-Einbindung, IPSec-Passthrough, IPTV-Support, L2TP-Durchleitung, MAC-Adressenfilter, OpenVPN Client, Override-Funktion, PPTP-Durchleitung, Remote Firmware-Upgrade, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP Support, VLAN-Unterstützung, VLAN Tagging, WOL, Wi-Fi Schedule, WireGuard, Kopplungstaste |
| Produktzertifizierungen: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, UPnP |
| Stromversorgung: | Wechselstrom 100-240 V (50/60 Hz) |
| Systemanforderungen: | Android, Apple MacOS, Microsoft Windows |
| Allgemein | |
| Gerätetyp: | WLAN-System - Netz - 2-Port-Switch (integriert) |
| WLAN-System Komponenten: | Router |
| WLAN-System Abdeckung: | Bis zu ca. 185 m² |
| Gehäusetyp: | Desktop |
| Anschlusstechnik: | Kabelgebunden, kabellos |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6) |
| Frequenzband: | 2,4 GHZ / 5 GHz |
| Datenübertragungsrate: | 1.8 Gbps |
| Max. Reichweite (außen): | 170 m |
| Leistung: | Maximale Datenrate (2,4 GHz): 574 Mbit/s Maximale Datenrate (5 GHz): 1201 Mbit/s Channel-Bandbreite: 80 MHz |
| Kapazität: | Streams: 4 Verbundene Geräte: 100 |
| Netzwerk/Transportprotokoll: | IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, WireGuard, IPSec, DS-Lite |
| Routing Protocol: | Statisches IP Routing, IGMP |
| Remoteverwaltungsprotokoll: | TR-069, TR-098, TR-111, TR-181 |
| Verschlüsselungsalgorithmus: | WPA2, WPA, WPA3 |
| WLAN-Rating: | AX1800 |
| Vermaschtes Netz: | Ja |
| Leistungsmerkmale: | ZeroTier VPN-Client-Support, Address Reservation, DHCP-Client, DHCP-Server, DMZ-Unterstützung, Dynamic DNS, dynamischer IP-Modus, Guest Network, NAT-Port-Umleitung, NAT Support, Port-Ansteuerung, statischer IP-Modus, UPnP, ACS, network access control, Fernzugriff-Management, DHCP IPv6 Relais, Erweiterungsmodus, WMM Energiesparmodus, 2T2R MIMO-Technologie, Beamforming-Technologie, Reset-Taste, WPS-Taste, Dual-Band, schnelles Roaming, MU-MIMO-Technologie, VPN-Klient, VPN-Server, Backhaul Technology, Betriebsmodus „Access-Point“, Routermodus, Wireless-Erweiterungsmodus, WISP-Modus, App-gesteuert, Backup/Wiederherstellung, Configuration Backup/Update/Restore Default via Web, Domainfilter, DoS-Schutz, Firmware aktualisierbar, H.323 Pass-Through, IGMP-Proxy, IGMP Snooping, IP-Adressenfilterung, IP-MAC-Einbindung, IPSec-Passthrough, IPTV-Support, L2TP-Durchleitung, MAC-Adressenfilter, OpenVPN Client, Override-Funktion, PPTP-Durchleitung, Remote Firmware-Upgrade, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP Support, VLAN-Unterstützung, VLAN Tagging, WOL, Wi-Fi Schedule, WireGuard, Kopplungstaste |
| Produktzertifizierungen: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, UPnP, FCC |
| Prozessor: | MIPS 1004Kc MT7621 880 MHz |
| RAM: | 256 MB DDR3 SDRAM |
| Flash-Speicher: | 16 MB |
| Statusanzeiger: | System, Link/Aktivität/Geschwindigkeit |
| Leitungsmerkmale | |
| Leitungskodierformat: | 1024 QAM |
| Internet der Dinge (IoT) | |
| Internet der Dinge (IoT) kompatibel: | Ja |
| Kommunikationsart: | Wolke |
| Kommunikationstechnologie: | Wi-Fi |
| Erweiterung/Konnektivität | |
| Schnittstellen: | LAN: 1 x 10Base-T/100Base-TX - RJ-45 WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 |
| Antenne | |
| Antenne: | Intern |
| Antennenzahl: | 4 |
| Richtwirkung: | Ungerichtet |
| Gain Level: | 6.04 dBi |
| Stromversorgung | |
| Stromversorgungsgerät: | Externer Netzadapter |
| Erforderliche Netzspannung: | Wechselstrom 100-240 V (50/60 Hz) |
| Verschiedenes | |
| Enthaltene Kabel: | 1 x Netzwerkkabel |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | Android, Apple MacOS, Microsoft Windows |
| Maße und Gewicht | |
| Details zu Abmessungen & Gewicht: | Router - Breite 11 cm Tiefe 11 cm Höhe 15.45 cm Gewicht 358 g |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 14.5 cm |
| Transporttiefe: | 13 cm |
| Transporthöhe: | 26.5 cm |
| Transportgewicht: | 685 g |
