Broadcom P425G 4-Port 25/10GbE PCIe NIC
Netzwerkadapter, PCIe 4.0 x16 Low-Profile, 10/25 Gigabit SFP28 x 4
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7

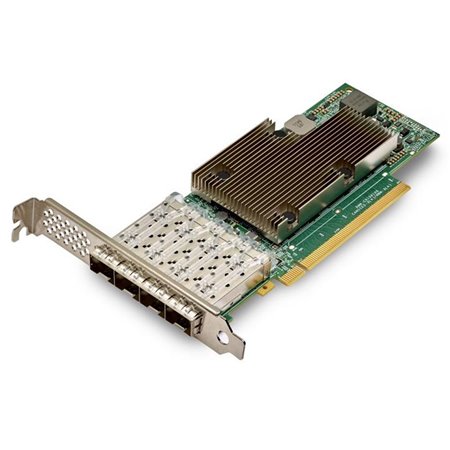

The Broadcom BCM957504-P425G is a quad-port 25 Gb/s PCI Express 4.0 x16 network interface card that supports SFP28/SFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated quad-channel 25GbE SFI transceiver.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3139504 |
| Modell: | BCM957504-P425G |
| EAN: | 0650861000635 |
| Zum Hersteller:: | www.brocade.com |
| Produktbeschreibung: | Broadcom NetXtreme E-Series P425G - Netzwerkadapter - PCIe 4.0 x16 - 10/25 Gigabit SFP28 x 4 |
| Gerätetyp: | Netzwerkadapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 4.0 x16 |
| PCI-Spezifikationsrevision: | PCIe 4.0 |
| Ports: | 10/25 Gigabit SFP28 x 4 |
| Gewicht: | 160 g |
| Data Link Protocol: | 10GbE, 25GbE |
| Prozessor: | Broadcom BCM57504 |
| Allgemein | |
| Gerätetyp: | Netzwerkadapter |
| Formfaktor: | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp): | PCI Express 4.0 x16 |
| PCI-Spezifikationsrevision: | PCIe 4.0 |
| Netzwerk | |
| Ports: | 10/25 Gigabit SFP28 x 4 |
| Anschlusstechnik: | Kabelgebunden |
| Data Link Protocol: | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Statusanzeiger: | Link/Aktivität |
| Leistungsmerkmale: | DCBX-Unterstützung, PXE-Unterstützung, LSO, LRO, RSS, UEFI-Support, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI-Boot, TCP-/IP-Prüfsummen-Offload, UDP-/IP-Prüfsummen-Offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frame-Unterstützung (bis zu 9000 Bytes), NPAR, Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Interrupt Coalescing, ETS, QCN, Multi-Host-Technologie, vSwitch Acceleration, Tunnel-Wware Stateless Offloads, SMBus 2.0, NetQueue |
| Prozessor / Arbeitsspeicher | |
| Prozessor: | Broadcom BCM57504 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 4 x 25Gb Ethernet - SFP+/SFP28 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech, Standardhalterung |
| Kennzeichnung: | Halogenfrei, MSA SFF-8402 |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 16.9 Watt |
| Maße und Gewicht | |
| Gewicht: | 160 g |
