New

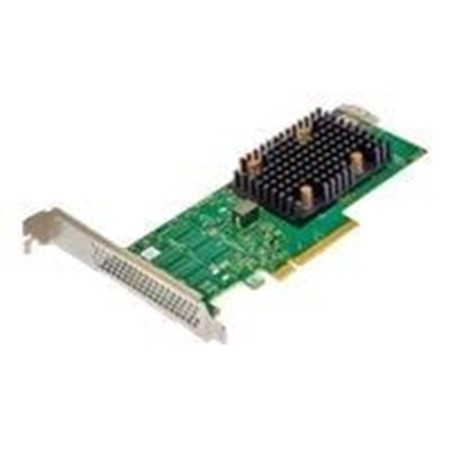

Broadcom 9500 series 8i Tri-mode
Hostbus-Adapter, 8 Sender/Kanal, SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), PCIe 4.0 x8
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Broadcom 9500 series 8i Tri-mode host bus adapter offers a robust solution for connecting hard drives and solid state drives via a versatile Slim SAS connector. With support for SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe) interfaces, this plug-in card ensures high-speed data transfer and storage flexibility.Engineered to meet stringent compliance standards, including RoHS, UL 60950, and FCC CFR47 Part 15 B Class B, the adapter ensures reliability and safety in diverse operational conditions. Its Tri-Mode SerDes technology, coupled with Universal Bay Management (UBM) readiness, provides advanced storage device management and optimization capabilities. Furthermore, the adapters efficient power consumption and a remarkable MTBF of 5,000,000 hours underscore its durability and eco-friendly design, making it an ideal choice for businesses looking to enhance their data centers efficiency and reliability.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3176762 |
| Modell: | 05-50134-01 |
| Zum Hersteller:: | www.broadcom.com |
| Produktbeschreibung: | Broadcom 9500 series 8i Tri-mode - Hostbus-Adapter - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Hostbus-Adapter - Plug-in-Karte |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle: | 8 |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Oracle Enterprise Linux, Linux Fedora, VMware vSphere (ESXi), Citrix XenServer, VMware vSphere |
| Abmessungen (Breite x Tiefe x Höhe): | 15.565 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Hostbus-Adapter - Plug-in-Karte |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle: | 8 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (innerhalb) |
| Verschiedenes | |
| Leistungsmerkmale: | Tri-Mode SerDes-Technologie, kompatibel mit Universal Bay Management (UBM) |
| MTBF: | 5,000,000 Stunden |
| Kennzeichnung: | FCC CFR47 Part 15 B Class B, CNS 13438, ICES-003 Class B, VCCI V-3, AS/NZS CISPR 22, EN55022, EN55024, EN 60950, IEC 60950, UL 60950, WEEE, RoHS |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 5.96 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Oracle Enterprise Linux, Linux Fedora, VMware vSphere (ESXi), Citrix XenServer, VMware vSphere |
| Abmessungen und Gewicht | |
| Tiefe: | 15.565 cm |
| Höhe: | 6.89 cm |
