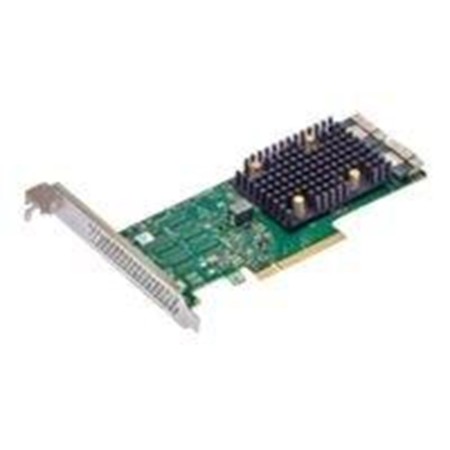

Broadcom 9500 series 16i Tri-Mode
Hostbus-Adapter, 16 Sender/Kanal, SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), PCIe 4.0 x8
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Broadcom 9500 series 16i Tri-Mode storage adapter represents a significant advancement in storage technology, designed to meet the needs of modern data centers and storage environments. This plug-in card seamlessly integrates into your existing infrastructure, providing support for hard drives and solid state drives across SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe) interfaces. With its robust design, the adapter operates reliably within a temperature range of 0 °C to 55 °C, ensuring consistent performance under various conditions.Featuring an impressive MTBF of 5,000,000 hours, the Broadcom 9500 series 16i Tri-Mode adapter is built for durability, offering peace of mind through prolonged operational life. It also incorporates advanced Tri-Mode SerDes technology and is Universal Bay Management (UBM) ready, making it a versatile solution for managing complex storage configurations. Compliance with a wide array of international standards, including RoHS, WEEE, and several others, underscores its global applicability and commitment to environmental responsibility.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3176761 |
| Modell: | 05-50134-00 |
| EAN: | 0830343007646 |
| Zum Hersteller:: | www.broadcom.com |
| Produktbeschreibung: | Broadcom 9500 series 16i Tri-Mode - Hostbus-Adapter - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Hostbus-Adapter - Plug-in-Karte |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle: | 16 |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Oracle Enterprise Linux, Linux Fedora, VMware vSphere (ESXi), Citrix XenServer, VMware vSphere |
| Abmessungen (Breite x Tiefe x Höhe): | 15.565 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Hostbus-Adapter - Plug-in-Karte |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle: | 16 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (innerhalb) |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech |
| Leistungsmerkmale: | Kompatibel mit Universal Bay Management (UBM), Tri-Mode SerDes-Technologie |
| MTBF: | 5,000,000 Stunden |
| Kennzeichnung: | FCC CFR47 Part 15 B Class B, CNS 13438, ICES-003 Class B, VCCI V-3, AS/NZS CISPR 22, EN55022, EN55024, EN 60950, IEC 60950, UL 60950, WEEE, RoHS |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 8.9 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Oracle Enterprise Linux, Linux Fedora, VMware vSphere (ESXi), Citrix XenServer, VMware vSphere |
| Abmessungen und Gewicht | |
| Tiefe: | 15.565 cm |
| Höhe: | 6.89 cm |
