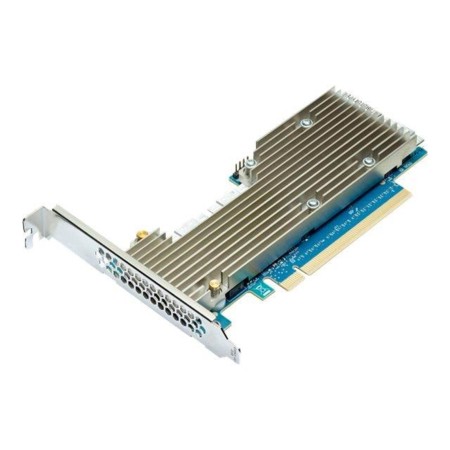

Broadcom P411W-32P

Speicher-Controller, NVMe, Low-Profile, PCIe 4.0 x16

Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.


Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit

€722.97

€722.97 Tax excluded

Security policy
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Customer service
Customer service available 24/7
The Broadcom P411W-32P is the industry's first fully managed Gen 4 NVMe switch adapter, providing enterprise class options for NVMe solid state drive (SSD) attach requirements. The P411W-32P leverages Broadcom's world-class board design, PEX88048 PCIe Gen 4 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. The P411W-32P switch adapter delivers several innovative features, including true surprise add and removal, Downstream Port Containment and Read Tracking, which can help the users avoid typical situations that could cause a kernel panic. The integrated management processor delivers added features, such as SES compatible LED control and BMC support.

Generell
Hersteller: Broadcom
Waren-Nr.: 3187298
Modell: 05-50054-00
EAN: 830343007530
Zum Hersteller:: www.broadcom.com
Produktbeschreibung: Broadcom P411W-32P - Speicher-Controller - NVMe - PCIe 4.0 x16
Gerätetyp: Speicher-Controller - Plug-in-Karte - Low-Profile
Bustyp: PCIe 4.0 x16
Schnittstelle: NVMe
Unterstützte Geräte: Solid State-Laufwerk
Max. Anzahl Speicherperipheriegeräte: 32
Abmessungen (Breite x Tiefe x Höhe): 15.59 cm x 6.89 cm

Allgemein
Gerätetyp: Speicher-Controller - Plug-in-Karte - Low-Profile
Host-Bus: PCIe 4.0 x16
Massenspeicher-Controller
Schnittstelle: NVMe
Unterstützte Geräte: Solid State-Laufwerk
Max. Anzahl Speicherperipheriegeräte: 32
Prozessor: Broadcom PEX88048
Erweiterung/Konnektivität
Schnittstellen: 4 x NVMe - Slim SAS (SFF-8654)
Verbindungen: 1 x PCIe 4.0 x16 - PCI Express
Verschiedenes
Leistungsmerkmale: SecureBoot, kompatibel mit Universal Bay Management (UBM)
MTBF: 5,000,000 Stunden
Kennzeichnung: EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
Stromversorgung
Leistungsaufnahme im Betrieb: 21 Watt
Abmessungen und Gewicht
Tiefe: 15.59 cm
Höhe: 6.89 cm

Broadcom
3187298
12 Items
830343007530
05-50054-00
