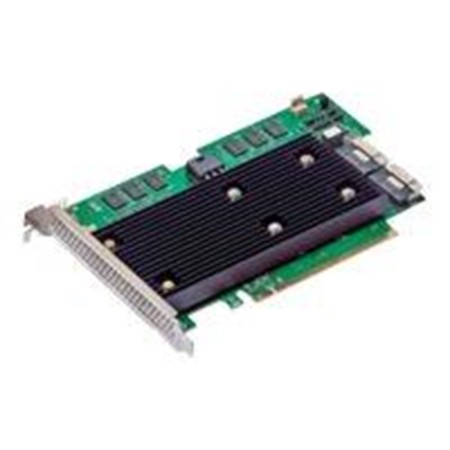

Broadcom MegaRAID 9670W-16i
zoom_out_map
chevron_left chevron_right
New

Broadcom MegaRAID 9670W-16i

Speichercontroller (RAID), 16 Sender/Kanal, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), RAID 0, 1, 10, 5, 50, 6, 60, PCIe 4.0 x16

Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.


Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit

€1,216.13

€1,216.13 Tax excluded

Security policy
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Customer service
Customer service available 24/7
The Broadcom MegaRAID 9670W-16i storage controller is engineered to meet the demands of high-capacity, high-performance storage systems. With support for up to 16 channels and a variety of RAID levels, including 0, 1, 10, 5, 50, 6, and 60, it offers flexibility and reliability for your storage needs. This plug-in card integrates seamlessly into your existing infrastructure, providing robust connectivity options with its internal Slim SAS connectors and compatibility with SATA 6 Gb/s, SAS 24 Gb/s, and PCIe 4.0 (NVMe) interfaces. Its efficient power consumption of only 25 watts and an impressive MTBF of 3,000,000 hours ensure that your system not only performs optimally but also operates cost-effectively and reliably over time. Certified with a wide range of compliance standards, including RoHS, WEEE, and FCC Class B, the Broadcom MegaRAID 9670W-16i is a testament to high-quality engineering and environmental responsibility. Whether you're managing critical data or expanding your storage capabilities, this storage controller delivers the performance, reliability, and efficiency your operations require.

Generell
Hersteller: Broadcom
Waren-Nr.: 3185217
Modell: 05-50113-00
Zum Hersteller:: www.broadcom.com
Produktbeschreibung: Broadcom MegaRAID 9670W-16i - Speichercontroller (RAID) - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x16
Gerätetyp: Speichercontroller (RAID) - Plug-in-Karte
Bustyp: PCIe 4.0 x16
Schnittstelle: SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Unterstützte Geräte: Festplatten Array (RAID)
Anzahl Kanäle: 16
RAID Level: RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Systemanforderungen: FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Abmessungen (Breite x Tiefe x Höhe): 15.565 cm x 11.115 cm

Allgemein
Gerätetyp: Speichercontroller (RAID) - Plug-in-Karte
Host-Bus: PCIe 4.0 x16
Massenspeicher-Controller
Schnittstelle: SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Unterstützte Geräte: Festplatten Array (RAID)
Anzahl Kanäle: 16
RAID Level: RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Erweiterung/Konnektivität
Schnittstellen: 2 x SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (innerhalb)
Verschiedenes
MTBF: 3,000,000 Stunden
Kennzeichnung: FCC Klasse B bescheinigt, CISPR 32, CISPR 32:2015 Class A, EMC, ICES, EN55024, EN 55032, EN 55035, EN 55032:2015+AC:2016 Class A, EN 55035:2017/A11:2020, KN32, KN35, BSMI, CNS 13438, CNS 15663, UL, VCCI-CISPR 32:2016, CMIM, RoHS, WEEE
Stromversorgung
Leistungsaufnahme im Betrieb: 25 Watt
Software / Systemanforderungen
Erforderliches Betriebssystem: FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Abmessungen und Gewicht
Tiefe: 15.565 cm
Höhe: 11.115 cm
