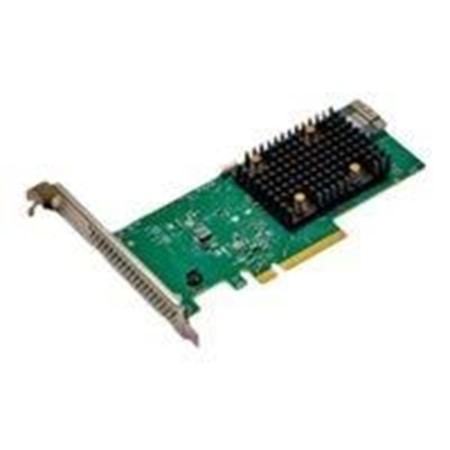

Broadcom MegaRAID 9540-8i
Speichercontroller (RAID), 8 Sender/Kanal, SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), Low-Profile, RAID 0, 1, 10, JBOD, PCIe 4.0 x8
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Broadcom MegaRAID 9540-8i storage controller is engineered to meet the demands of high-performance, multi-device storage systems. It offers a robust solution for managing disk arrays with support for RAID 0, 1, and 10 configurations, optimizing both performance and data protection. Designed for versatility, it accommodates a range of interfaces including SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe), making it a perfect fit for diverse storage environments.With a focus on reliability, the Broadcom MegaRAID 9540-8i boasts an impressive mean time between failures (MTBF) of 3,000,000 hours. This, combined with its compliance to stringent standards such as RoHS and WEEE, ensures a durable and environmentally responsible storage solution. Furthermore, its efficient power consumption of just 6 W not only maximizes system performance but also contributes to lower energy costs, making it an ideal choice for energy-conscious operations.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3183094 |
| Modell: | 05-50134-03 |
| EAN: | 0830343007677 |
| Zum Hersteller:: | www.broadcom.com |
| Produktbeschreibung: | Broadcom MegaRAID 9540-8i - Speichercontroller (RAID) - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte - Low-Profile |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 8 |
| Max. Anzahl Speicherperipheriegeräte: | 240 |
| RAID Level: | RAID 0, RAID 1, RAID 10, JBOD |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen (Breite x Tiefe x Höhe): | 15.565 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte - Low-Profile |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 8 |
| Max. Anzahl Speicherperipheriegeräte: | 240 |
| RAID Level: | RAID 0, RAID 1, RAID 10, JBOD |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (innerhalb) |
| Verschiedenes | |
| Leistungsmerkmale: | Tri-Mode SerDes-Technologie |
| MTBF: | 3,000,000 Stunden |
| Kennzeichnung: | FCC Klasse B bescheinigt, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438 |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 6 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen und Gewicht | |
| Tiefe: | 15.565 cm |
| Höhe: | 6.89 cm |
