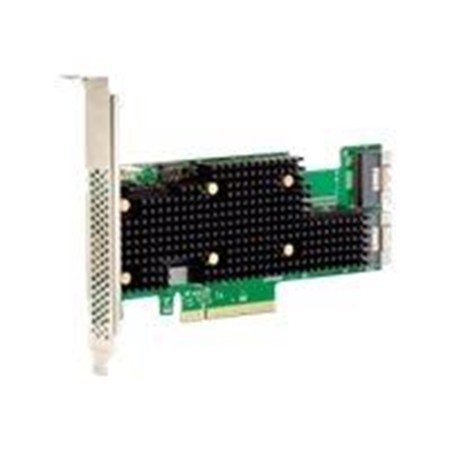

Broadcom HBA 9620-16i
Speichercontroller (RAID), 16 Sender/Kanal, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), RAID 0, 1, 10, PCIe 4.0 x8
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Broadcom HBA 9620-16i storage controller is engineered to meet the demands of high-performance storage systems. It offers robust environmental tolerance, ensuring reliable operation across a wide range of temperatures and humidity levels. With support for multiple interfaces including SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe), it provides flexible connectivity options and high-speed data transfer capabilities. The device's dual Slim SAS (SFF-8654) connectors ensure compatibility with a variety of storage devices. Additionally, its reliability is underscored by an impressive mean time between failures (MTBF) of 5,000,000 hours, making it a dependable choice for critical storage applications. Whether for enterprise data centers or high-capacity storage environments, the HBA 9620-16i is engineered to deliver performance, reliability, and versatility.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3182416 |
| Modell: | 05-50111-02 |
| EAN: | 830343007714 |
| Zum Hersteller:: | www.broadcom.com |
| Produktbeschreibung: | Broadcom HBA 9620-16i - Speichercontroller (RAID) - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 16 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen (Breite x Tiefe x Höhe): | 15.565 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 16 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (innerhalb) |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech |
| MTBF: | 5,000,000 Stunden |
| Kennzeichnung: | FCC Klasse B bescheinigt, CISPR 32, CISPR 32:2015 Class A, EMC, ICES, EN55024, EN 55032, EN 55035, EN 55032:2015+AC:2016 Class A, EN 55035:2017/A11:2020, KN32, KN35, BSMI, CNS 13438, CNS 15663, UL, VCCI-CISPR 32:2016, CMIM, RoHS, WEEE |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 15 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen und Gewicht | |
| Tiefe: | 15.565 cm |
| Höhe: | 6.89 cm |
