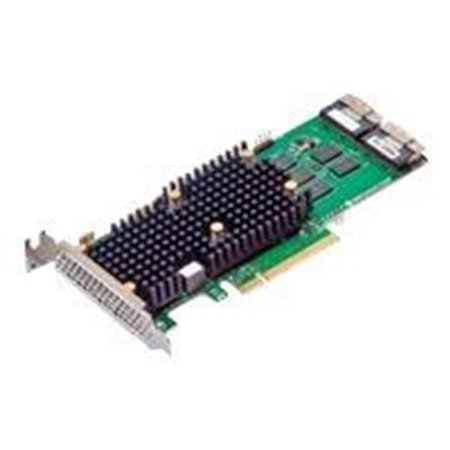

Broadcom MegaRAID 9660-16i
Speichercontroller (RAID), 16 Sender/Kanal, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), RAID 0, 1, 10, 5, 50, 6, 60, PCIe 4.0 x8
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Broadcom MegaRAID 9660-16i storage controller is engineered to meet the demands of high-performance, multi-drive data centers. Designed for reliability and efficiency, it has a remarkable MTBF of 3,000,000 hours, ensuring long-term operation. This plug-in card integrates seamlessly into existing setups with its PCIe 4.0 x8 host bus, offering support for up to 16 channels. It accommodates a broad spectrum of RAID levels, from RAID 0 to RAID 60, catering to various data protection and performance requirements.With its compliance to a wide array of standards, including RoHS, WEEE, and FCC Class B, the Broadcom MegaRAID 9660-16i ensures compatibility and adherence to global regulatory requirements. Its operational power consumption of just 18 watts not only makes it an economical choice but also a friendlier option for the environment. Whether upgrading an existing system or building a new high-capacity server, the Broadcom MegaRAID 9660-16i offers versatility, reliability, and performance needed to support demanding storage applications.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3176763 |
| Modell: | 05-50107-00 |
| EAN: | 830343007769 |
| Zum Hersteller:: | www.broadcom.com |
| Produktbeschreibung: | Broadcom MegaRAID 9660-16i - Speichercontroller (RAID) - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 16 |
| RAID Level: | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60 |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen (Breite x Tiefe x Höhe): | 15.565 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Speichercontroller (RAID) - Plug-in-Karte |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatten Array (RAID) |
| Anzahl Kanäle: | 16 |
| RAID Level: | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (innerhalb) |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech |
| MTBF: | 3,000,000 Stunden |
| Kennzeichnung: | FCC Klasse B bescheinigt, CISPR 32, CISPR 32:2015 Class A, EMC, ICES, EN55024, EN 55032, EN 55035, EN 55032:2015+AC:2016 Class A, EN 55035:2017/A11:2020, KN32, KN35, BSMI, CNS 13438, CNS 15663, UL, VCCI-CISPR 32:2016, CMIM, RoHS, WEEE |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 18 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen und Gewicht | |
| Tiefe: | 15.565 cm |
| Höhe: | 6.89 cm |
