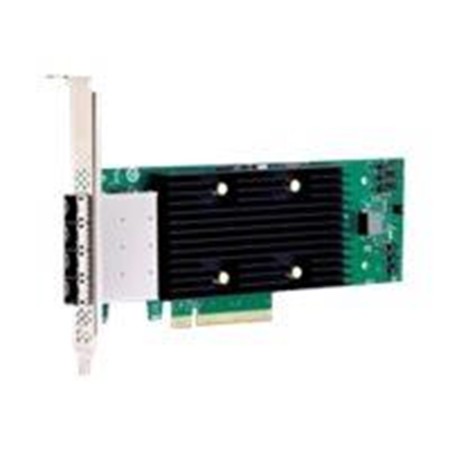

Broadcom HBA 9600-16e
Speicher-Controller, 16 Sender/Kanal, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), PCIe 4.0 x8
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The HBA 9600-16e is a reliable storage controller designed for optimal performance in varied environments. With a wide operating temperature range of 0 °C to 55 °C and a humidity tolerance of 5% to 90% (non-condensing), it operates effectively in both cool and warm conditions. This model supports a total of 16 channels and interfaces for solid-state drives, accommodating SATA 6 Gb/s, SAS 24 Gb/s, and PCIe 4.0 (NVMe) technology, ensuring high-speed data transfer and seamless connectivity.Built as a plug-in card, the HBA 9600-16e features four internal SFF-8644 connectors, enhancing flexibility for integration into existing systems. With a mean time between failures (MTBF) of 5,000,000 hours, it provides long-term reliability for data-intensive applications. Compliance with various international standards, including FCC Class B and RoHS, underscores its commitment to quality and environmental responsibility.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3176759 |
| Modell: | 05-50118-00 |
| Zum Hersteller:: | www.broadcom.com |
| Produktbeschreibung: | Broadcom HBA 9600-16e - Speicher-Controller - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Speicher-Controller - Plug-in-Karte |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Solid State-Laufwerk |
| Anzahl Kanäle: | 16 |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen (Breite x Tiefe x Höhe): | 16.765 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Speicher-Controller - Plug-in-Karte |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Solid State-Laufwerk |
| Anzahl Kanäle: | 16 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 4 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - SFF-8644 (innerhalb) |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech |
| MTBF: | 5,000,000 Stunden |
| Kennzeichnung: | FCC Klasse B bescheinigt, CISPR 32, CISPR 32:2015 Class A, EMC, ICES, EN55024, EN 55032, EN 55035, EN 55032:2015+AC:2016 Class A, EN 55035:2017/A11:2020, KN32, KN35, BSMI, CNS 13438, CNS 15663, UL, VCCI-CISPR 32:2016, CMIM, RoHS, WEEE |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 15 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Abmessungen und Gewicht | |
| Tiefe: | 16.765 cm |
| Höhe: | 6.89 cm |
