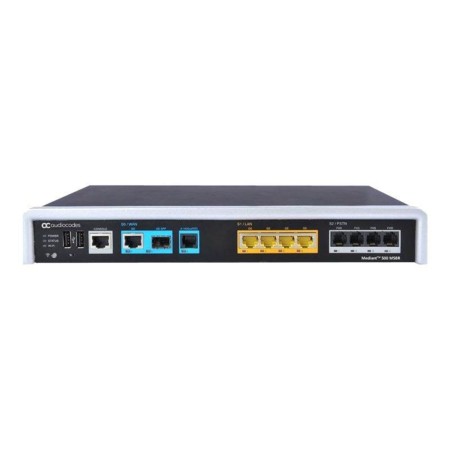

AudioCodes Mediant 500 MSBR - Router
- Router,, DSL-Modem 4-Port-Switch, ATM, 1GbE, PPP, MLPPP
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 8-10 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Mediant 500 multi-service business router (MSBR) is an all-in-one SMB router combining access, data, voice and security in a single device. The Mediant 500 MSBR is perfectly suited for managed data, SIP trunking, hosted PBX and cloud-based services, and allows services providers to deploy flexible and cost-effective solutions.The Mediant 500 is an ideal solution for SMBs supporting up to 3 multiple WAN interfaces, 4 LAN (Gigabit Ethernet) interfaces, 200KPP, up to 200 SBC sessions and up to 30 voice channels.
| Generell | |
| Hersteller: | AudioCodes |
| Waren-Nr.: | 3309062 |
| Modell: | M500-A2GECS |
| Zum Hersteller:: | www.audiocodes.com/ |
| Produktbeschreibung: | AudioCodes Mediant 500 MSBR - Router - DSL-Modem - Desktop |
| Gerätetyp: | Router - DSL-Modem - 4-Port-Switch (integriert) |
| Gehäusetyp: | Desktop - modular - 1U |
| Digital Signaling Protocol: | ADSL over ISDN, VDSL over ISDN |
| Data Link Protocol: | Ethernet, ATM, Fast Ethernet, Gigabit Ethernet, PPP, MLPPP |
| Kapazität: | Maximale Anzahl von Sitzungen: 60 Maximale Anzahl an Benutzern: 500 |
| Jumbo-Rahmenunterstützung: | Ja |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, L2TP, PPPoE, PPPoA, IPoA, IPoE |
| Routing Protocol: | RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, statisches IP Routing, Policy-Based Routing (PBR) |
| Remoteverwaltungsprotokoll: | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, TR-069, TR-098, TR-104, TR-181 |
| VoIP-Protokolle: | SIP |
| Leistungsmerkmale: | Layer 2 switching, Syslog-Unterstützung, Paketfilterung, IDS, IPv6-Unterstützung, IPS, DDos-Angriffschutz, Web Server, DHCP-Server, DHCP-Relais, SPIF, DHCP-Client, Ping of Death, ZTP, DMZ-Unterstützung, VLAN Tagging, IPv4 und IPv6 Dual-Stack |
| Produktzertifizierungen: | IEEE 802.1Q, IEEE 802.1x |
| Stromversorgung: | Wechselstrom 120/230 V (50/60 Hz) |
| Abmessungen (Breite x Tiefe x Höhe): | 31 cm x 21 cm x 4.37 cm |
| Gewicht: | 2 kg |
| Allgemein | |
| Gerätetyp: | Router - 4-Port-Switch (integriert) |
| Gehäusetyp: | Desktop - modular - 1U |
| Anschlusstechnik: | Kabelgebunden |
| Data Link Protocol: | Ethernet, ATM, Fast Ethernet, Gigabit Ethernet, PPP, MLPPP |
| Kapazität: | Maximale Anzahl von Sitzungen: 60 Maximale Anzahl an Benutzern: 500 |
| Jumbo-Rahmenunterstützung: | Ja |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, L2TP, PPPoE, PPPoA, IPoA, IPoE |
| Routing Protocol: | RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, statisches IP Routing, Policy-Based Routing (PBR) |
| Remoteverwaltungsprotokoll: | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, TR-069, TR-098, TR-104, TR-181 |
| Verschlüsselungsalgorithmus: | Dreifach DES, MD5, AES, TLS, 256-bit SHA |
| Authentifizierungsmethode: | RADIUS, TACACS |
| Leistungsmerkmale: | Layer 2 switching, Syslog-Unterstützung, Paketfilterung, IDS, IPv6-Unterstützung, IPS, DDos-Angriffschutz, Web Server, DHCP-Server, DHCP-Relais, SPIF, DHCP-Client, Ping of Death, ZTP, DMZ-Unterstützung, VLAN Tagging, IPv4 und IPv6 Dual-Stack |
| Produktzertifizierungen: | IEEE 802.1Q, IEEE 802.1x |
| Kommunikationsformen | |
| Typ: | DSL-Modem |
| Digital Signaling Protocol: | ADSL over ISDN, VDSL over ISDN |
| IP-Telefonie | |
| VoIP-Protokolle: | SIP |
| Voice Codecs: | G.711, G.722, G.723.1, G.729a, T.38, SILK |
| IP-Telefoniefunktionen: | Echo Cancellation (G.168), Echo Cancellation (G.165) |
| Erweiterung/Konnektivität | |
| Schnittstellen: | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 WAN: VDSL / ADSL over ISDN WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 WAN: 1 x 100Base-X/1000Base-X - SFP (mini-GBIC) |
| Stromversorgung | |
| Stromversorgungsgerät: | Internes Netzteil |
| Erforderliche Netzspannung: | Wechselstrom 120/230 V (50/60 Hz) |
| Maße und Gewicht | |
| Breite: | 31 cm |
| Tiefe: | 21 cm |
| Höhe: | 4.37 cm |
| Gewicht: | 2 kg |
