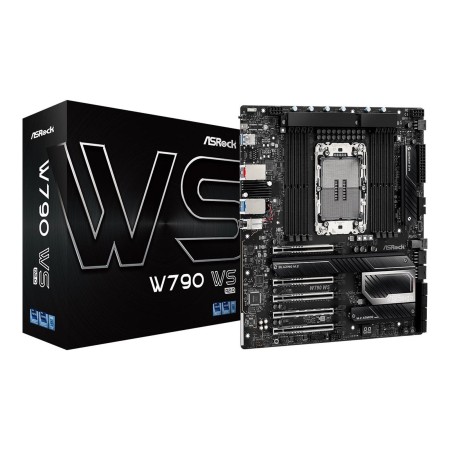

ASRock W790 WS R2.0 Mainboard - Intel W790 - Intel LGA4677 socket - DDR5 RAM - Extended ATX
Mainboard, größe: Extended ATX, Intel LGA4677 socket, Intel W790 chipset, 4 x PCI-Express 5.0 x16, Quad DDR5-5600 8 x DIMM slots, speicheranschlüsse: 8 x SATA-600 / 4 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280) / 1 x U.2, USB 3.2 Gen 2x2 type A & C, Aquantia AQC113CS 10 Gigabit / Intel I226LM 2.5 Gigabit netzwerk (LAN), Realtek ALC897 HD Audio (8-Kanäle)
Die Ware ist leider nicht mehr verfügbar.
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Optimized VRM Design
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
20+2 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
PREMIUM PCB SOLUTION
Server Grade Ultra Low Loss PCB
The server grade ultra low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
14 Layer PCB
The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
DDR5 ECC Memory Support
This workstation motherboard supports 8 DIMMs Quad-Channel DDR5 RDIMM ECC Memory overclocking with max capacity of 2048GB and is able to automatically detected and corrected data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
4 x PCIe Gen5 x16
This workstation motherboard supports 4 PCIe Gen5 x16 slots, deliver all the performance of PCIe Gen5 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.
Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Various Storage Interface Selection
Provides multiple interface for storage devices including mini-SAS HDD connector, SATA3, and M.2 Key-M slot that can support PCIe Gen5 x4 M.2 SSD.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
Supports Intel® vPro technology
The Intel® Ethernet Controller I226LM is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Featuring 2.5Gb/s Ethernet and supports Intel® Active Management Technology on systems enabled with Intel® vPro® technology.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
EZ Setting
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
- Step1: Install Auto Driver Installer
- Step2: ADI will automatically download and install all necessary drivers.
- Step3: Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
20+2 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
PREMIUM PCB SOLUTION
Server Grade Ultra Low Loss PCB
The server grade ultra low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
14 Layer PCB
The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
DDR5 ECC Memory Support
This workstation motherboard supports 8 DIMMs Quad-Channel DDR5 RDIMM ECC Memory overclocking with max capacity of 2048GB and is able to automatically detected and corrected data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
4 x PCIe Gen5 x16
This workstation motherboard supports 4 PCIe Gen5 x16 slots, deliver all the performance of PCIe Gen5 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.
Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Various Storage Interface Selection
Provides multiple interface for storage devices including mini-SAS HDD connector, SATA3, and M.2 Key-M slot that can support PCIe Gen5 x4 M.2 SSD.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
Supports Intel® vPro technology
The Intel® Ethernet Controller I226LM is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Featuring 2.5Gb/s Ethernet and supports Intel® Active Management Technology on systems enabled with Intel® vPro® technology.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
EZ Setting
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
- Step1: Install Auto Driver Installer
- Step2: ADI will automatically download and install all necessary drivers.
- Step3: Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
| Generell | |
| Hersteller: | ASRock |
| Waren-Nr.: | 3325984 |
| Modell: | 90-MXBP30-A0UAYZ |
| EAN: | 4710483946981 |
| Zum Hersteller:: | www.asrock.com/mb/Intel/W790%20WS%20R2.0... |
| Prozessorhersteller: | Intel |
| Prozessorsockel: | LGA 4677 (Socket E) |
| Kompatible Prozessoren: | Intel® Xeon® W |
| Intel® Xeon-Serie: | W-2400, W-3400 |
| Unterstützte Arbeitsspeicher: | DDR5-SDRAM |
| Anzahl der Speichersteckplätze: | 8 |
| RAM-Speicher maximal: | 2,05 TB |
| Arbeitsspeicher Typ: | DIMM |
| Speicherkanäle: | Vierfach-Kanal |
| ECC-Kompatibilität: | ECC |
| Unterstützte Speichertaktrate (max.): | 6800 MHz |
| Unterstützte Speicherlaufwerk-Schnittstellen: | M.2, SATA III |
| Unterstützte Speicherlaufwerke: | HDD & SSD |
| RAID-Unterstützung: | Ja |
| RAID Level: | 0, 1, 5, 10 |
| Anzahl USB 2.0 Schnittstellen: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: | 2 |
| SATA III Anschlüsse: | 8 |
| USB 3.2 Gen 2x2-Anschlüsse: | 1 |
| Front Panel Audiostecker: | Ja |
| ATX Stromstecker (24-pol.): | Nein |
| CPU Ventilatorstecker: | Ja |
| Anzahl der CPU-Lüfteranschlüsse: | 1 |
| Zahl der Chassisventilatorstecker: | 3 |
| Chassis Intrusion Stecker: | Ja |
| EPS Stromstecker (8-pin): | Ja |
| TPM-Anschluss: | Ja |
| 12-V-Stromanschluss: | Ja |
| Anzahl USB 2.0 Anschlüsse: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45): | 2 |
| Anzahl VGA (D-Sub) Anschlüsse: | 0 |
| Anzahl HDMI-Anschlüsse: | 0 |
| Anzahl DVI-D-Anschlüsse: | 0 |
| Mikrofon-Eingang: | Ja |
| S/PDIF-Ausgang: | Ja |
| Ethernet/LAN: | Ja |
| Ethernet Schnittstellen Typ: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet |
| Komponente für: | PC |
| Motherboardformfaktor: | Erweitertes ATX |
| Motherboard Chipsatz Familie: | Intel |
| Motherboard Chipsatz: | Intel W790 |
| Audio Kanäle: | 7.1 Kanäle |
| Audio-Chip: | Realtek ALC897 |
| Unterstützte Linux-Betriebssysteme: | Ja |
| Unterstützt Windows-Betriebssysteme: | Windows 10 x64, Windows 11 x64 |
| Zertifizierung: | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
| PCI Express x16-Steckplätze (Gen 4.x): | 1 |
| PCI Express x16-Steckplätze (Gen 5.x): | 1 |
| BIOS-Typ: | UEFI AMI |
| BIOS-Speichergröße: | 256 Mbit |
| Clear-CMOS-Taste: | Ja |
| Breite: | 305 mm |
| Tiefe: | 277 mm |
| Prozessor | |
| Prozessorhersteller: | Intel |
| Prozessorsockel: | LGA 4677 (Socket E) |
| Kompatible Prozessoren: | Intel® Xeon® W |
| Intel® Xeon-Serie: | W-2400, W-3400 |
| Speicher | |
| Unterstützte Arbeitsspeicher: | DDR5-SDRAM |
| Anzahl der Speichersteckplätze: | 8 |
| RAM-Speicher maximal: | 2,05 TB |
| Arbeitsspeicher Typ: | DIMM |
| Speicherkanäle: | Vierfach-Kanal |
| ECC-Kompatibilität: | ECC |
| Unterstützte Speichertaktrate (max.): | 6800 MHz |
| Speicher-Controller | |
| Unterstützte Speicherlaufwerk-Schnittstellen: | M.2, SATA III |
| Unterstützte Speicherlaufwerke: | HDD & SSD |
| RAID-Unterstützung: | Ja |
| RAID Level: | 0, 1, 5, 10 |
| Interne E/A-Anschlüsse | |
| Anzahl USB 2.0 Schnittstellen: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: | 2 |
| SATA III Anschlüsse: | 8 |
| USB 3.2 Gen 2x2-Anschlüsse: | 1 |
| Front Panel Audiostecker: | Ja |
| ATX Stromstecker (24-pol.): | Nein |
| CPU Ventilatorstecker: | Ja |
| Anzahl der CPU-Lüfteranschlüsse: | 1 |
| Zahl der Chassisventilatorstecker: | 3 |
| Chassis Intrusion Stecker: | Ja |
| EPS Stromstecker (8-pin): | Ja |
| TPM-Anschluss: | Ja |
| 12-V-Stromanschluss: | Ja |
| E/A-Anschlüsse auf der Rückseite | |
| Anzahl USB 2.0 Anschlüsse: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45): | 2 |
| Anzahl VGA (D-Sub) Anschlüsse: | 0 |
| Anzahl HDMI-Anschlüsse: | 0 |
| Anzahl DVI-D-Anschlüsse: | 0 |
| Mikrofon-Eingang: | Ja |
| S/PDIF-Ausgang: | Ja |
| Netzwerk | |
| Ethernet/LAN: | Ja |
| Ethernet Schnittstellen Typ: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet |
| Merkmale | |
| Komponente für: | PC |
| Motherboardformfaktor: | Erweitertes ATX |
| Motherboard Chipsatz Familie: | Intel |
| Motherboard Chipsatz: | Intel W790 |
| Audio Kanäle: | 7.1 Kanäle |
| Audio-Chip: | Realtek ALC897 |
| Unterstützte Linux-Betriebssysteme: | Ja |
| Unterstützt Windows-Betriebssysteme: | Windows 10 x64, Windows 11 x64 |
| Zertifizierung: | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
| Erweiterungssteckplätze | |
| PCI Express x16-Steckplätze (Gen 4.x): | 1 |
| PCI Express x16-Steckplätze (Gen 5.x): | 1 |
| BIOS | |
| BIOS-Typ: | UEFI AMI |
| BIOS-Speichergröße: | 256 Mbit |
| Clear-CMOS-Taste: | Ja |
| Gewicht und Abmessungen | |
| Breite: | 305 mm |
| Tiefe: | 277 mm |
