Allied Telesis AT
Switch, L3, managed, 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+, an Rack montierbar, PoE+ (370 W)
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Verfügbar - 5-7 Werktage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7

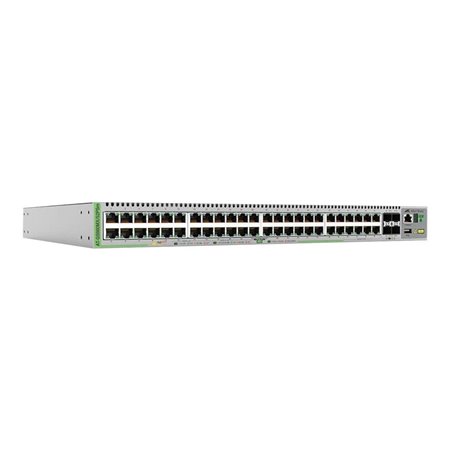

The CentreCOM GS980MX/52PSm stackable Layer 3 Lite switch is high-performing and feature-rich, with 40 x 100M/1G and 8 x 100m/1G/2.5G/5G PoE+ ports, and 4 x 10G uplinks.
| Generell | |
| Hersteller: | Allied Telesis |
| Waren-Nr.: | 2994365 |
| Modell: | AT-GS980MX/52PSM-50 |
| EAN: | 0767035218434 |
| Zum Hersteller:: | www.alliedtelesis.com/ |
| Produktbeschreibung: | Allied Telesis CentreCOM AT-GS980MX/52PSM - Switch - 52 Anschlüsse - managed - an Rack montierbar |
| Gerätetyp: | Switch - 52 Anschlüsse - L3 - managed - stapelbar |
| Gehäusetyp: | An Rack montierbar 1U |
| Untertyp: | Gigabit Ethernet |
| Ports: | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE): | PoE+ |
| PoE-Budget: | 370 W |
| Leistung: | Switching Fabric-Bandbreite: 240 Gbit/s Weiterleitungsrate: 179 Mpps Latenzzeit (10 Gbps): 1.67 µs Latenzzeit (5 Gbit/s): 5.06 µs Latenzzeit (2,5 Gbit/s): 7.51 µs Latenz (1 Gbps): 7.75 µs Latenzzeit (100 Mbps): 8.34 µs |
| Kapazität: | Pufferkapazität (MB): 1.5 Konfigurierbare VLANs: 4094 Prioritäts-Warteschlangen: 8 |
| Größe der MAC-Adresstabelle: | 16.000 Einträge |
| Jumbo-Rahmenunterstützung: | 10KB |
| Routing Protocol: | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, statisches IPv4-Routing, statisches IPv6-Routing, MLDv2, MLD, CIDR |
| Remoteverwaltungsprotokoll: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Leistungsmerkmale: | Flusskontrolle, ARP-Unterstützung, OCSP-Unterstützung, VLAN-Unterstützung, IGMP Snooping, Port-Spiegelung, DiffServ-Unterstützung, MAC-Adressenfilter, SNTP-Unterstützung, RSTP-Unterstützung, MSTP Support, DHCP-Snooping, ACL Support, QoS, MLD-Snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP-Trap, DHCP-Client, MIB, Sperre für MAC-Adresse, GVRP, NAC, Verhindern von Schleifenbildung, Anschlussisolierung, SP, 802.1x-Authentifizierung, VoIP-Unterstützung, IP-Quellwächter, EPSRing, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC Adressenauthentifizierung, NTP, Active Fiber Monitoring, AAA, IGMP Abfrager, VLAN-Spiegelung, Voice VLAN, LLDP-MED, Private VLAN, Sturmsicherung, Guest VLAN, WRR, Loopback-Erkennung, VLAN Tagging, BPDU Guard |
| Produktzertifizierungen: | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| Stromversorgung: | Wechselstrom 100-240 V (50/60 Hz) |
| Abmessungen (Breite x Tiefe x Höhe): | 44.1 cm x 42.1 cm x 4.4 cm |
| Gewicht: | 6.1 kg |
| Lokalisierung: | Europa |
| Allgemein | |
| Gerätetyp: | Switch - 52 Anschlüsse - L3 - managed - stapelbar |
| Gehäusetyp: | An Rack montierbar 1U |
| Untertyp: | Gigabit Ethernet |
| Ports: | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE): | PoE+ |
| PoE-Budget: | 370 W |
| Leistung: | Switching Fabric-Bandbreite: 240 Gbit/s Weiterleitungsrate: 179 Mpps Latenzzeit (10 Gbps): 1.67 µs Latenzzeit (5 Gbit/s): 5.06 µs Latenzzeit (2,5 Gbit/s): 7.51 µs Latenz (1 Gbps): 7.75 µs Latenzzeit (100 Mbps): 8.34 µs |
| Kapazität: | Pufferkapazität (MB): 1.5 Konfigurierbare VLANs: 4094 Prioritäts-Warteschlangen: 8 |
| Größe der MAC-Adresstabelle: | 16.000 Einträge |
| Jumbo-Rahmenunterstützung: | 10KB |
| Max. Einheiten pro Stack: | 4 |
| Routing Protocol: | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, statisches IPv4-Routing, statisches IPv6-Routing, MLDv2, MLD, CIDR |
| Remoteverwaltungsprotokoll: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Verschlüsselungsalgorithmus: | DES, Dreifach DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-Bit AES, 192-Bit AES, 256-Bit-AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-Bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-Bit SHA-2, CCM, CMAC, GCM, XTS, DRBG |
| Authentifizierungsmethode: | RADIUS, X.509-Zertifikate, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Leistungsmerkmale: | Flusskontrolle, ARP-Unterstützung, OCSP-Unterstützung, VLAN-Unterstützung, IGMP Snooping, Port-Spiegelung, DiffServ-Unterstützung, MAC-Adressenfilter, SNTP-Unterstützung, RSTP-Unterstützung, MSTP Support, DHCP-Snooping, ACL Support, QoS, MLD-Snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP-Trap, DHCP-Client, MIB, Sperre für MAC-Adresse, GVRP, NAC, Verhindern von Schleifenbildung, Anschlussisolierung, SP, 802.1x-Authentifizierung, VoIP-Unterstützung, IP-Quellwächter, EPSRing, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC Adressenauthentifizierung, NTP, Active Fiber Monitoring, AAA, IGMP Abfrager, VLAN-Spiegelung, Voice VLAN, LLDP-MED, Private VLAN, Sturmsicherung, Guest VLAN, WRR, Loopback-Erkennung, VLAN Tagging, BPDU Guard |
| Produktzertifizierungen: | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| RAM: | 1 GB DDR3 SDRAM |
| Flash-Speicher: | 256 MB |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 40 x 10/100/1000 Base-T (PoE+) RJ-45 8 x 100/1000/2.5G/5G (PoE+) RJ-45 4 x 1/10Gbit LAN SFP+ |
| Stromversorgung | |
| Stromversorgungsgerät: | Internes Netzteil |
| Installierte Anzahl: | 1 |
| Erforderliche Netzspannung: | Wechselstrom 100-240 V (50/60 Hz) |
| Verschiedenes | |
| Produktzertifizierungen: | FCC Klasse A zertifiziert, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A |
| Lokalisierung: | Europa |
| Software / Systemanforderungen | |
| Software inbegriffen: | Alliedware Plus |
| Maße und Gewicht | |
| Breite: | 44.1 cm |
| Tiefe: | 42.1 cm |
| Höhe: | 4.4 cm |
| Gewicht: | 6.1 kg |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 56.3 cm |
| Transporttiefe: | 63.2 cm |
| Transporthöhe: | 12.8 cm |
| Transportgewicht: | 8.1 kg |
