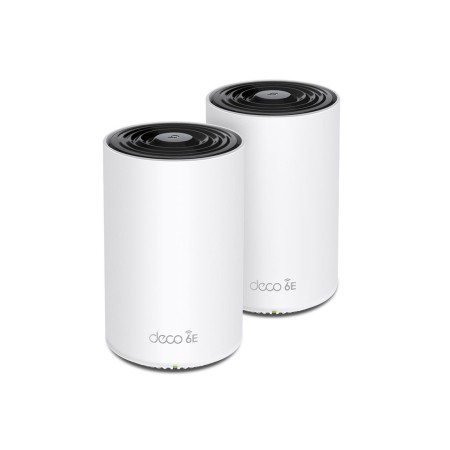

TP-Link Deco XE75 Pro AXE5400 Tri-Band Mesh Wi-Fi 6E System (2-Pack) - Mesh router Wi-Fi 6
WLAN-System (2 Router), bis zu 510 m², Netz, 1GbE, 2.5GbE, Wi-Fi 6E, Wi-Fi 6, Multi-Band
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Kostenloser Versand (Privatkunden)
Bestellware - 17-19 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
Ultra-performance Wi-Fi 6E with multi-Gig connection.
| Generell | |
| Hersteller: | TP-Link |
| Waren-Nr.: | 3171790 |
| Modell: | DECO XE75 PRO(2-PACK) |
| EAN: | 4897098684986 |
| Zum Hersteller:: | www.tp-link.com |
| Kontaktieren Sie den Hersteller: | www.tp-link.com/en/support/ce |
| Produktbeschreibung: | TP-Link Deco XE75 Pro V1 - WLAN-System - Wi-Fi 6 - Desktop |
| Gerätetyp: | WLAN-System - Netz |
| Gehäusetyp: | Desktop |
| WLAN-System Komponenten: | 2 Router |
| WLAN-System Abdeckung: | Bis zu 510 m² |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) |
| Frequenzband: | 2,4 GHz / 5 GHz / 6 GHz |
| Datenübertragungsrate: | 5400 Mbps |
| Leistung: | Maximale Datenrate (2,4 GHz): 574 Mbit/s Maximale Datenrate (5 GHz): 2402 Mbit/s Maximale Datenrate (6 GHz): 2402 Mbit/s Channel-Bandbreite: 160 MHz |
| Kapazität: | Verbundene Geräte: bis zu 200 Streams: 6 |
| Netzwerk/Transportprotokoll: | PPTP, L2TP, PPPoE, DHCP, DDNS, IPv4, IPv6 |
| Routing Protocol: | IGMP, statisches IP Routing |
| Intelligenter Assistent: | Alexa - indirekt |
| Remoteverwaltungsprotokoll: | DHCP, IPv4, IPv6 |
| Leistungsmerkmale: | Abtastautomatik pro Gerät, IGMP Snooping, SPI, IPS, Kindersicherung, Betriebsmodus „Access-Point“, DDos-Angriffschutz, QoS, DHCP-Server, Port-Weiterleitung, NAP, Reset-Taste, dynamischer IP-Modus, FOTA, IGMP-Proxy, Beamforming-Technologie, Tri-Band, Routermodus, Backhaul Technology, 2x2 Mu-Mimo-Technologie, VLAN Tagging, IPTV-Support, BSS Coloring, Guest Network, Address Reservation, Real-Time IoT Protection, Blocker für bösartige Websites, Home Network Scanner, network access control, Allow/Deny List, AI-Driven Mesh |
| Produktzertifizierungen: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
| Stromversorgung: | Wechselstrom 100-240 V (50/60 Hz) 0.8 A |
| Abmessungen (Breite x Tiefe x Höhe): | 10.5 cm x 10.5 cm x 16.9 cm |
| Gewicht: | 960 g |
| Allgemein | |
| Gerätetyp: | WLAN-System - Netz - 3-Port-Switch (integriert) |
| WLAN-System Komponenten: | 2 Router |
| WLAN-System Abdeckung: | Bis zu 510 m² |
| Gehäusetyp: | Desktop |
| Anschlusstechnik: | Kabellos, kabelgebunden |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) |
| Frequenzband: | 2,4 GHz / 5 GHz / 6 GHz |
| Datenübertragungsrate: | 5400 Mbps |
| Leistung: | Maximale Datenrate (2,4 GHz): 574 Mbit/s Maximale Datenrate (5 GHz): 2402 Mbit/s Maximale Datenrate (6 GHz): 2402 Mbit/s Channel-Bandbreite: 160 MHz |
| Kapazität: | Verbundene Geräte: bis zu 200 Streams: 6 |
| Netzwerk/Transportprotokoll: | PPTP, L2TP, PPPoE, DHCP, DDNS, IPv4, IPv6 |
| Routing Protocol: | IGMP, statisches IP Routing |
| Remoteverwaltungsprotokoll: | DHCP, IPv4, IPv6 |
| Verschlüsselungsalgorithmus: | WPA, WPA2-PSK, WPA3, WPA3-Personal, WPA2-Personal, WPA-Personal |
| WLAN-Rating: | AXE5400 |
| Vermaschtes Netz: | Ja |
| Leistungsmerkmale: | Abtastautomatik pro Gerät, IGMP Snooping, SPI, IPS, Kindersicherung, Betriebsmodus „Access-Point“, DDos-Angriffschutz, QoS, DHCP-Server, Port-Weiterleitung, NAP, Reset-Taste, dynamischer IP-Modus, FOTA, IGMP-Proxy, Beamforming-Technologie, Tri-Band, Routermodus, Backhaul Technology, 2x2 Mu-Mimo-Technologie, VLAN Tagging, IPTV-Support, BSS Coloring, Guest Network, Address Reservation, Real-Time IoT Protection, Blocker für bösartige Websites, Home Network Scanner, network access control, Allow/Deny List, AI-Driven Mesh |
| Produktzertifizierungen: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6E, FCC Part 15, RoHS |
| Prozessor: | 1.7 GHz |
| Statusanzeiger: | Status |
| Leitungsmerkmale | |
| Leitungskodierformat: | 1024 QAM, OFDMA |
| Internet der Dinge (IoT) | |
| Internet der Dinge (IoT) kompatibel: | Ja |
| Kommunikationsart: | Wolke |
| Kommunikationstechnologie: | Wi-Fi |
| Intelligenter Assistent: | Alexa |
| Sprachgesteuert: | Indirekt |
| Erweiterung/Konnektivität | |
| Schnittstellen: | WAN / LAN: 1 x 2.5GBase-T - RJ-45 WAN / LAN: 2 x 1000Base-T - RJ-45 |
| Antenne | |
| Antenne: | Intern |
| Antennenzahl: | 4 |
| Stromversorgung | |
| Stromversorgungsgerät: | Externer Netzadapter |
| Installierte Anzahl: | 2 |
| Erforderliche Netzspannung: | Wechselstrom 100-240 V (50/60 Hz) |
| Erforderlicher elektrischer Strom: | 0.8 A |
| Leistungsaufnahme im Betrieb: | 23 Watt |
| Verschiedenes | |
| Enthaltene Kabel: | 1 x Netzwerkkabel |
| Software / Systemanforderungen | |
| Bereitgestelltes Betriebssystem: | Kein Betriebssystem |
| Software inbegriffen: | TP-Link HomeShield |
| Maße und Gewicht | |
| Breite: | 10.5 cm |
| Tiefe: | 10.5 cm |
| Höhe: | 16.9 cm |
| Gewicht: | 960 g |
