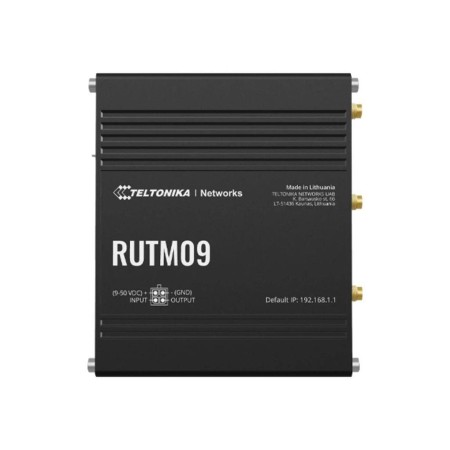

Teltonika RUTM09 - router - WWAN - 3G 4G - desktop - Router
Router, WWAN 3-Port-Switch, 1GbE, Wi-Fi 5, 3G, 4G
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 8-10 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The Teltonika RUTM09 is designed for modern connectivity needs, featuring built-in GPS, GLONASS, Galileo, and QZSS for precise location tracking. This robust router operates in extreme conditions, with a temperature range of -40°C to 75°C and supports up to 90% humidity. With advanced security protocols and multiple networking capabilities, it ensures reliable communication across various applications. The 16 MB flash memory and ample connectivity options, including LTE CAT6 for mobile broadband, provide flexibility and performance for businesses and IoT integrations. Features like load balancing, Quality of Service (QoS), and mobile quota control make it a suitable choice for efficient networking solutions, while the compact design allows for easy placement in any workspace.
| Generell | |
| Hersteller: | Teltonika |
| Waren-Nr.: | 3345276 |
| Modell: | RUTM09000000 |
| EAN: | 4779051840472 |
| Produktbeschreibung: | Teltonika RUTM09 - Router - WWAN - 3G, 4G - Desktop |
| Gerätetyp: | Router - drahtloses Mobilfunkmodem - 3-Port-Switch (integriert) |
| Gehäusetyp: | Desktop |
| Zellprotokoll: | LTE CAT6 |
| Generation: | 3G, 4G |
| WAN-Ports Anz.: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Leistung: | Datenübertragungsrate: 867 Mbit/s |
| Netzwerk/Transportprotokoll: | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, SMTP, DHCP, Telnet, DDNS, OpenVPN |
| Routing Protocol: | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, PPPoE, VXLAN, VRF |
| Plattform: | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Remoteverwaltungsprotokoll: | ICMP, HTTP, HTTPS, SSH, SMPP, MQTT, SSH-2, TR-069, JSON-RPC, Modbus TCP |
| VoIP-Protokolle: | H.323, SIP |
| Leistungsmerkmale: | Aluminiumgehäuse, 3GPP Release 15, Reset-Taste, schwarze Liste, USSD-Unterstützung, White List, SIM-Idle-Schutzdienst, Auto APN, MU-MIMO-Technologie, geschützte Management-Rahmen, drahtloser QR-Code-Generator, TravelMate, statisches Routing, Dynamisches Routing, richtlinienbasierte Weiterleitung, PPP, UPnP, WOL, Verbindungsüberwachung, QoS, SQM, Lastenausgleich, Hotspot Zugangspunkt-Fahigkeit, SSHFS-Support, Traffic Management, PSK, digitale Zertifikate, DDoS Protection, VLAN-Unterstützung, Mobile Quotenüberprüfung, Web Filtering, SSL-Zertifikat-Generierung, GRE-Tunneling, DMVPN, Unterstützung von SSTP-Client-Instanzen, VPN-Klient, VPN-Server, Tailscale-Verschlüsselung, DLMS Support, API-Support |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3az |
| Abmessungen (Breite x Tiefe x Höhe): | 11.5 cm x 9.51 cm x 4.42 cm |
| Gewicht: | 457 g |
| Lokalisierung: | Europa |
| Allgemein | |
| Gerätetyp: | Router - 3-Port-Switch (integriert) |
| Gehäusetyp: | Desktop |
| Anschlusstechnik: | Kabelgebunden |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Leistung: | Datenübertragungsrate: 867 Mbit/s |
| Netzwerk/Transportprotokoll: | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, SMTP, DHCP, Telnet, DDNS, OpenVPN |
| Routing Protocol: | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, PPPoE, VXLAN, VRF |
| Remoteverwaltungsprotokoll: | ICMP, HTTP, HTTPS, SSH, SMPP, MQTT, SSH-2, TR-069, JSON-RPC, Modbus TCP |
| Verschlüsselungsalgorithmus: | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, SSL, TLS, IKE, IKEv2, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, MODBUS |
| Authentifizierungsmethode: | Extended Service Set ID (ESSID), X.509-Zertifikate, TACACS+, RADIUS |
| Leistungsmerkmale: | Aluminiumgehäuse, 3GPP Release 15, Reset-Taste, schwarze Liste, USSD-Unterstützung, White List, SIM-Idle-Schutzdienst, Auto APN, MU-MIMO-Technologie, geschützte Management-Rahmen, drahtloser QR-Code-Generator, TravelMate, statisches Routing, Dynamisches Routing, richtlinienbasierte Weiterleitung, PPP, UPnP, WOL, Verbindungsüberwachung, QoS, SQM, Lastenausgleich, Hotspot Zugangspunkt-Fahigkeit, SSHFS-Support, Traffic Management, PSK, digitale Zertifikate, DDoS Protection, VLAN-Unterstützung, Mobile Quotenüberprüfung, Web Filtering, SSL-Zertifikat-Generierung, GRE-Tunneling, DMVPN, Unterstützung von SSTP-Client-Instanzen, VPN-Klient, VPN-Server, Tailscale-Verschlüsselung, DLMS Support, API-Support |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3az, IP30, UKCA, RCM, CB, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.2.1, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020, AS/NZS 62368.1:2022, IEC 62368-1:2018 |
| Prozessor: | MediaTek MIPS 1004Kc 880 MHz |
| RAM: | 256 MB DDR3 SDRAM |
| Flash-Speicher: | 16 MB |
| Integrierte Peripheriegeräte: | GPS / GLONASS / Galileo / QZSS |
| Statusanzeiger: | WAN, Mobilnetztyp, Signalstärke, LAN, Stromversorgung, Art des Netzdienstes |
| Kommunikationsformen | |
| Typ: | Drahtloses Mobilfunkmodem |
| Zellprotokoll: | LTE CAT6 |
| Generation: | 3G, 4G |
| Max. Datenübertragungsrate: | 300 Mbps |
| IP-Telefonie | |
| VoIP-Protokolle: | H.323, SIP |
| Internet der Dinge (IoT) | |
| Internet der Dinge (IoT) kompatibel: | Ja |
| Plattform: | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Erweiterung/Konnektivität | |
| Schnittstellen: | LAN: 4 x 10/100/1G Ethernet - RJ-45 1 x DI 1 x DO Antenne: 2 x SMA - LTE Antenne: 1 x SMA - GNSS-Antenne USB: 1 x Typ A WAN: 1 x 10/100/1G Ethernet - RJ-45 |
| Erweiterungssteckplätze: | 2 (gesamt)/ 2 (frei) x Mini-SIM |
| Stromversorgung | |
| Stromversorgungsgerät: | Externer Netzadapter - 18 Watt |
| Leistungsaufnahme im Betrieb: | 9.82 Watt |
| Verschiedenes | |
| Zubehör im Lieferumfang: | 4 x LTE-Antennen, SIM-Karten-Adapterkit, GNSS-Antenne, Netzteil (EU) |
| Enthaltene Kabel: | 1 x Netzwerkkabel - 1.5 m |
| Lokalisierung: | Europa |
| Software / Systemanforderungen | |
| Bereitgestelltes Betriebssystem: | RutOS |
| Maße und Gewicht | |
| Breite: | 11.5 cm |
| Tiefe: | 9.51 cm |
| Höhe: | 4.42 cm |
| Gewicht: | 457 g |
