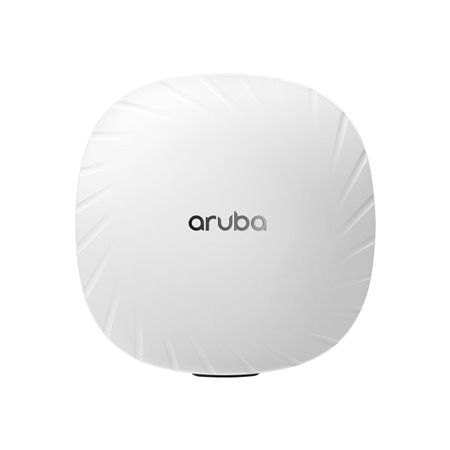

Hewlett Packard Enterprise Aruba AP-535 Access Point RW Dual Radio 4x4:4
Campus, Accesspoint, ZigBee, Bluetooth, Wi-Fi 6, 2.4 GHz, 5 GHz
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
Günstigste Versandoption 4,99 €
Bestellware - 7-9 Tage Lieferzeit
Security policy
SSL Certificate available for secure payments
SSL Certificate available for secure payments
Delivery policy
Shipping home safely
Shipping home safely
Customer service
Customer service available 24/7
Customer service available 24/7
The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. This series can be deployed using Zero Touch Provisioning, without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.
| Generell | |
| Hersteller: | Hewlett Packard Enterprise |
| Waren-Nr.: | 2804660 |
| Modell: | JZ336A |
| EAN: | 0190017232751 |
| Zum Hersteller:: | www.hp.com |
| Produktbeschreibung: | HPE Aruba AP-535 (RW) - Campus - Accesspoint - ZigBee, Bluetooth, Wi-Fi 6 |
| Gerätetyp: | Accesspoint |
| Formfaktor: | Extern - innen |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 1,150 Mbit/s Maximale Datenrate (5 GHz): 2,4 Gbit/s Aggregatbandbreite: 3,55 Gbit/s |
| Kapazität: | Drahtlose Klienten pro W-Lan-Radio: 1024 OFDMA-Einheiten: 37 BSSIDs über Radio: 16 |
| Zubehör im Lieferumfang: | Basishalterung |
| Erforderliches Betriebssystem: | ArubaOS, InstantOS |
| Power Over Ethernet (PoE)-Unterstützung: | PoE |
| Abmessungen (Breite x Tiefe x Höhe): | 24 cm x 24 cm x 5.7 cm |
| Gewicht: | 1.27 kg |
| Allgemein | |
| Gerätetyp: | Accesspoint |
| Robustes Design: | Innen |
| Breite: | 24 cm |
| Tiefe: | 24 cm |
| Höhe: | 5.7 cm |
| Gewicht: | 1.27 kg |
| Netzwerk | |
| Formfaktor: | Extern |
| Anschlusstechnik: | Kabellos |
| Datenübertragungsrate: | 2.4 Gbps |
| Leitungskodierformat: | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread-Spectrum-Methode: | OFDM, DSSS |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 1,150 Mbit/s Maximale Datenrate (5 GHz): 2,4 Gbit/s Aggregatbandbreite: 3,55 Gbit/s |
| Kapazität: | Drahtlose Klienten pro W-Lan-Radio: 1024 OFDMA-Einheiten: 37 BSSIDs über Radio: 16 |
| Statusanzeiger: | System, Status |
| Leistungsmerkmale: | Trusted Platform Module (TPM), LACP-Support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), kompatibel mit Transmit Beam-Forming (TxBF), Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Shift Diversity (CSD), AppRF-Technologie, MU-MIMO-Technologie, Paketaggregation A-MPDU, Paketaggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), unterstützt High-Throughput (HT), 4x4 Mu-Mimo-Technologie, LED aus-Modus, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, Spektrumanalysator, unterstützt Very High Throughput (VHT), Sicherheitsslot (kompatibel mit Kensington Slot), Orthogonal Frequency Division Multiple Access (OFDMA), einheitlicher AP-Support, benutzerdefinierter Tiefschlaf-Modus, unterstützt High Efficiency (HE), Target Wait Time (TWT) |
| Verschlüsselungsalgorithmus: | WPA, WPA2, WPA3 |
| Produktzertifizierungen: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Antenne | |
| Antenne: | Intern |
| Antennenzahl: | 4 |
| Richtwirkung: | Ungerichtet |
| Gain Level: | 5.4 dBi |
| Internet der Dinge (IoT) | |
| Internet der Dinge (IoT) kompatibel: | Ja |
| Kommunikationstechnologie: | Bluetooth, Zigbee |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 1 x HPE Smart Rate - RJ-45 1 x 5GBase-T - RJ-45 1 x USB 2.0 - Type A 1 x Konsole - Micro-USB |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Basishalterung |
| MTBF: | 114 Jahre |
| Kennzeichnung: | EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU |
| Stromversorgung | |
| Power Over Ethernet (PoE)-Unterstützung: | PoE |
| Leistungsaufnahme im Betrieb: | 26.4 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | ArubaOS, InstantOS |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 28.5 cm |
| Transporttiefe: | 30 cm |
| Transporthöhe: | 10.5 cm |
| Transportgewicht: | 1.93 kg |
