Fractal Design Prisma AL-14 ARGB PWM 3-pack - Gehäuselüfter - 140mm - Weiß - 34 dBA
Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
SSL Certificate available for secure payments
Shipping home safely
Customer service available 24/7

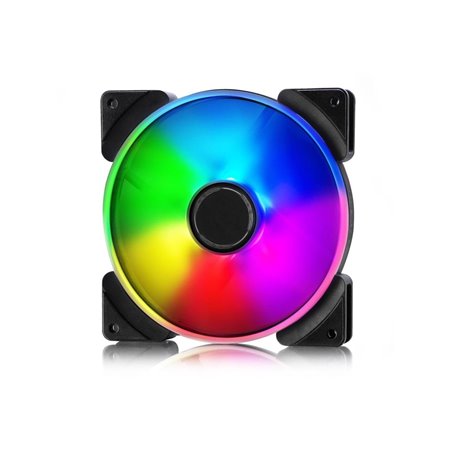

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.
Key features
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring produce an exceptionally uniform glow
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
- Integrated vibration-damping corners made from high-quality synthetic rubber
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Chainable RGB cables simplify wiring and make the most of available connections
- PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only)
- Black sleeved power cables offer an extra touch of style
- Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
- 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets
Specifications
Specification | Prisma AL-14 | Prisma AL-14 PWM |
Size | 140 x 140 x 25 mm | 140 x 140 x 25 mm |
Blade color | Semi-opaque white | Semi-opaque white |
Frame color | Black | Black |
LED type | Addressable RGB | Addressable RGB |
Screw hole pattern | 125 x 125 mm | 125 x 125 mm |
Power connector | 3-pin | 4-pin |
Bearing | LLS | LLS |
Number of blades | 7 | 7 |
Rotational speed | 1000 RPM | 500 – 1700 RPM |
Noise level | 19.4 dB(A) | 34.1 dB(A) |
Airflow (CFM) | 63.33 CFM | 103.85 CFM |
Airflow (m3/h) | 107.60 m3/h | 176.44 m3/h |
Static pressure | 1.07 mmH2O | 2.38 mmH2O |
Fan input power | 1.2W | 2.16W |
Fan max input current | 0.30A | 0.30A |
Fan input voltage | 12V | 12V |
Fan starting voltage | 7V | 7V |
LED input power | 1.50W | 1.50W |
LED max input current | 0.30A | 0.30A |
LED input voltage | 5V | 5V |
Low (0-20%) PWM speed | N/A | 500 RPM |
Low PWM noise level | N/A | 15.1 dB(A) |
Low PWM airflow | N/A | 31.67 CFM |
Low PWM static pressure | N/A | 0.44 mmH2O |
MTBF | 100,000 hrs | 100,000 hrs |
Fan weight | 198 g | 200 g |
Package weight Package weight 3-pack | 246 g 690 g | 248 g 692 g |
Cable length | 500 mm | 500 mm |
Cable type | Black sleeved | Black sleeved |
Package dimensions (Including hanging tab) | 202 x 142 x 30 mm 222 x 142 x 80 mm | 202 x 142 x 30 mm 222 x 142 x 80 mm |
Package dimensions (Excluding hanging tab) | 167 x 142 x 30 mm 177 x 142 x 80 mm | 167 x 142 x 30 mm 177 x 142 x 80 mm |
Package contents
Prisma AL-14 | Prisma AL-14 PWM |
Prisma AL-14 140mm fan | Prisma AL-14 PWM 140mm fan |
4 x fan screws | 4 x fan screws |
Prisma AL-14 3P | Prisma AL-14 PWM 3P |
3 x Prisma AL-14 140mm fans | 3 x Prisma AL-14 PWM 140mm fans |
12 x fan screws | 12 x fan screws |
| Generell | |
| Hersteller: | Fractal Design |
| Waren-Nr.: | 2721888 |
| Modell: | FD-FAN-PRI-AL14-PWM-3P |
| EAN: | 7340172701651 |
| Zum Hersteller:: | www.fractal-design.com/home/product/case... |
| Produktbeschreibung: | Fractal Design Prisma AL-14 - Gehäuselüfter |
| Produkttyp: | Gehäuselüfter |
| Packungsmenge: | 3 (Spezifikationen gelten für einen Artikel) |
| Packungsinhalt: | 4 Lüfterschrauben |
| Farbe: | Schwarz, Weiß, halb transparent |
| Lüfterdurchmesser: | 140 mm |
| Gebläsehöhe: | 25 mm |
| Lüfterlager: | Langlebiges Gleitlager |
| Drehgeschwindigkeit: | 500 - 1700 U/min |
| Luftstrom: | 176,44 m³/h (103,85 CFM) |
| Geräuschpegel: | 34.1 dBA |
| Netzanschluss: | Lüfteranschluss, 4-polig |
| Nennspannung: | 12 V |
| Merkmale: | Stolperdraht Technologie, adressierbares RGB |
| Abmessungen (Breite x Tiefe x Höhe): | 14 cm x 14 cm x 2.5 cm |
| Gewicht: | 200 g |
| Allgemein | |
| Packungsmenge: | 3 (Spezifikationen gelten für einen Artikel) |
| Produkttyp: | Gehäuselüfter |
| Packungsinhalt: | 4 Lüfterschrauben |
| Breite: | 14 cm |
| Tiefe: | 14 cm |
| Höhe: | 2.5 cm |
| Gewicht: | 200 g |
| Farbe: | Schwarz, Weiß, halb transparent |
| Kühlkörper und Lüfter | |
| Lüfterdurchmesser: | 140 mm |
| Gebläsehöhe: | 25 mm |
| Lüfterlager: | Langlebiges Gleitlager |
| Drehgeschwindigkeit: | 500 - 1700 U/min |
| Luftstrom: | 176,44 m³/h (103,85 CFM) |
| Luftdruck: | 2.38 mm |
| Geräuschpegel: | 34.1 dBA |
| Netzanschluss: | Lüfteranschluss, 4-polig |
| Nennspannung: | 12 V |
| Startspannung: | 7 V |
| Nennstrom: | 0.3 A |
| Energieverbrauch: | 2.16 W |
| Kabellänge: | 50 cm |
| Merkmale: | Stolperdraht Technologie, adressierbares RGB |
